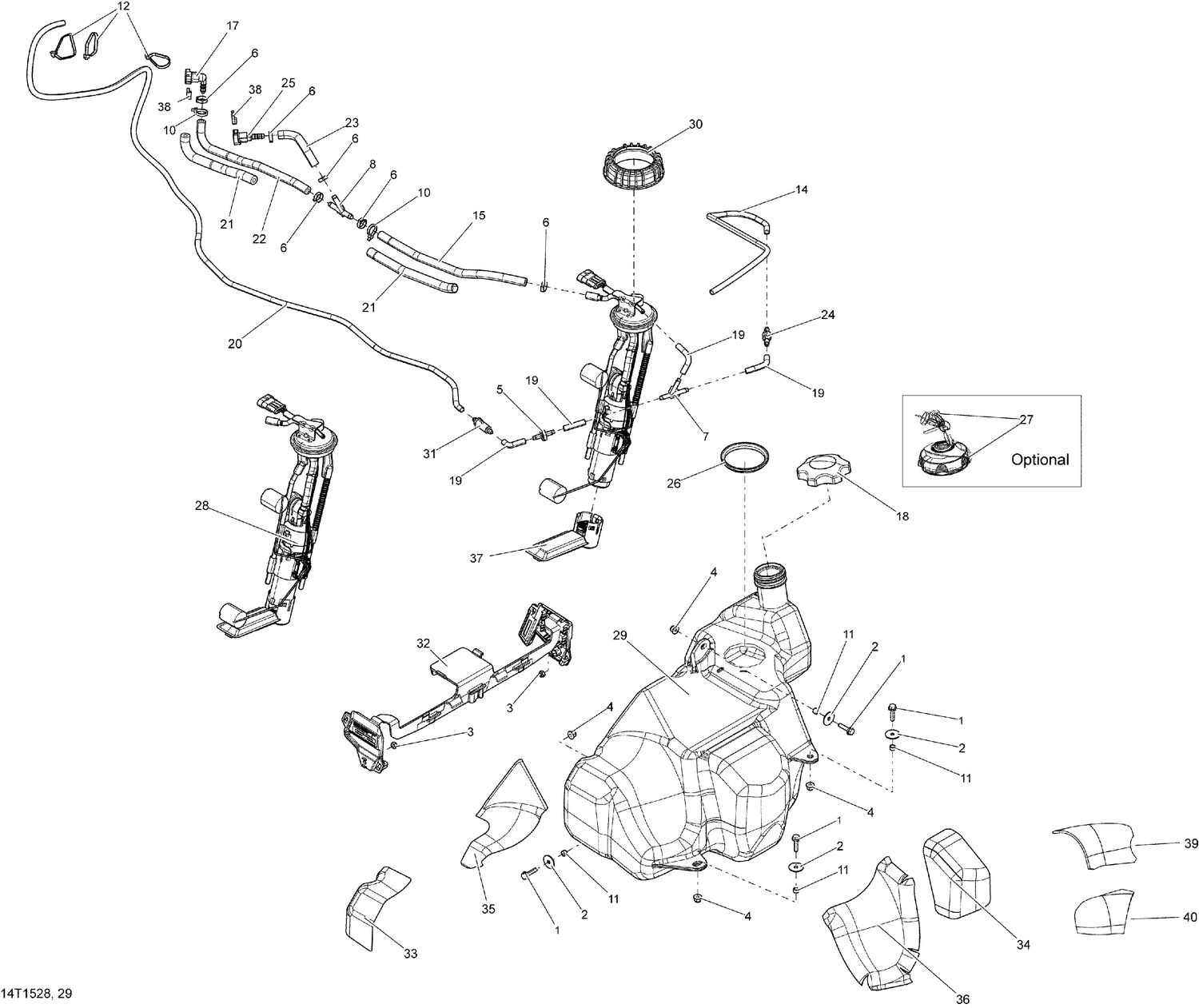

02- Fuel System _14t1529 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Washer
224060251
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
Y-Fitting, 5/16''
293710136
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Bushing
293900104
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#14
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Quick Fitting 45° Ass'y
709000627
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Fuel Tank Cap
513033025
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Unavailable |
|||
|
#20
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Unavailable |
|||
|
#21
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Unavailable |
|||
|
#23
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Unavailable |
|||
|
#24
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Quick Fitting 45° Ass'y
709000627
|
$16.49 | ||
|
Unavailable |
|||
|
#26
Seal
709000208
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Locking Cap Tank
860200387
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Fuel Pump
709000287
Superseded by 709001517
|
$340.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Fuel Tank Ass'y
709000310
Superseded by 709000799
|
|||
|
Available to order. Add to View Price |
|||
|
#30
Fuel Pump Module Nut
709000328
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
Filter
709000330
|
$7.79 | ||
|
Unavailable |
|||
|
#32
Hose Support Ass'y
709000359
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
Heat Reflective Sheet
709000381
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Heat Reflective Sheet
709000382
Superseded by 709001071
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Heat Reflective Sheet
709000387
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
Heat Reflective Sheet
709000388
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#37
Fuel Pre-Filter Kit
709000389
|
$79.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Padlock with Key
707000666
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Heat shield
709000527
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Heat shield
709000528
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
