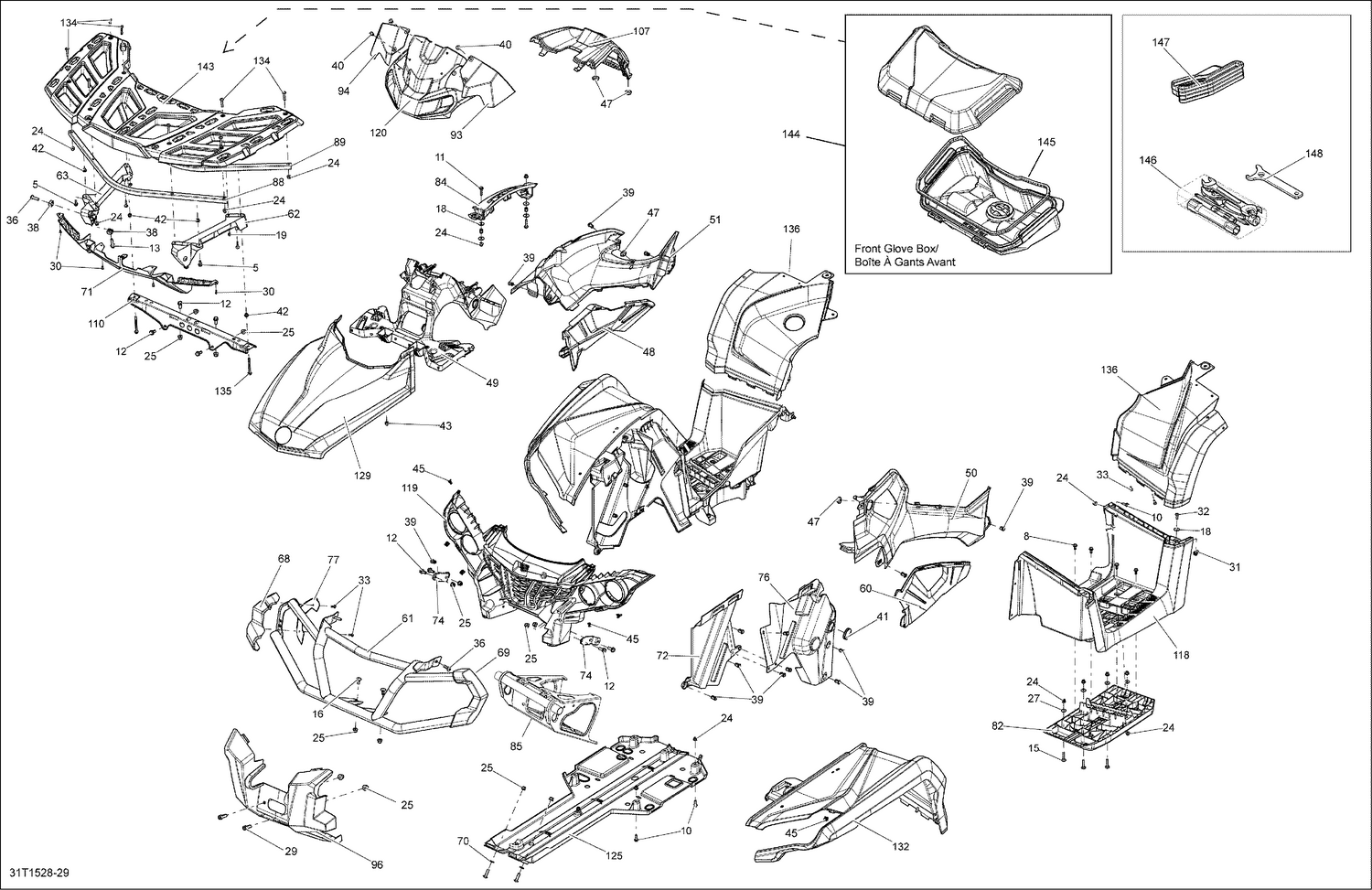

09- Body And Accessories, Front View _31t1529 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#5
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Flange Screw M6 X 16
207661684
Superseded by 207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hex. Flange Screw M6 X 20
207662084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Flange Screw M6 X 30, Scotch Grip
207663034
Superseded by 207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Hex. Flange Screw M8 X 35
207683534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
Carriage Bolt M6 X 35
207763584
Superseded by 207763554
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#29
Hex. Screw M8 X 20
236282084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Screw K40 X 10
241140060
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
Torx Screw M6 X 20
250000128
Superseded by 250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#36
Torx Screw M8 X 30
250000544
Superseded by 250000886
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#38
Elastic Nut Housing M8
269501943
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#39
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#41
Rubber Cover
293250242
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#43
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#45
Edge Clip
517302785
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Grommet
705003264
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#48
Engine Cover
705003444
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
Dash Support Kit
715001552
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Console Support Ass'y
715002245
Superseded by 715006101
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Yellow, LH Lateral Panel
705003446
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PANEL_BODY LH B-005 - Call your local BRP dealership
705005238
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Quarry Gray LH Lateral Panel
705007530
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Yellow, RH Lateral Panel
705009019
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
PANEL_BODY RH B-365 - Call your local BRP dealership
705009116
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
PANEL_BODY RH B-005 - Call your local BRP dealership
705009118
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Deflector_Body Panel Kit
705004147
Superseded by 715007008
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
Front Bumper
705005018
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
LH Support Luggage Rack Ass'y
705006700
Superseded by 705011553
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
RH Support Luggage Rack Ass'y
705006701
Superseded by 705011555
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#68
Cap (Front LH) (Rear RH)
705004409
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#69
Cap (Front RH) (Rear LH)
705004410
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#70
Ring
705004497
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#71
Lugage Rack Moulding
705004523
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
RH Front Inner Fender
705004558
Superseded by 705011463
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
LH Front Wheel Arch Protector
705004557
Superseded by 705017001
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#74
Lower Fender Support
705004565
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#76
RH Rear Inner Fender
705004587
Superseded by 705011462
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
LH Rear Inner Fender
705004588
Superseded by 705013111
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
Bracket Cover
705004987
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#82
LH Structural Footboard
705005254
Superseded by 705011540
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
RH Structural Footboard
705005253
Superseded by 705011542
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
Shifter Gate
705005257
Superseded by 705011544
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Front Bumper Support
705004165
Superseded by 705016893
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
Sectional Bent Tube
705005469
Superseded by 705016640
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
Bent Sectional Tube
705005470
Superseded by 705016092
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#93
LH Air Deflector
705006134
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
RH Air Deflector
705006135
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#96
Front Guard Plate
705006299
|
$51.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#107
Dash Kit
715001765
Superseded by 715006098
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Cargo Rack Center Support
705006812
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#118
LH Step
705007040
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#118
RH Step
705007039
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#119
Fascia
705007041
Superseded by 705012822
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Gauge Support
705007095
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#125
Protective Plate Kit
705007553
Superseded by 715002374
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#129
YELLOW HOOD KIT - Call your local BRP dealership
715002777
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#129
Yellow Hood Kit
715002779
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#129
CAMO HOOD KIT - Call your local BRP dealership
715002774
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#129
CAMO Hood Kit
715002776
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#129
GREY HOOD KIT - Call your local BRP dealership
715002780
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#129
Quarry Gray Hood Kit
715002782
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
YELLOW LH FRONT FENDER KIT - Call your local BRP dealership
715002743
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
YELLOW LH FRONT FENDER KIT - Call your local BRP dealership
715002745
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
CAMO LH FRONT FENDER KIT - Call your local BRP dealership
715002739
|
$789.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
CAMO LH FRONT FENDER KIT - Call your local BRP dealership
715002741
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
QUARRY GRAY LH FRONT FENDER KIT - Call your local BRP dealership
715002746
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
Quarry Gray LH Front Fender Kit
715002749
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
Yellow RH Front Fender Kit
715001510
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
Yellow RH Front Fender Kit
715002208
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
CAMO RH FRONT FENDER KIT - Call your local BRP dealership
715001516
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
CAMO RH FRONT FENDER KIT - Call your local BRP dealership
715002753
|
$709.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
Grey RH Front Fender Kit
715002209
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
Grey RH Front Fender Kit
715002211
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#134
Black, Torx Screw M6 X 35
250000646
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#135
Hex. Flange Screw M6x70, Scotch Grip
207567044
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#136
GREY LH REAR FENDER - Call your local BRP dealership
715002760
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
Grey LH Rear Fender
715002762
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
YELLOW LH REAR FENDER - Call your local BRP dealership
715002757
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
YELLOW LH REAR FENDER - Call your local BRP dealership
715002759
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
CAMO-LH REAR FENDER - Call your local BRP dealership
715002754
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
CAMO-LH Rear Fender
715002756
|
$659.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
Grey RH Rear Fender
715002770
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
Grey RH Rear Fender
715002771
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
Yellow RH Rear Fender
715002772
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
YELLOW RH REAR FENDER - Call your local BRP dealership
715002773
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
CAMO-RH REAR FENDER - Call your local BRP dealership
715002768
Superseded by 715002769
|
$659.99 | ||
|
Available to order. Add to View Price |
|||
|
#136
CAMO-RH REAR FENDER - Call your local BRP dealership
715002769
|
$659.99 | ||
|
Unavailable |
|||
|
#143
Luggage Rack Kit
715001852
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#143
Rack Kit
715002240
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#144
Box Ass'y
708200408
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#145
Was 715900411 Neoprene Seal
219704452
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#146
Tool Kit
704700148
Superseded by 704700162
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#147
Remote Control
710002270
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#148
Adjustment Wrench
529000035
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
