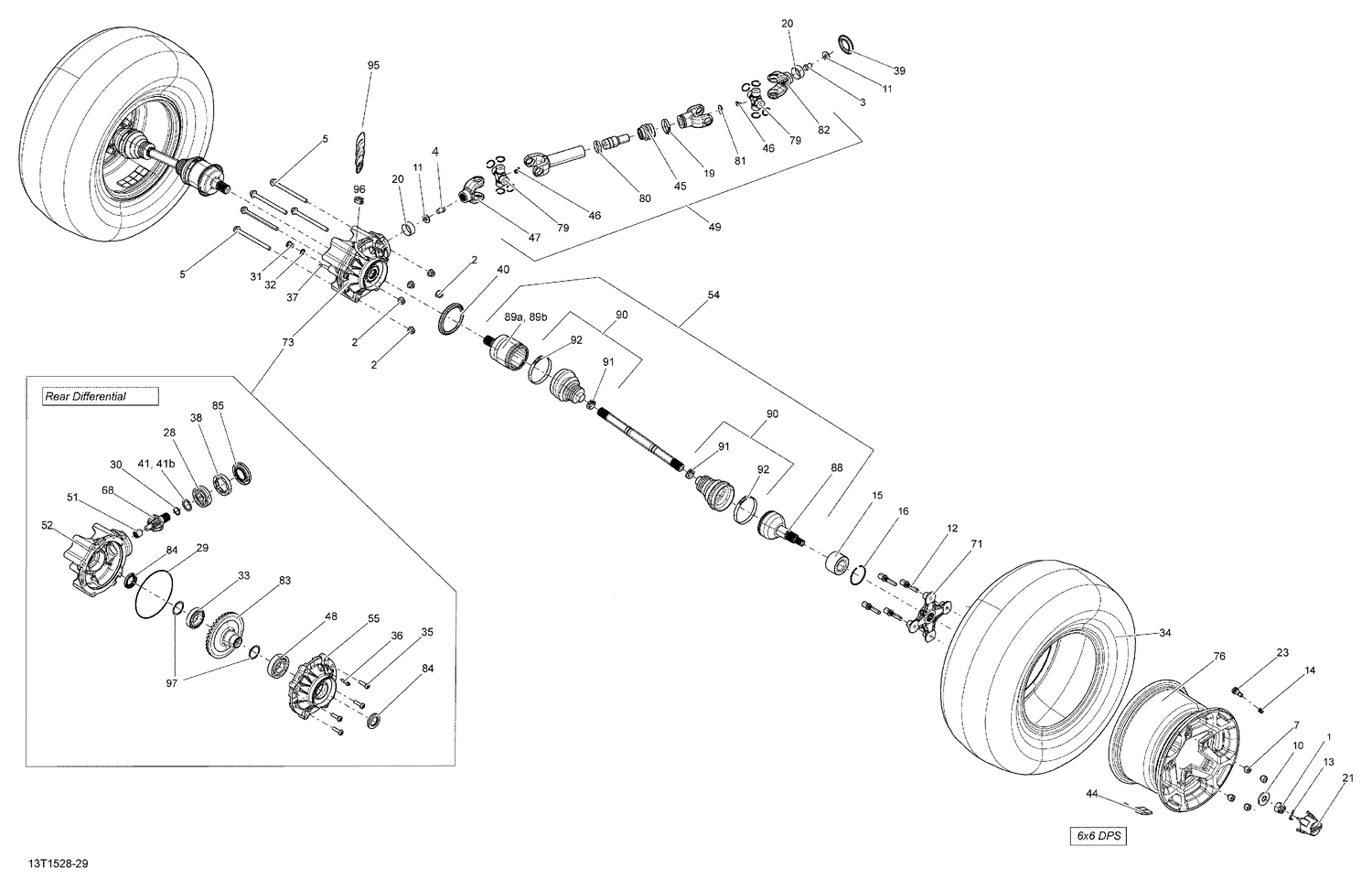

08- Drive System, Rear _13t1529 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Castellated Nut M18
250100047
Superseded by 232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex Flange Screw M12 X 16
250000359
Superseded by 250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M10 X 135
250000508
Superseded by 250001041
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
Black, Wheel Nut M10 X 1.25
250100100
Superseded by 250100184
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
Chrome Wheel Nut M10 X 1.25
250100082
Superseded by 250100185
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
Conical Spring Washer M18
250200049
Superseded by 250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Wheel Stud
250300048
Superseded by 250300643
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
Cotter Pin
250400036
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Valve Cap
293000110
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
Ball Bearing
293350040
Superseded by 293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#19
Oetiker Gear Clamp 44.0MM
293650138
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
Wear Ring
705400036
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Wheel Cap
705400928
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Rim Valve With Cap
705400193
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Ball Bearing
705500260
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Seal
705500265
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-Ring
705500267
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Ball Bearing
705500749
Superseded by 705502737
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Tire
705501767
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Tire
705501769
|
$169.99 | ||
|
Unavailable |
|||
|
#35
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership
205483046
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#36
VENT VALVE - Call your local BRP dealership
705500893
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Fill Level Plug
705500504
|
$10.99 | ||
|
Unavailable |
|||
|
#38
Nut
705400661
Superseded by 705401603
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
Protector
705501123
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
Wear Ring
705501124
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#41
Pinion Gear Shim
705501162
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#41b
Pinion Gear Shim 1.67 mm
703500049
Superseded by 705502061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
1/2 Oz Weight
219704465
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#45
Rubber Boot
715900118
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#46
Grease Fitting
715900184
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#47
Fixe Yoke
715900296
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Ball Bearing
705501389
Superseded by 705502738
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
Shaft Ass'y Kit
705501407
Superseded by 703500987
|
$412.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Needle Bearing
705501408
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Rear Differential Housing RH
705501919
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
Rear - Premium CV Axle
705501486
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
Rear - Premium CV Axle
705501485
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
Rear - Premium CV Axle
705501486
|
$243.99 | ||
|
Unavailable |
|||
|
#54
Rear - Premium CV Axle
705501485
|
$243.99 | ||
|
Unavailable |
|||
|
#55
Rear Differential Housing LH
705501973
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
PINION 10 TOOTH - Call your local BRP dealership
705501571
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Wheel Hub Ass'y
705501716
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
Rear Drive Unit Ass'y
705501916
|
|||
|
Available to order. Add to View Price |
|||
|
#76
Silver Rear Rim
705501669
Superseded by 705501460
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#76
Black, Rear Rim
705501675
Superseded by 705501493
|
$190.49 | ||
|
Unavailable |
|||
|
#76
Black, Rim
705501856
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
Universal Joint
715900270
|
|||
|
Available to order. Add to View Price |
|||
|
#80
Crimp Clamp
509000045
Superseded by 293650333
|
$4.49 | ||
|
Unavailable |
|||
|
#81
COVER - Call your local BRP dealership
715900187
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#82
Joint
715900272
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
Gear, 36 Tooth
705501397
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
Oil Seal
705501996
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Oil Seal
705401481
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#88
JOINT_CV EXT - Call your local BRP dealership
705501776
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#89a
PLUNGING JOINT - Call your local BRP dealership
705501780
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#89b
Circlip
705501781
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#90
Boot Kit
705501777
Superseded by 705501864
|
$42.49 | ||
|
Unavailable |
|||
|
#91
Oetiker Clamp, 27.3 mm
715900242
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#92
Oetiker Clamp, 82.1 mm
715900241
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
Rubber Bellow
705400352
Superseded by 705400552
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#96
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#97
Differential Shim 0.02 mm
703500548
Superseded by 705502060
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
