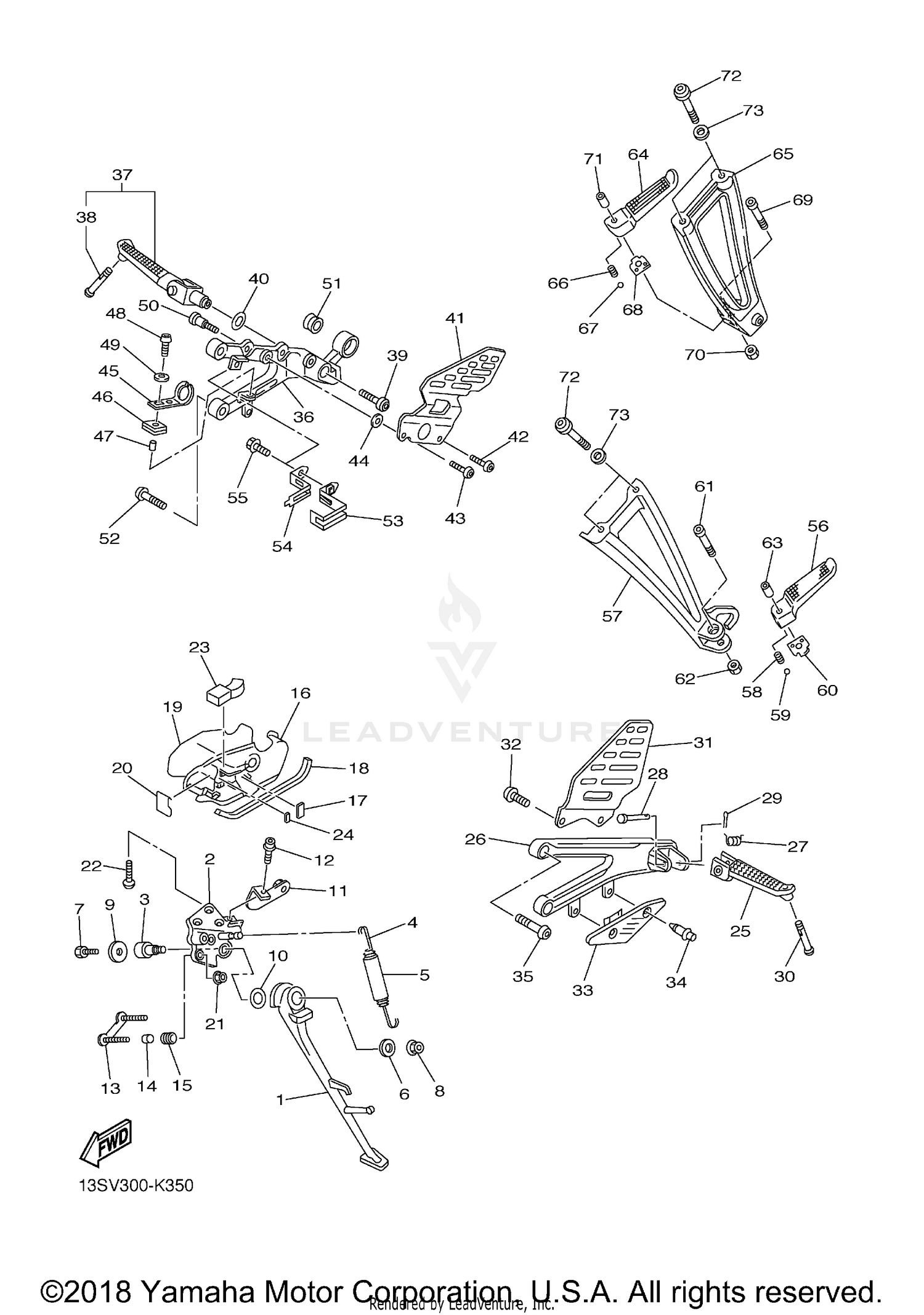

2015 Yamaha YZF R6 STAND FOOTREST OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Seat
+
Item MSRP Qty
#1 STAND, SIDE
2C0-27311-10-00
$186.99
Available: Ships in 7-12 days.
Add to View Price
#2 BRACKET, SIDE STAND
2C0-27321-10-00
$317.99
Available: Ships in 7-12 days.
Add to View Price
#3 GUIDE, SIDE STAND
2C0-27351-00-00
$45.99
Available: Ships in 7-12 days.
Add to View Price
#4 SPRING, TENSION
90506-18008-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#5 HOSE (L60)
90445-19002-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#6 WASHER, PLATE
90201-10035-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#7 BOLT
90101-08662-00
Superseded by 97017-08020-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 NUT, S/L FLANGE
95602-10200-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 WASHER, PLATE
90201-08050-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#10 WASHER, PLATE
90201-146F9-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#11 BRACKET 3
13S-2836F-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#12 BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#13 BRACKET 1
2C0-27263-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#14 COLLAR
90387-05025-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#15 GROMMET
90480-11006-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#16 COVER 1
2C0-27453-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#17 DAMPER, FOOTREST
2C0-27414-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#18 PLATE, FOOTREST
2C0-27415-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#19 SEAL 1
2C0-28428-00-00
$30.99
Available: Ships in 7-12 days.
Add to View Price
#20 SEAL 2
2C0-28429-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#21 NUT, U FLANGE
90185-05009-00
Superseded by 95607-05200-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#22 BOLT, BUTTON HEAD
90111-08065-00
Superseded by 92012-08030-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#23 DAMPER 3
2C0-28425-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#24 DAMPER, RUBBER 1
2C0-21485-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#25 FOOTREST
5SL-27451-00-00
Superseded by 2C0-27451-00-00
$45.99
In Stock: Ready to ship.
Add to View Price
#26 BRACKET 2
2C0-27442-10-00
$82.99
Available: Ships in 7-12 days.
Add to View Price
#27 SPRING, TORSION
90508-18134-00
$6.49
In Stock: Ready to ship.
Add to View Price
#28 PIN
90240-08084-00
Superseded by 91701-08038-00
$3.30
In Stock: Ready to ship.
Add to View Price
#29 PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#30 BOLT
90109-086F8-00
Superseded by 90109-08225-00
$6.49
In Stock: Ready to ship.
Add to View Price
#31 PLATE 1
2C0-27445-10-00
$75.99
Available: Ships in 7-12 days.
Add to View Price
#32 BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
$5.99
In Stock: Ready to ship.
Add to View Price
#33 PROTECTOR
2C0-27491-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#34 RIVET
90269-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 BOLT
90109-085G6-00
$2.15
Available: Ships in 7-12 days.
Add to View Price
#36 BRACKET 3
2C0-27443-10-00
$116.99
Available: Ships in 7-12 days.
Add to View Price
#37 FRONT FOOTREST ASSY (RIGHT)
2C0-27420-10-00
$80.99
Available: Ships in 7-12 days.
Add to View Price
#38 BOLT
90109-086F8-00
Superseded by 90109-08225-00
$6.49
Unavailable
#39 BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#40 WASHER, CLAW
90214-13002-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#41 PLATE 2
13S-27446-10-00
$89.99
Available: Ships in 7-12 days.
Add to View Price
#42 BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
$5.99
Unavailable
#43 BOLT
90111-06067-00
Superseded by 90111-06046-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#44 COLLAR
90387-06215-00
$4.25
Available: Ships in 7-12 days.
Add to View Price
#45 STAY, STOP SWITCH
13S-2144G-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#46 GROMMET
90480-12607-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#47 COLLAR
90387-06023-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#48 BOLT, BUTTON HEAD
92017-06016-00
$6.49
In Stock: Ready to ship.
Add to View Price
#49 WASHER PLAIN
90201-06380-00
$1.10
In Stock: Ready to ship.
Add to View Price
#50 BOLT
90109-066F0-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#51 DAMPER, MUFFLER
2C0-14747-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#52 BOLT
90109-085G6-00
$2.15
Unavailable
#53 BRACKET 8
2C0-2116K-00-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#54 BRACKET 9
2C0-2116L-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#55 BOLT, FLANGE (SMALL HEAD)
95024-06012-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#56 FOOTREST, REAR 1
5JJ-27431-10-00
$63.99
Available: Ships in 7-12 days.
Add to View Price
#57 BRACKET 4
2C0-2741L-10-00
Superseded by 2C0-2741L-11-00
$77.99
Available: Ships in 7-12 days.
Add to View Price
#58 SPRING, COMPRESSION
90501-12743-00
$3.30
In Stock: Ready to ship.
Add to View Price
#59 BALL
93501-04011-00
$6.49
In Stock: Ready to ship.
Add to View Price
#60 WASHER, SPECIAL
5JJ-27437-01-00
$5.49
In Stock: Ready to ship.
Add to View Price
#61 BOLT, HEXAGON SOCKET HEAD
91312-06035-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#62 NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
$6.49
In Stock: Ready to ship.
Add to View Price
#63 COLLAR
90387-06697-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#64 FOOTREST, REAR 2
5JJ-27441-10-00
$61.99
Available: Ships in 7-12 days.
Add to View Price
#65 BRACKET 5
2C0-2742L-10-00
Superseded by 2C0-2742L-11-00
$94.99
Available: Ships in 7-12 days.
Add to View Price
#66 SPRING, COMPRESSION
90501-12743-00
$3.30
Unavailable
#67 BALL
93501-04011-00
$6.49
Unavailable
#68 WASHER, SPECIAL
5JJ-27437-01-00
$5.49
Unavailable
#69 BOLT, HEXAGON SOCKET HEAD
91312-06035-00
$3.30
Unavailable
#70 NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
$6.49
Unavailable
#71 COLLAR
90387-06697-00
$11.99
Unavailable
#72 BOLT, HEXAGON SOCKET HEAD
90111-08066-00
Superseded by 90110-08220-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#73 WASHER, FOOTREST
13S-27417-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
