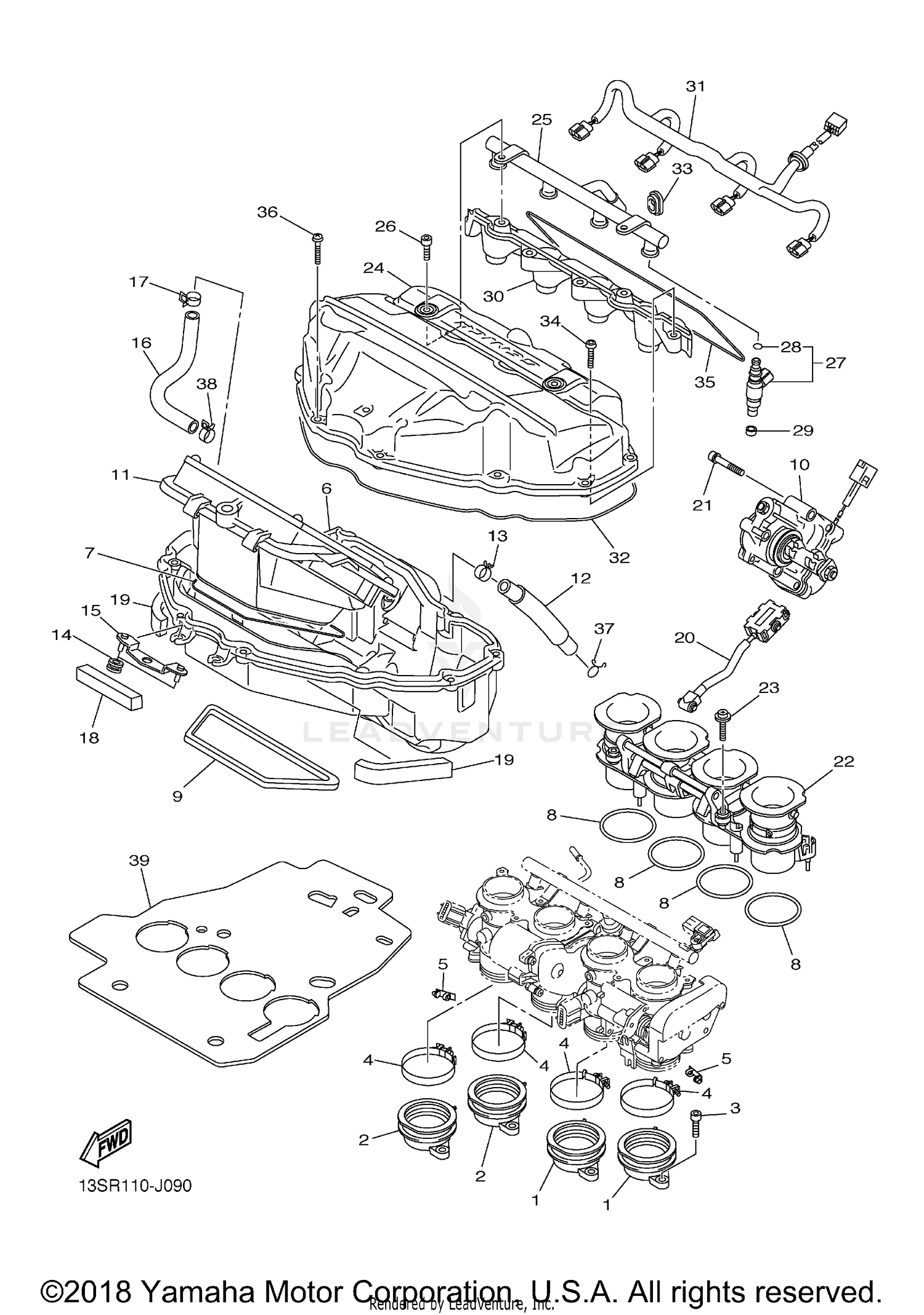

2015 Yamaha YZF R6 INTAKE OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Seat
+
Item MSRP Qty
#1 JOINT, CARBURETOR 1
2C0-13586-00-00
$46.99
Available to order.
Add to View Price
#2 JOINT, CARBURETOR 2
2C0-13596-00-00
$49.99
Available to order.
Add to View Price
#3 BOLT, HEXAGON SOCKET HEAD
91312-06016-00
$6.99
Available to order.
Add to View Price
#4 HOSE CLAMP ASSY
90450-56007-00
$11.99
Available to order.
Add to View Price
#5 COVER 1
2C0-13881-00-00
$6.99
Available to order.
Add to View Price
#6 CASE, AIR CLEANER 1
13S-14411-01-00
$154.99
Available to order.
Add to View Price
#7 SEAL
13S-14462-00-00
$17.99
Available to order.
Add to View Price
#8 SEAL
13S-14457-00-00
$6.99
Available to order.
Add to View Price
#9 SEAL
2C0-14467-00-00
$22.99
Available to order.
Add to View Price
#10 GEARED MOTOR COMP. 2
13S-85870-00-00
Superseded by 13S-85870-01-00
$415.99
Unavailable
#11 ELEMENT ASSY, AIR CLEANER
13S-14450-30-00
Superseded by 13S-14450-31-00
$41.99
Available to order.
Add to View Price
#12 PIPE, BREATHER
13S-15373-00-00
$25.99
In Stock: Ready to ship.
Add to View Price
#13 CLIP
90467-15001-00
$5.49
In Stock: Ready to ship.
Add to View Price
#14 GROMMET
90480-08264-00
$6.99
In Stock: Ready to ship.
Add to View Price
#15 STAY 1
13S-14498-00-00
$22.99
Available to order.
Add to View Price
#16 HOSE, BEND 2
13S-14882-00-00
$16.49
Unavailable
#17 CLIP
90467-180A3-00
$3.99
Available to order.
Add to View Price
#18 DAMPER
2C0-14409-00-00
$1.99
Available to order.
Add to View Price
#19 DAMPER 1
2C0-14425-00-00
$5.99
Available to order.
Add to View Price
#20 SHAFT ASSY
13S-14490-10-00
$118.99
Available to order.
Add to View Price
#21 BOLT, HEXAGON SOCKET HEAD
90110-05047-00
Superseded by 90110-05045-00
$2.10
Available to order.
Add to View Price
#22 JOINT ASSY
13S-1440B-10-00
Superseded by 13S-1440B-11-00
$331.99
Unavailable
#23 SCREW, WITH WASHER
90159-05035-00
$6.99
Available to order.
Add to View Price
#24 CASE, AIR CLEANER 2
13S-14421-11-00
$134.99
Available to order.
Add to View Price
#25 PIPE
13S-13938-00-00
$122.99
Available to order.
Add to View Price
#26 BOLT, BUTTON HEAD
90111-06064-00
Superseded by 92012-06014-00
$6.99
Available to order.
Add to View Price
#27 INJECTOR
13S-13761-00-00
$239.99
Available to order.
Add to View Price
#28 O-RING
5PS-14147-00-00
$11.99
Available to order.
Add to View Price
#29 GASKET
90430-09002-00
$9.99
In Stock: Ready to ship.
Add to View Price
#30 CAP, INJECTOR
13S-13767-01-00
$85.99
Available to order.
Add to View Price
#31 WIRE, SUB-LEAD
13S-82318-00-00
$94.99
Available to order.
Add to View Price
#32 SEAL
2C0-14452-00-00
Superseded by 1VJ-14462-00-00
$16.99
In Stock: Ready to ship.
Add to View Price
#33 GROMMET
13S-14445-00-00
Superseded by 13S-14445-01-00
$2.99
Unavailable
#34 BOLT, BUTTON HEAD
92012-06020-00
$6.99
Available to order.
Add to View Price
#35 SEAL
13S-1446R-00-00
$14.99
Available to order.
Add to View Price
#36 SCREW, BIND
98902-05020-00
$1.55
Available to order.
Add to View Price
#37 CLIP
90467-14015-00
$6.99
In Stock: Ready to ship.
Add to View Price
#38 CLIP
90467-180A3-00
$3.99
Unavailable
#39 PROTECTOR, HEAT
2C0-12682-01-00
$97.99
Available to order.
Add to View Price
