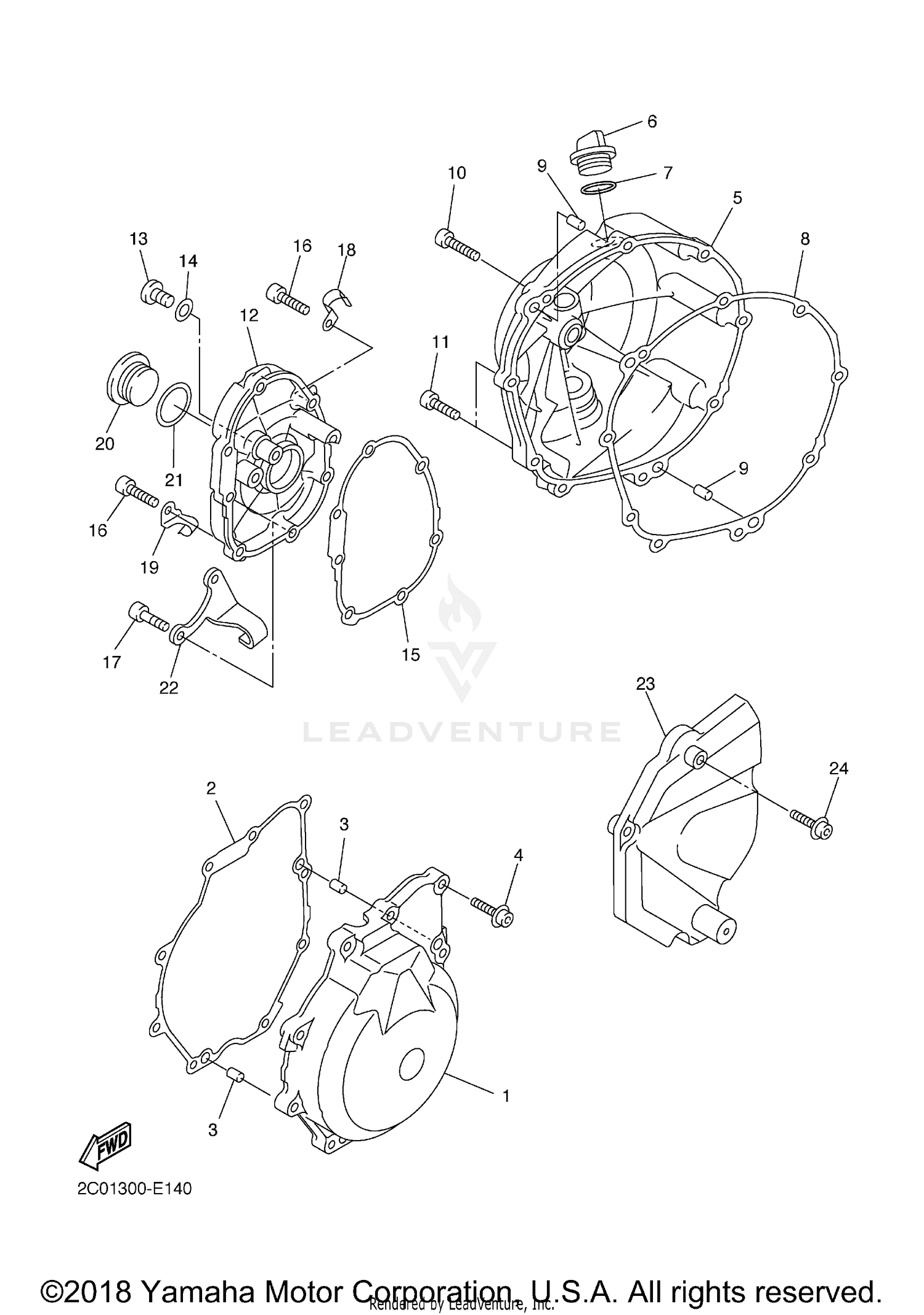

2015 Yamaha YZF R6 CRANKCASE COVER 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
2C0-15411-01-00
|
$142.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
2C0-15451-01-00
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-08012-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06387-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 2
2C0-15421-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, OIL LEVEL
3F9-15362-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-27194-00
Superseded by 93210-27778-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET, CRANKCASE COVER 2
2C0-15461-01-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, DOWEL
93608-17263-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06388-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06389-00
Superseded by 90110-06388-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
COVER, OIL PUMP
2C0-15416-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BUTTON HEAD
92014-08014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-08143-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GASKET, OIL PUMP COVER 1
2C0-15456-01-00
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06396-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06387-00
|
$3.05 | ||
|
Unavailable |
|||
|
#18
CLAMP
90465-08395-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HOSE
2C0-21823-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, STRAIGHT SCREW
90340-32004-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-32172-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOLDER, CLUTCH CABLE
2C0-15441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, CHAIN CASE
2C0-15418-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90110-06060-00
Superseded by 90109-06015-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
