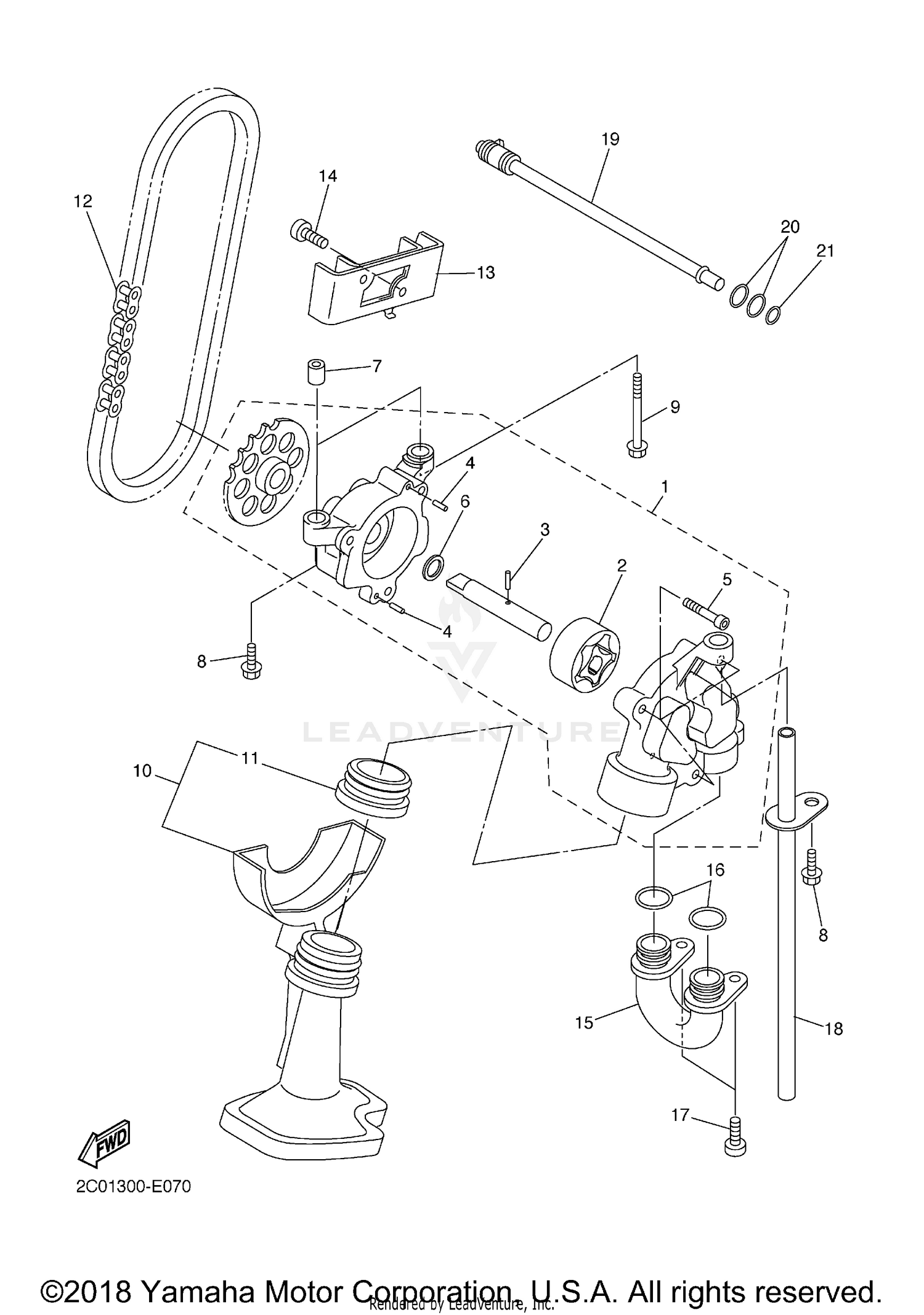

2015 Yamaha YZF R6 OIL PUMP OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Seat
+
Item MSRP Qty
#1 OIL PUMP ASSY
2C0-13300-00-00
$331.99
Available to order.
Add to View Price
#2 ROTOR ASSY 1
4SV-13310-00-00
$43.99
Available to order.
Add to View Price
#3 PIN, DOWEL
93603-17070-00
$3.50
In Stock: Ready to ship.
Add to View Price
#4 PIN, DOWEL
93603-09106-00
$1.90
Available to order.
Add to View Price
#5 BOLT
91312-06025-00
Superseded by 91317-06025-00
$6.99
Available to order.
Add to View Price
#6 WASHER, PLATE
90201-113K2-00
$6.99
Available to order.
Add to View Price
#7 PIN, DOWEL
91808-17032-00
$4.60
Available to order.
Add to View Price
#8 BOLT, FLANGE
95812-06030-00
$6.99
In Stock: Ready to ship.
Add to View Price
#9 BOLT, FLANGE
95812-06080-00
$6.99
Available to order.
Add to View Price
#10 STRAINER HOUSING ASSY
2C0-13410-00-00
$40.99
Available to order.
Add to View Price
#11 SEAL, OIL STRAINER
2C0-13415-00-00
$12.99
Available to order.
Add to View Price
#12 CHAIN
94580-25074-00
$8.99
Available to order.
Add to View Price
#13 HOLDER
2C0-13898-00-00
Superseded by 2C0-13898-01-00
$15.99
Unavailable
#14 BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
$1.10
In Stock: Ready to ship.
Add to View Price
#15 PIPE, OIL 1
2C0-13416-00-00
$74.99
Available to order.
Add to View Price
#16 O-RING
93210-14003-00
$6.99
In Stock: Ready to ship.
Add to View Price
#17 BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
$1.10
Unavailable
#18 PIPE, DELIVERY 1
5EB-13161-00-00
$13.99
Available to order.
Add to View Price
#19 PIPE, DELIVERY 5
2C0-1316E-00-00
$78.99
Available to order.
Add to View Price
#20 O-RING
93210-09165-00
Superseded by 93210-09350-00
$6.99
Available to order.
Add to View Price
#21 O-RING
93210-06667-00
$6.99
In Stock: Ready to ship.
Add to View Price
