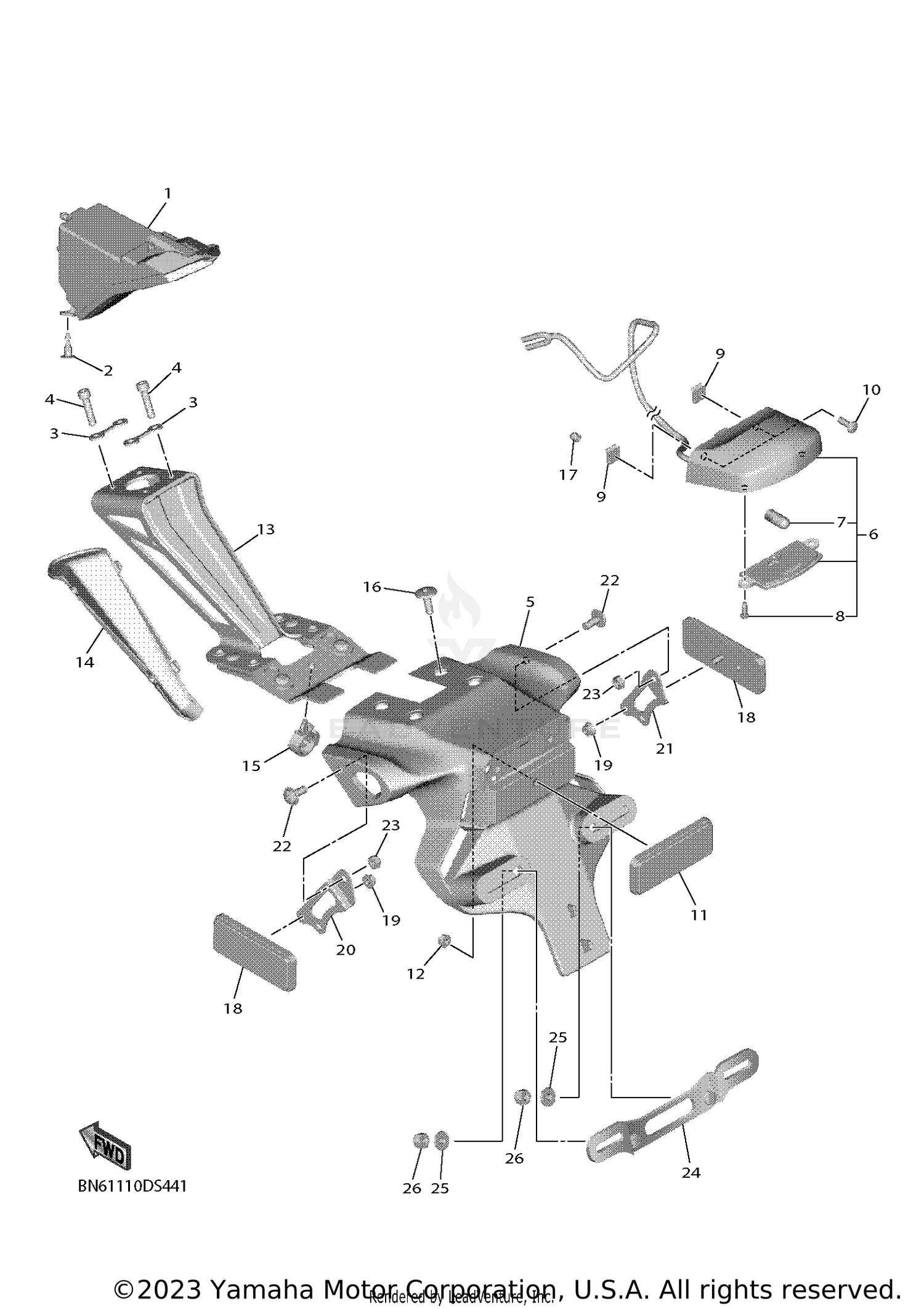

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
2CR-84710-00-00
Superseded by 2CR-84710-01-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPECIAL 1
BN6-21615-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06295-00
Superseded by 91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUARD, MUD
2C0-21629-11-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LICENSE LIGHT UNIT ASSY
5VX-84745-01-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V-5W)
4HC-84744-00-00
Superseded by 4SV-84347-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING
97706-04012-00
Superseded by 97707-40012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPRING
90183-05061-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW, BIND
98902-05014-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
REAR STAY COMP.
BN6-21640-00-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, REAR FENDER 2
BN6-2163E-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-14228-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06182-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, BLIND
5VX-13569-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#19
NUT, WITH WASHER
95702-05500-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BRACKET, REAR STAY
2C0-21688-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, REAR STAY 2
2C0-21689-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, WITH WASHER
90159-06011-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BRACKET, LICENSE
5MT-84751-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
Unavailable |
|||
