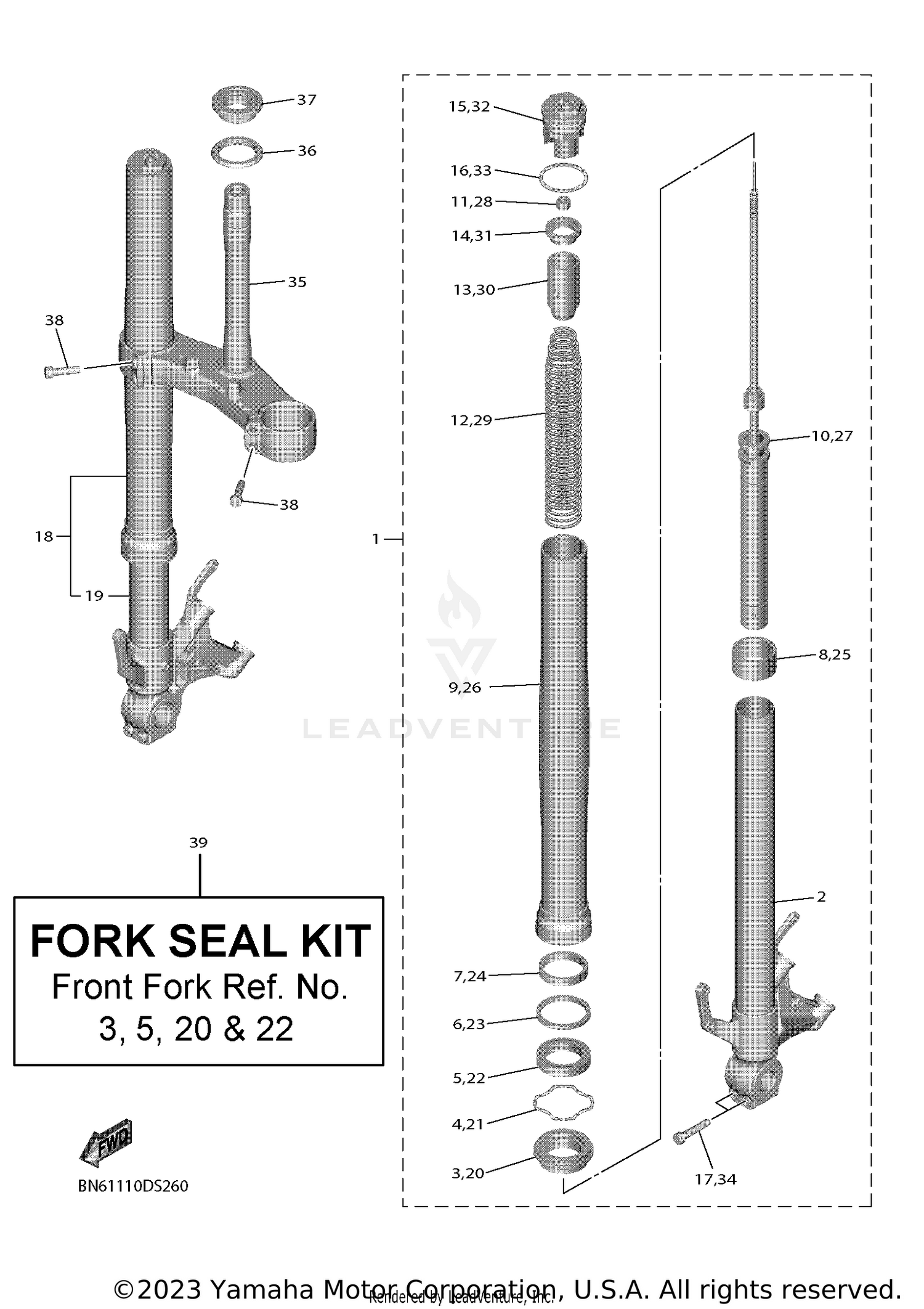

2017 Yamaha YZF R6 FRONT FORK OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Other
+
Seat
+
Item MSRP Qty
#1 FRONT FORK ASSY (L.H)
BN6-23102-00-00
$842.99
Available: Ships in 7-12 days.
Add to View Price
#1 FRONT FORK ASSY (L.H)
BN6-23102-10-00
$1,009.99
Available: Ships in 7-12 days.
Add to View Price
#2 INNER TUBE COMP. 1
2CR-23110-00-00
$309.99
Available: Ships in 7-12 days.
Add to View Price
#3 SEAL, DUST
4PU-23144-00-00
$18.49
In Stock: Ready to ship.
Add to View Price
#4 RING, SNAP
4V4-23153-L0-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 OIL SEAL
4PU-23145-01-00
$20.99
In Stock: Ready to ship.
Add to View Price
#6 WASHER, OIL SEAL
5PW-23146-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#7 METAL, SLIDE 1
2CR-23125-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#8 PISTON, FRONT FORK
2CR-23171-00-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#9 TUBE, OUTER 2
2CR-23136-00-00
$303.99
In Stock: Ready to ship.
Add to View Price
#9 TUBE, OUTER 2
2CR-23136-10-00
$275.99
Available: Ships in 7-12 days.
Add to View Price
#10 CYLINDER COMP., FRONT FORK
BN6-23170-00-00
$319.99
Available: Ships in 7-12 days.
Add to View Price
#11 NUT
3LC-23357-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#12 SPRING, FRONT FORK
BN6-23141-00-00
$30.99
Available: Ships in 7-12 days.
Add to View Price
#13 SPACER
2CR-23118-00-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#14 GUIDE, SPRING
2CR-23117-00-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#15 BOLT, CAP
2CR-23111-10-00
$257.99
Available: Ships in 7-12 days.
Add to View Price
#16 O-RING
39P-23147-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#17 BOLT, HEXAGON SOCKET HEAD
91314-08040-00
$6.49
In Stock: Ready to ship.
Add to View Price
#18 FRONT FORK ASSY (R.H)
BN6-23103-00-00
$1,009.99
Available: Ships in 7-12 days.
Add to View Price
#18 FRONT FORK ASSY (R.H)
BN6-23103-10-00
$1,009.99
Available: Ships in 7-12 days.
Add to View Price
#19 INNER TUBE COMP. 2
2CR-23120-00-00
$309.99
Available: Ships in 7-12 days.
Add to View Price
#20 SEAL, DUST
4PU-23144-00-00
$18.49
Unavailable
#21 RING, SNAP
4V4-23153-L0-00
$6.49
Unavailable
#22 OIL SEAL
4PU-23145-01-00
$20.99
Unavailable
#23 WASHER, OIL SEAL
5PW-23146-00-00
$14.99
Unavailable
#24 METAL, SLIDE 1
2CR-23125-00-00
$9.99
Unavailable
#25 PISTON, FRONT FORK
2CR-23171-00-00
$21.99
Unavailable
#26 TUBE, OUTER 2
2CR-23136-00-00
$303.99
Unavailable
#26 TUBE, OUTER 2
2CR-23136-10-00
$275.99
Unavailable
#27 CYLINDER COMP., FRONT FORK
BN6-23170-00-00
$319.99
Unavailable
#28 NUT
3LC-23357-00-00
$6.49
Unavailable
#29 SPRING, FRONT FORK
BN6-23141-00-00
$30.99
Unavailable
#30 SPACER
2CR-23118-00-00
$11.99
Unavailable
#31 GUIDE, SPRING
2CR-23117-00-00
$11.99
Unavailable
#32 BOLT, CAP
2CR-23111-10-00
$257.99
Unavailable
#33 O-RING
39P-23147-00-00
$6.49
Unavailable
#34 BOLT, HEXAGON SOCKET HEAD
91314-08040-00
$6.49
Unavailable
#35 UNDER BRACKET COMP.
BN6-23340-00-00
$431.99
Available: Ships in 7-12 days.
Add to View Price
#36 SEAL, STEERING
3FV-23462-00-00
$18.49
Available: Ships in 7-12 days.
Add to View Price
#37 BEARING
93399-99957-00
$51.99
Available: Ships in 7-12 days.
Add to View Price
#38 BOLT, HEXAGON SOCKET HEAD
91314-08030-00
$6.49
In Stock: Ready to ship.
Add to View Price
#39 FORK SEAL KIT
4PU-W003B-00-00
$38.99
In Stock: Ready to ship.
Add to View Price
