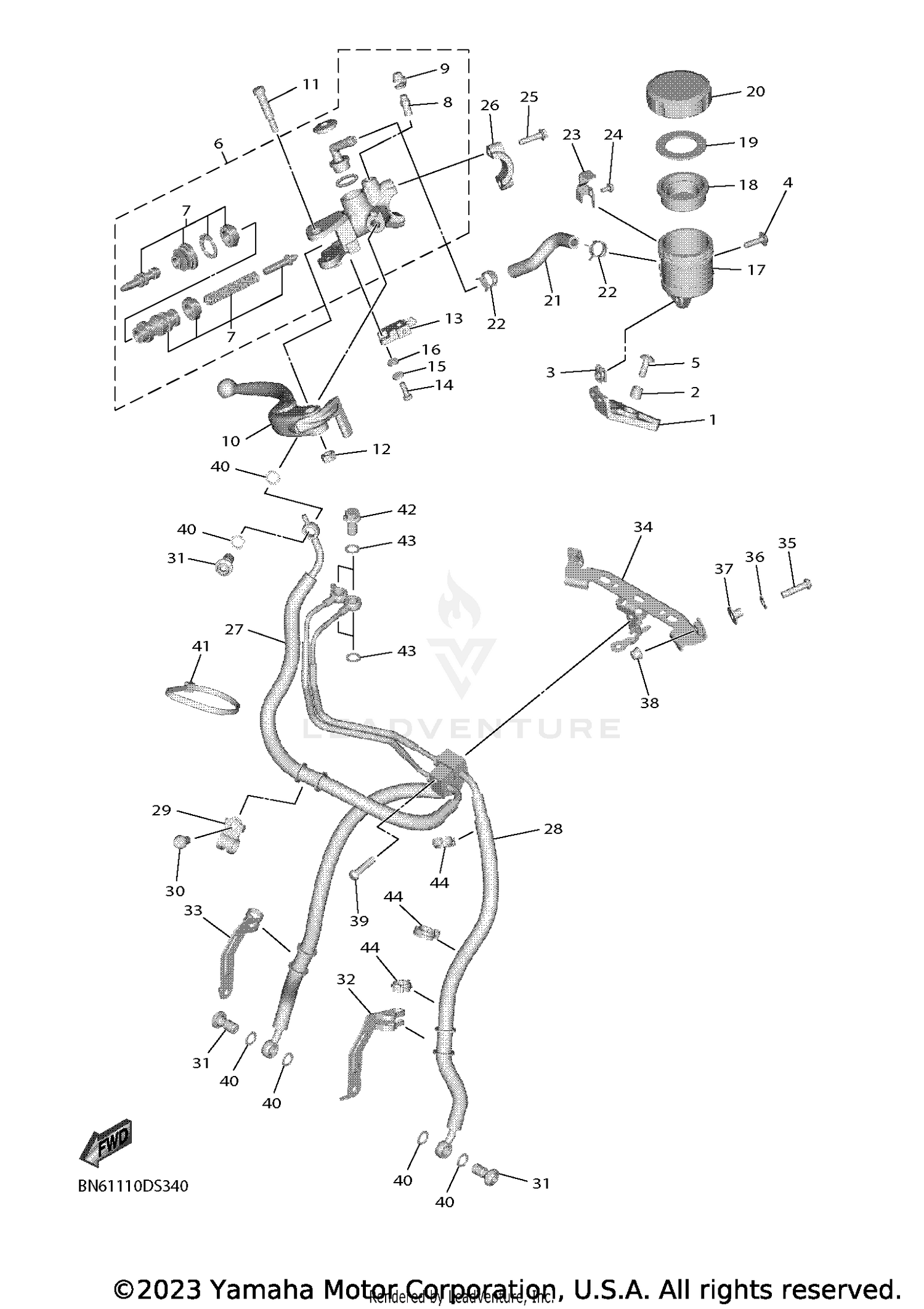

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY
13S-26292-00-00
Superseded by 13S-26292-01-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
COLLAR
90387-06057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT, SPRING
90183-050A0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEX. SOCKET BUTTON
90111-05025-00
Superseded by 90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET BUTTON
90111-06041-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB ASSY 2
2CR-2580A-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER KIT, MASTER
2CR-25807-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
1UY-25824-51-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#10
LEVER 2
2CR-83922-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, LEVER
2CR-2589F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FRONT STOP SWITCH AS
2CR-83980-00-00
Superseded by 2CR-83980-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TANK, RESERVOIR
2CR-25894-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DIAPHRAGM, RESERVOIR
3FV-25854-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, DIAPHRAGM
2CR-25855-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, RESERVOIR
3GM-25852-50-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, RESERVOIR
BN6-25895-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-12085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER
2CR-2589G-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
3GM-2589H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
5EB-26332-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, MASTER CYLINDER
2CR-25867-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRAKE HOSE ASSY
BN6-2584A-01-00
Superseded by BN6-2584A-03-00
|
$171.99 | ||
|
Unavailable |
|||
|
#28
HOSE, BRAKE
BN6-2584B-01-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90461-10005-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOLDER, BRAKE HOSE 1
2CR-25875-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOLDER, BRAKE HOSE 2
2CR-25876-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACKET
BN6-2612E-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, BUTTON HEAD
92017-06025-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLAIN
92902-06200-00
Superseded by 92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-067N5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAP, GREASE NIPPLE
663-45119-00-00
Superseded by 663-45119-01-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, BUTTON HEAD
92012-06025-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
3MA-82591-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, UNION
90401-10052-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET
90430-10005-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
CLAMP
90464-14003-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
