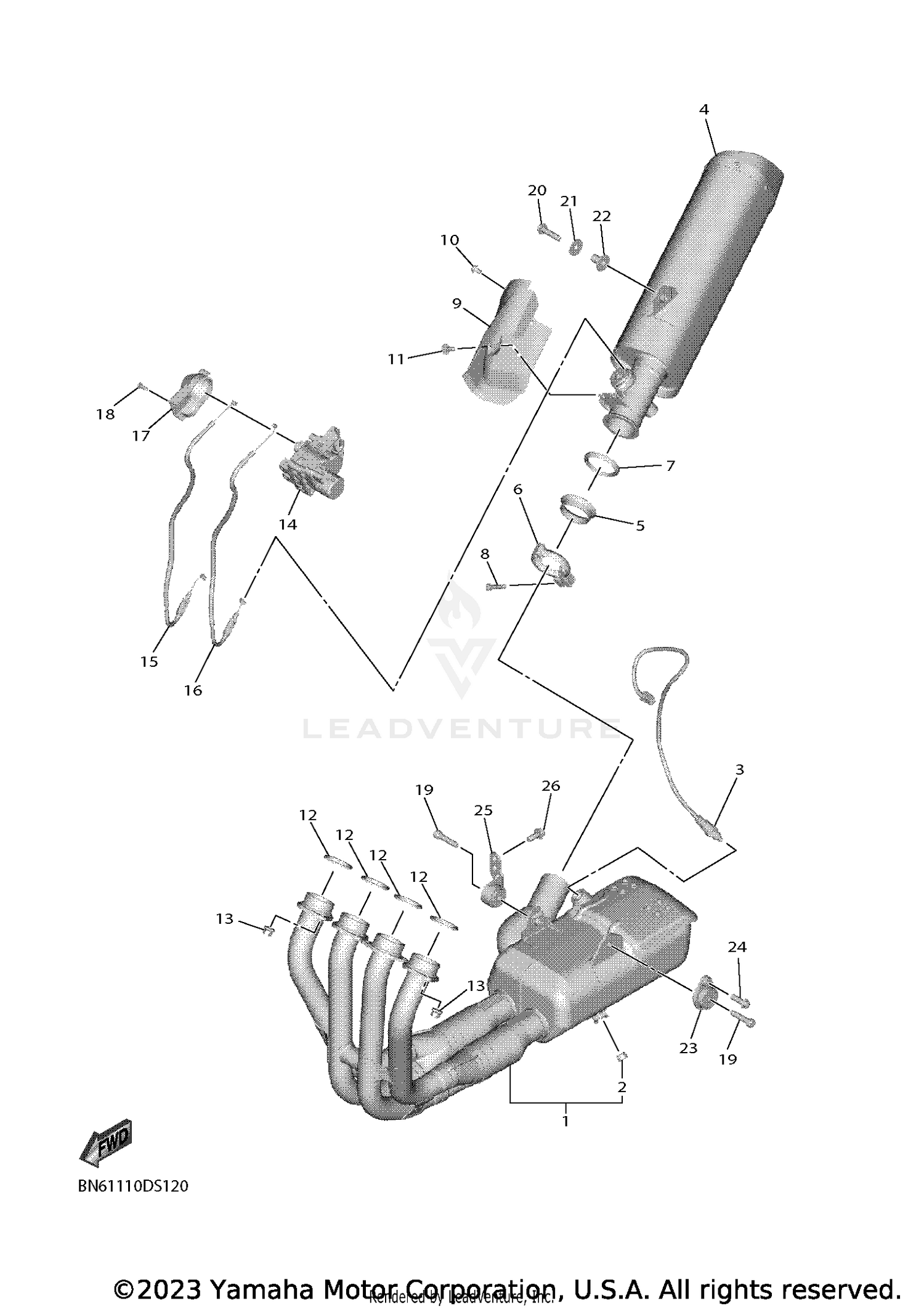

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
13S-14610-30-00
|
$2,032.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, LOCATING 1
4FM-24181-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR, OXYGEN
13S-8592A-00-00
|
$470.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SILENCER, EXHAUST
13S-14753-30-00
|
$1,275.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
2C0-14618-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, MUFFLER
2C0-14725-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EXHAUST PIPE
2C0-14623-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, MUFFLER 1
13S-14718-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEX. SOCKET BUT
90111-06099-00
Superseded by 90111-06100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06071-00
Superseded by 90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-08410-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SERVO MOTOR ASSY
2CR-85820-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, PULLEY 1
BN6-1133E-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, PULLEY 2
BN6-1133F-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, SERVO MOTOR
5VY-85829-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING
97702-50514-00
Superseded by 97780-50514-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-08099-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-087G2-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-08021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, MUFFLER 2
13S-21446-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-08054-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, MUFFLER 1
13S-21445-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
90105-08171-00
Superseded by 95812-08020-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
