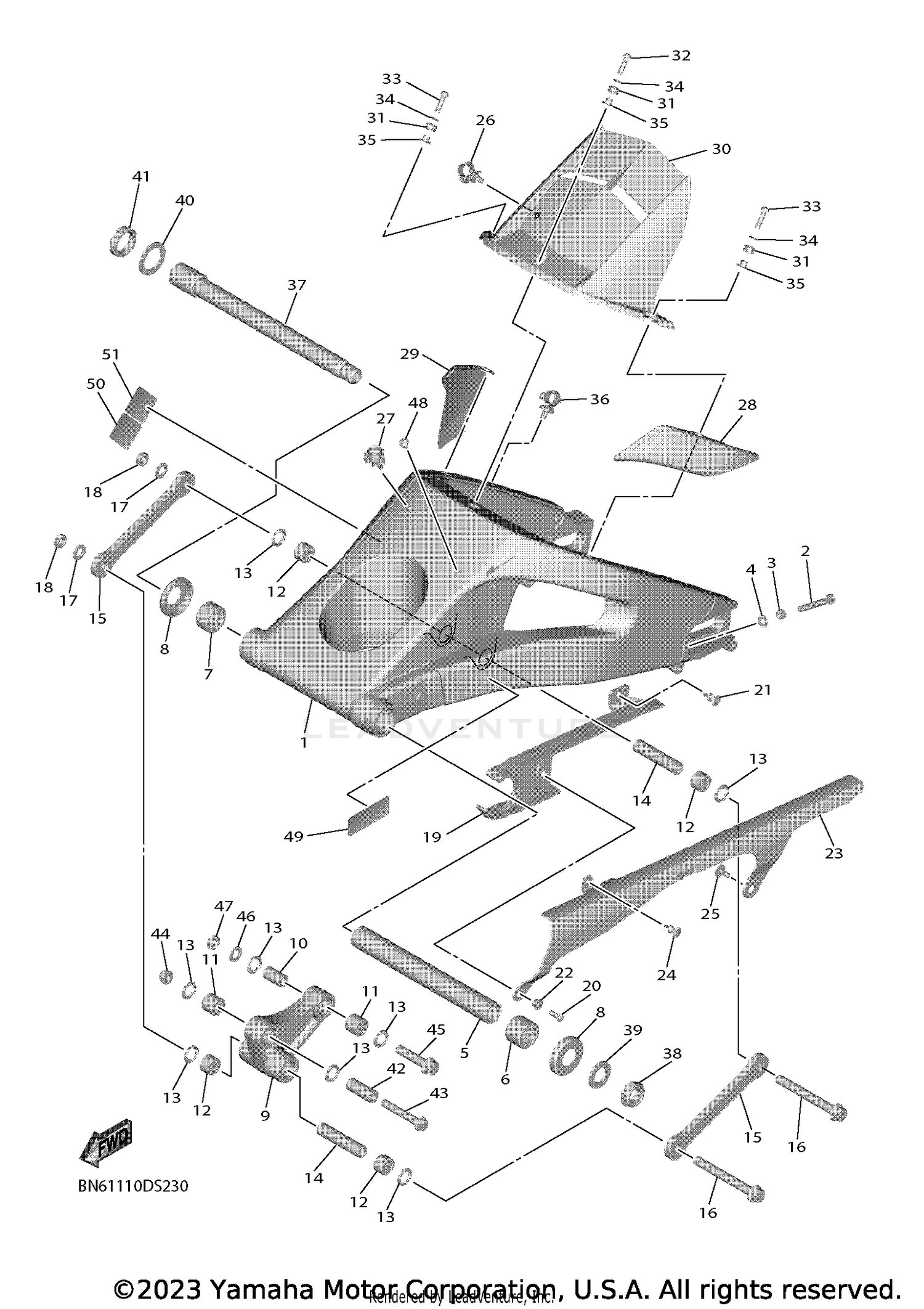

2019 Yamaha YZF R6 REAR ARM OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
BN6-22110-00-00
|
$1,418.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT
90101-08013-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
NUT, HEXAGON
95302-08600-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08057-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BUSH
2C0-22184-00-00
|
$68.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BEARING
93317-330A0-00
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BEARING
93317-330A1-00
|
$23.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, THRUST 1
2C0-22128-00-00
|
$23.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
ARM, RELAY
2C0-2217A-00-00
|
$130.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
COLLAR
90387-127W0-00
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BEARING
93315-31759-00
|
$26.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BEARING
93315-31758-00
|
$27.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
OIL SEAL
93109-17071-00
|
$4.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COLLAR
90387-126Y1-00
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
ARM 1
2C0-2217M-00-00
|
$59.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-12081-00
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$2.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
90185-12011-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SEAL, GUARD
2C0-22151-00-00
|
$50.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92012-06016-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
RIVET
90269-07008-00
|
$2.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COLLAR
90387-062X0-00
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CASE, CHAIN
2C0-22311-00-00
Superseded by 2C0-22311-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-07007-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLAMP
90464-16012-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLAMP
90464-16011-00
|
$4.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
COVER ASSY 1
2C0-228A0-00-00
|
$35.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
COVER ASSY 2
2C0-228B0-00-00
|
$28.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
REAR FENDER COMP.
2C0-21650-10-00
Superseded by 2C0-21650-11-00
|
$30.99 | ||
|
Unavailable |
|||
|
#31
GROMMET
90480-11006-00
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT, BUTTON HEAD
92014-06020-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
BOLT, BUTTON HEAD
92014-06025-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-06016-00
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
COLLAR
90387-06078-00
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
CLAMP
90464-16012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#37
SHAFT, PIVOT
2C0-22141-10-00
|
$120.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
NUT, SELF-LOCKING
90185-22009-00
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-22014-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-33014-00
|
$4.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
NUT
2C0-22252-00-00
|
$20.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
COLLAR
90387-1012B-00
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
BOLT, FLANGE
90105-10211-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
NUT, S/L FLANGE
95602-10200-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
BOLT, FLANGE
90105-12082-00
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$2.20 | ||
|
Unavailable |
|||
|
#47
NUT, SELF-LOCKING
90185-12011-00
|
$6.49 | ||
|
Unavailable |
|||
|
#48
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
LABEL, TIRE
2CR-21668-00-00
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
PLATE, ROUTING
13S-21684-10-00
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
PLATE, ROUTING 2
13S-21686-10-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
