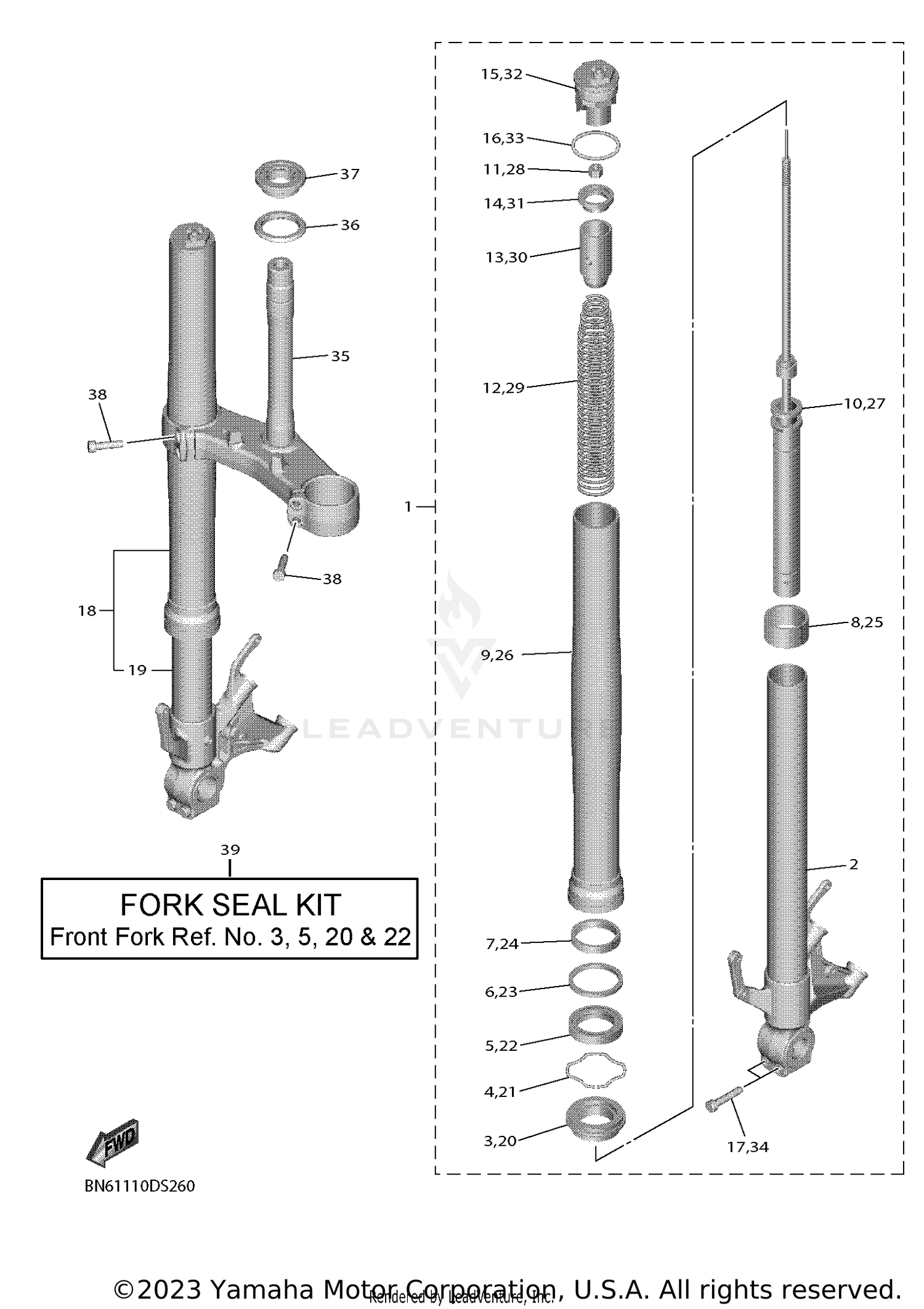

2019 Yamaha YZF R6 FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
BN6-23102-00-00
|
$885.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FRONT FORK ASSY (L.H)
BN6-23102-10-00
|
$1,070.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER TUBE COMP. 1
2CR-23110-00-00
|
$328.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, DUST
4PU-23144-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RING, SNAP
4V4-23153-L0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
4PU-23145-01-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5PW-23146-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
METAL, SLIDE 1
2CR-23125-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON, FRONT FORK
2CR-23171-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, OUTER 2
2CR-23136-00-00
|
$322.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
TUBE, OUTER 2
2CR-23136-10-00
|
$292.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
BN6-23170-00-00
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
3LC-23357-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, FRONT FORK
BN6-23141-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
2CR-23118-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, SPRING
2CR-23117-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
2CR-23111-10-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
39P-23147-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
BN6-23103-00-00
|
$1,070.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
BN6-23103-10-00
|
$1,070.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
INNER TUBE COMP. 2
2CR-23120-00-00
|
$328.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, DUST
4PU-23144-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#21
RING, SNAP
4V4-23153-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
4PU-23145-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#23
WASHER, OIL SEAL
5PW-23146-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#24
METAL, SLIDE 1
2CR-23125-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#25
PISTON, FRONT FORK
2CR-23171-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#26
TUBE, OUTER 2
2CR-23136-00-00
|
$322.99 | ||
|
Unavailable |
|||
|
#26
TUBE, OUTER 2
2CR-23136-10-00
|
$292.99 | ||
|
Unavailable |
|||
|
#27
CYLINDER COMP., FRONT FORK
BN6-23170-00-00
|
$339.99 | ||
|
Unavailable |
|||
|
#28
NUT
3LC-23357-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#29
SPRING, FRONT FORK
BN6-23141-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#30
SPACER
2CR-23118-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#31
GUIDE, SPRING
2CR-23117-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
2CR-23111-10-00
|
$273.99 | ||
|
Unavailable |
|||
|
#33
O-RING
39P-23147-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$6.99 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
BN6-23340-00-00
|
$457.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL, STEERING
3FV-23462-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93399-99957-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
FORK SEAL KIT
4PU-W003B-00-00
|
$40.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
