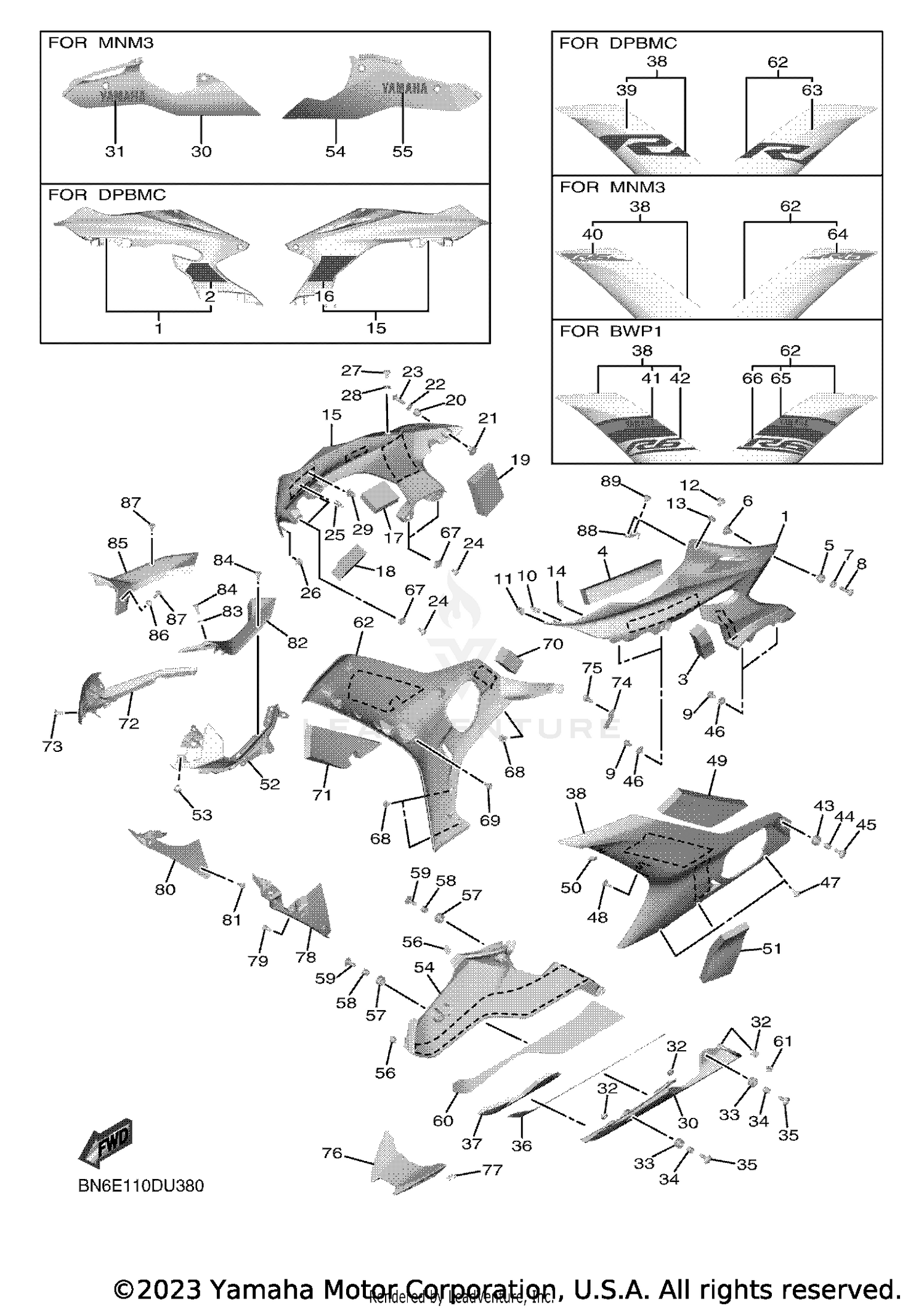

2019 Yamaha YZF R6 COWLING 2 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Other
+
Seat
+
Item MSRP Qty
#1 COVER 7
BN6-2117V-00-P3
$255.99
Available: Ships in 7-12 days.
Add to View Price
#1 COVER ASSY 7
BN6-W217V-30-P1
$268.99
Available: Ships in 7-12 days.
Add to View Price
#1 COVER 7
BN6-2117V-00-P4
$263.99
Available: Ships in 7-12 days.
Add to View Price
#2 GRAPHIC 5
BN6-28398-30-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#3 DAMPER, PLATE
90520-30002-00
$2.20
In Stock: Ready to ship.
Add to View Price
#4 SEAL 12
7CH-22889-00-00
$2.15
In Stock: Ready to ship.
Add to View Price
#5 GROMMET
90480-12613-00
$18.49
Available: Ships in 7-12 days.
Add to View Price
#6 COLLAR
90387-067K8-00
$5.49
In Stock: Ready to ship.
Add to View Price
#7 WASHER, PLATE
90201-07081-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 BOLT, HEX. SOCKET BUTTON
90111-06063-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 NUT, SPRING
90183-060A6-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#11 CLAMP
90464-07018-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#12 SCREW
90149-06298-00
$4.35
In Stock: Ready to ship.
Add to View Price
#13 WASHER, PLATE
90201-060H9-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#14 CLIP
90468-04001-00
$3.35
Available: Ships in 7-12 days.
Add to View Price
#15 COVER 8
BN6-2117W-00-P3
$255.99
Available: Ships in 7-12 days.
Add to View Price
#15 COVER ASSY 8
BN6-W217W-30-P1
$268.99
Available: Ships in 7-12 days.
Add to View Price
#15 COVER 8
BN6-2117W-00-P4
$263.99
Available: Ships in 7-12 days.
Add to View Price
#16 GRAPHIC 6
BN6-28399-30-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#17 DAMPER, PLATE
90520-60001-00
$2.20
In Stock: Ready to ship.
Add to View Price
#18 DAMPER, PLATE
90520-30008-00
$2.20
In Stock: Ready to ship.
Add to View Price
#19 SEAL 26
7CH-2289T-00-00
$1.65
Available: Ships in 7-12 days.
Add to View Price
#20 GROMMET
90480-12613-00
$18.49
Unavailable
#21 COLLAR
90387-067K8-00
$5.49
Unavailable
#22 WASHER, PLATE
90201-07081-00
$6.49
Unavailable
#23 BOLT, HEX. SOCKET BUTTON
90111-06063-00
$6.49
Unavailable
#24 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Unavailable
#25 NUT, SPRING
90183-060A6-00
$6.49
Unavailable
#26 CLAMP
90464-07018-00
$1.10
Unavailable
#27 SCREW
90149-06298-00
$4.35
Unavailable
#28 WASHER, PLATE
90201-060H9-00
$4.35
Unavailable
#29 CLIP
90468-04001-00
$3.35
Unavailable
#30 COVER, UNDER
BN6-28385-00-P1
$111.99
Available: Ships in 7-12 days.
Add to View Price
#30 COVER, UNDER
BN6-28385-00-P2
$106.99
Available: Ships in 7-12 days.
Add to View Price
#30 COVER, UNDER
BN6-28385-00-P3
$139.99
Available: Ships in 7-12 days.
Add to View Price
#31 EMBLEM, YAMAHA
99244-00180-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#32 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
In Stock: Ready to ship.
Add to View Price
#33 GROMMET
90480-14003-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#34 COLLAR
90387-06260-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 BOLT, HEX. SOCKET BUTTON
90111-06040-00
$3.30
In Stock: Ready to ship.
Add to View Price
#36 SEAT 1
BN6-2838G-00-00
$23.99
Available: Ships in 7-12 days.
Add to View Price
#37 DAMPER, LOCATING 1
BN6-2836T-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#38 PANEL ASSY 1
BN6-W283U-40-P3
$227.99
Available: Ships in 7-12 days.
Add to View Price
#38 PANEL ASSY 1
BN6-W283U-70-P1
$246.99
Available: Ships in 7-12 days.
Add to View Price
#38 PANEL ASSY 1
BN6-W283U-80-P2
$246.99
Available: Ships in 7-12 days.
Add to View Price
#39 GRAPHIC 1
BN6-28391-50-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
#40 GRAPHIC 1
BN6-28391-30-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#41 GRAPHIC 1
BN6-28391-60-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#42 EMBLEM, 1
BN6-2834C-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#43 GROMMET
90480-14003-00
$6.49
Unavailable
#44 COLLAR
90387-06260-00
$6.49
Unavailable
#45 BOLT, HEX. SOCKET BUTTON
90111-06040-00
$3.30
Unavailable
#46 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#47 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Unavailable
#48 RIVET
90269-06046-00
Superseded by 90269-06001-00
$4.90
In Stock: Ready to ship.
Add to View Price
#49 DAMPER 2
BN6-28416-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#50 DAMPER
5YT-24665-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#51 DAMPER, PLATE
90520-20013-00
$3.30
In Stock: Ready to ship.
Add to View Price
#52 COVER 1
BN6-28219-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#53 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Unavailable
#54 COVER, UNDER 2
BN6-28395-00-P1
$108.99
Available: Ships in 7-12 days.
Add to View Price
#54 COVER, UNDER 2
BN6-28395-00-P2
$98.99
Available: Ships in 7-12 days.
Add to View Price
#54 COVER, UNDER 2
BN6-28395-00-P3
$136.99
Available: Ships in 7-12 days.
Add to View Price
#55 EMBLEM, YAMAHA
99244-00180-00
$14.99
Unavailable
#56 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#57 GROMMET
90480-14003-00
$6.49
Unavailable
#58 COLLAR
90387-06260-00
$6.49
Unavailable
#59 BOLT, HEX. SOCKET BUTTON
90111-06040-00
$3.30
Unavailable
#60 SEAT 2
BN6-2848K-00-00
$23.99
Available: Ships in 7-12 days.
Add to View Price
#61 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Unavailable
#62 PANEL ASSY 2
BN6-W283V-40-P3
$227.99
Available: Ships in 7-12 days.
Add to View Price
#62 PANEL ASSY 2
BN6-W283V-70-P1
$230.99
Available: Ships in 7-12 days.
Add to View Price
#62 PANEL ASSY 2
BN6-W283V-80-P2
$246.99
Available: Ships in 7-12 days.
Add to View Price
#63 GRAPHIC 2
BN6-28392-50-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
#64 GRAPHIC 2
BN6-28392-30-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#65 GRAPHIC 2
BN6-28392-60-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#66 EMBLEM 2
BN6-2835C-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#67 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#68 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Unavailable
#69 RIVET
90269-06046-00
Superseded by 90269-06001-00
$4.90
Unavailable
#70 DAMPER, PLATE
90520-30007-00
$1.10
In Stock: Ready to ship.
Add to View Price
#71 DAMPER 4
BN6-28435-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#72 COVER 2
BN6-28229-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#73 BOLT, HEX. SOCKET BUTTON
90111-05045-00
$6.49
Unavailable
#74 BRACKET 4
BN6-2836G-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#75 BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#76 PANEL, INNER 1
BN6-2836K-00-00
$76.99
Available: Ships in 7-12 days.
Add to View Price
#77 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#78 PANEL, INNER 2
BN6-2836L-00-00
$41.99
Available: Ships in 7-12 days.
Add to View Price
#79 RIVET
90269-06008-00
$6.49
In Stock: Ready to ship.
Add to View Price
#80 PANEL, INNER 3
BN6-2836M-00-00
$41.99
Available: Ships in 7-12 days.
Add to View Price
#81 RIVET
90269-06008-00
$6.49
Unavailable
#82 PANEL, CONSOLE 1
BN6-2837L-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#83 DAMPER
5SL-84753-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#84 RIVET
90269-06008-00
$6.49
Unavailable
#85 PANEL, CONSOLE 2
BN6-2837M-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#86 DAMPER
5SL-84753-00-00
$6.49
Unavailable
#87 RIVET
90269-06008-00
$6.49
Unavailable
#88 STAY 2
BN6-28357-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#89 BOLT, HEXAGON SOCKET HEAD
90111-05003-00
$6.49
In Stock: Ready to ship.
Add to View Price
