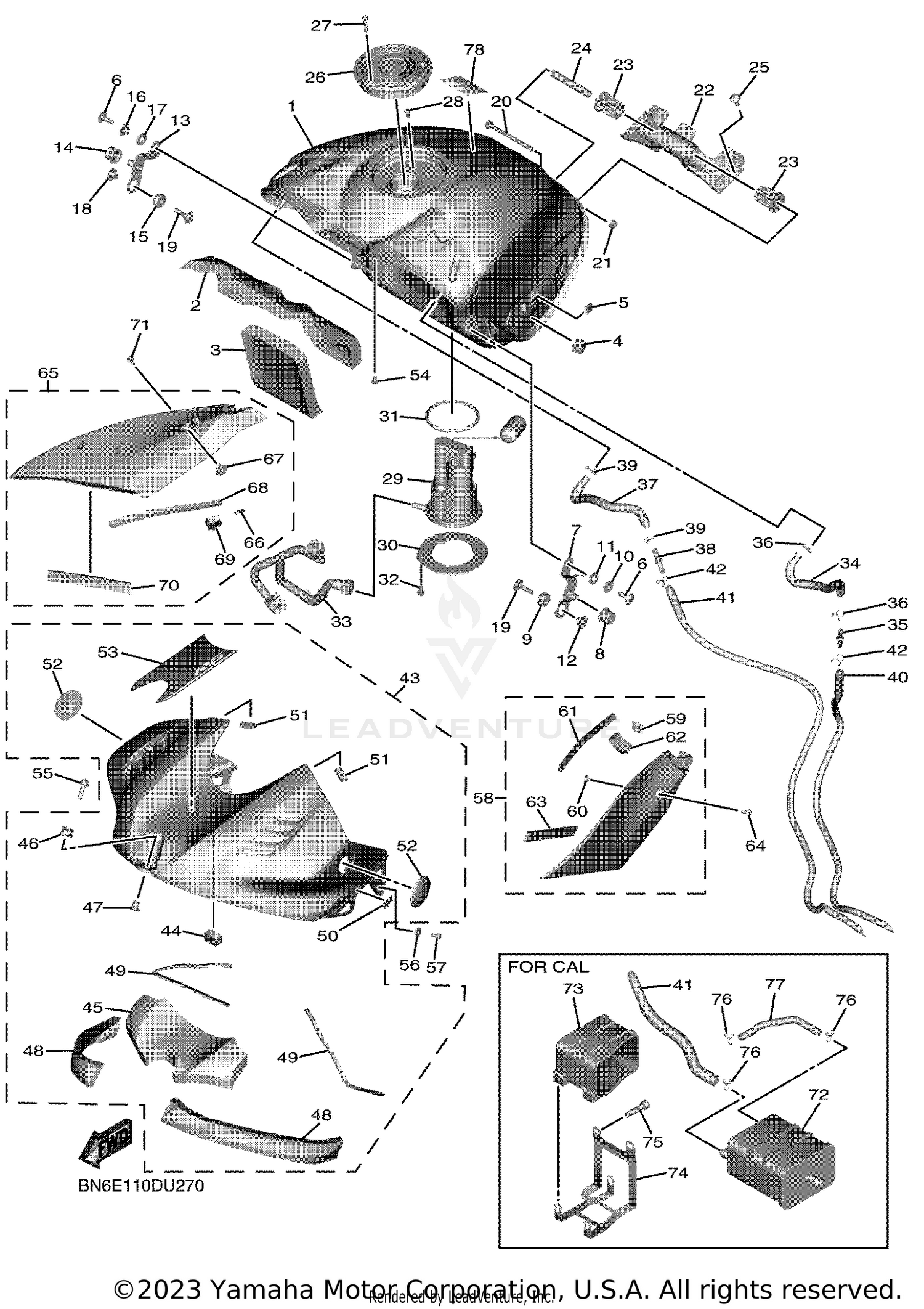

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BN6-YK241-00-P0
|
$1,781.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
BN6-24110-00-P3
|
$1,022.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
BN6-YK241-00-P4
|
$1,168.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, PLATE 2
BN6-2414J-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, PLATE
90520-15014-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
14B-2836U-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, SIDE COVER
5PW-2411J-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FUEL TANK 1
BN6-24191-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 1
5VY-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-16278-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COLLAR
90387-06171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 3
BN6-24183-00-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COLLAR
90387-066Y6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, FUEL TANK 1
BN6-24191-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 1
5VY-24181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-16278-00
|
$3.80 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-06171-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
DAMPER, LOCATING 3
BN6-24183-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-066Y6-00
|
$10.49 | ||
|
Unavailable |
|||
|
#19
BOLT, WITH WASHER
90119-06262-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95812-06090-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BRACKET, TANK FITTING
BN6-2413Y-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, LOCATING 3
5SL-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. SOCKET BUTTON
90111-06071-00
Superseded by 90111-06038-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP ASSY
39P-24602-00-00
|
$278.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUEL PUMP COMP.
BN6-13907-00-00
Superseded by BN6-13907-10-00
|
$428.99 | ||
|
Unavailable |
|||
|
#30
BRACKET, FUEL PUMP
2CR-24491-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
1RC-24486-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, WITH WASHER
90119-05015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, FUEL 1
13S-13971-01-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE 3
BN6-24313-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
JOINT
4XY-14568-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
PIPE 3
BN6-24313-20-00
|
$18.49 | ||
|
Unavailable |
|||
|
#38
JOINT
4XY-14568-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#40
PIPE 4
BN6-24314-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIPE 7
BN6-24317-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIPE 7
BN6-24317-20-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#43
COVER, TOP (FUEL TAN
BN6-Y217F-20-P0
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, TOP (FUEL TAN
BN6-Y217F-00-P3
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, TOP (FUEL TAN
BN6-Y217F-00-P4
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
DAMPER, PLATE
90520-08006-00
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
DAMPER
BN6-12232-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
GROMMET
90480-12023-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-06203-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
DAMPER, PLATE 4
2S3-2414N-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
DAMPER, PLATE 1
5PW-2414H-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
SEAL
5SL-21268-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
DAMPER, PLATE
90520-05024-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#52
EMBLEM
1RC-2413B-01-00
Superseded by 1RC-2413B-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#53
GRAPHIC FUEL TANK 1
BN6-24244-10-00
Superseded by BN6-24244-11-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
COLLAR
90387-05058-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT
97012-05010-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#58
TANK SIDE COVER ASSY 1
BN6-24106-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
SEAL
5SL-21268-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#60
COLLAR
90387-05035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
SEAL 3
7TA-22875-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#62
MOLE
7CF-22869-00-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#63
DAMPER, PLATE
90520-05023-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT, HEX. SOCKET BUTTON
90111-05048-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#65
TANK SIDE COVER ASSY 2
BN6-24108-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SEAL
5SL-21268-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#67
COLLAR
90387-05035-00
|
$8.49 | ||
|
Unavailable |
|||
|
#68
SEAL 3
7TA-22875-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#69
MOLE
7CF-22869-00-00
|
$1.35 | ||
|
Unavailable |
|||
|
#70
DAMPER, PLATE
90520-05023-00
|
$1.30 | ||
|
Unavailable |
|||
|
#71
BOLT, HEX. SOCKET BUTTON
90111-05048-00
|
$2.75 | ||
|
Unavailable |
|||
|
#72
CANISTER ASSY
2CR-24170-00-00
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
DAMPER, LOCATING 2
2CR-24182-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
BRACKET, CANISTOR
BN6-2419F-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
BOLT
90110-06187-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#76
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#77
HOSE
90445-10059-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
LABEL, WARNING GENER
29P-2816R-00-00
Superseded by 29P-2816R-01-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
