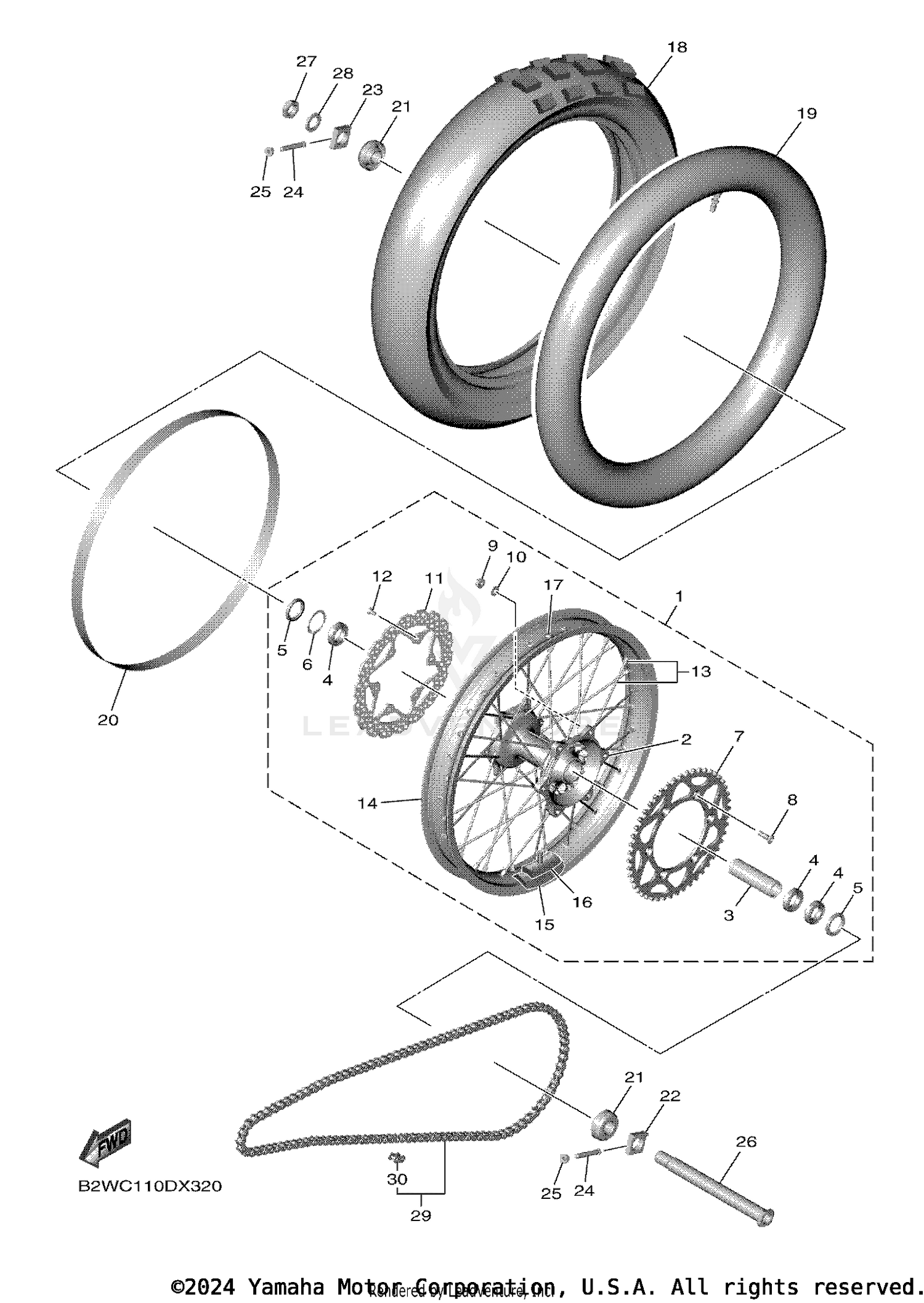

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL SUB-ASSY
BNL-25302-00-00
|
$519.99 | ||
|
Unavailable |
|||
|
#2
HUB, REAR
B2W-25311-00-00
|
$258.99 | ||
|
Unavailable |
|||
|
#3
SPACER, BEARING
17D-25317-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-90511-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-32337-00
Superseded by 93102-32M07-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99009-42700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, DRIVEN (47T)
17D-25447-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, DRIVEN (48T)
17D-25448-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, DRIVEN (
B2W-25449-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, DRIVEN (
B2W-25450-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, DRIVEN (
B2W-25451-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#7
SPROCKET, DRIVEN (52T)
17D-25452-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-081G1-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
90185-08008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISK, REAR BRAKE 2
B2W-2582W-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, COUNTERSUNK
90151-06051-00
Superseded by 90151-06079-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
. .SPOKE SET, REAR
BNK-25304-00-00
|
$137.99 | ||
|
Unavailable |
|||
|
#14
. .RIM (2.15-18)
94421-18048-00
|
$368.99 | ||
|
Unavailable |
|||
|
#15
SPACER, BEAD
3JE-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
4XM-25364-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
TIRE
94112-18054-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE (110-140/80-100-18 M/C)
94212-18188-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, RIM (2.50-18)
94309-18146-00
Superseded by 94340-18086-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR ASSY
BR9-2530S-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 1
1SL-25388-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PULLER, CHAIN 2
1SL-25389-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90101-08006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT
90179-08019-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, WHEEL
17D-25381-00-00
|
$99.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT, SELF-LOCKING
90185-22011-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-22023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CHAIN
9Y582-50113-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT, CHAIN
94682-50021-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
