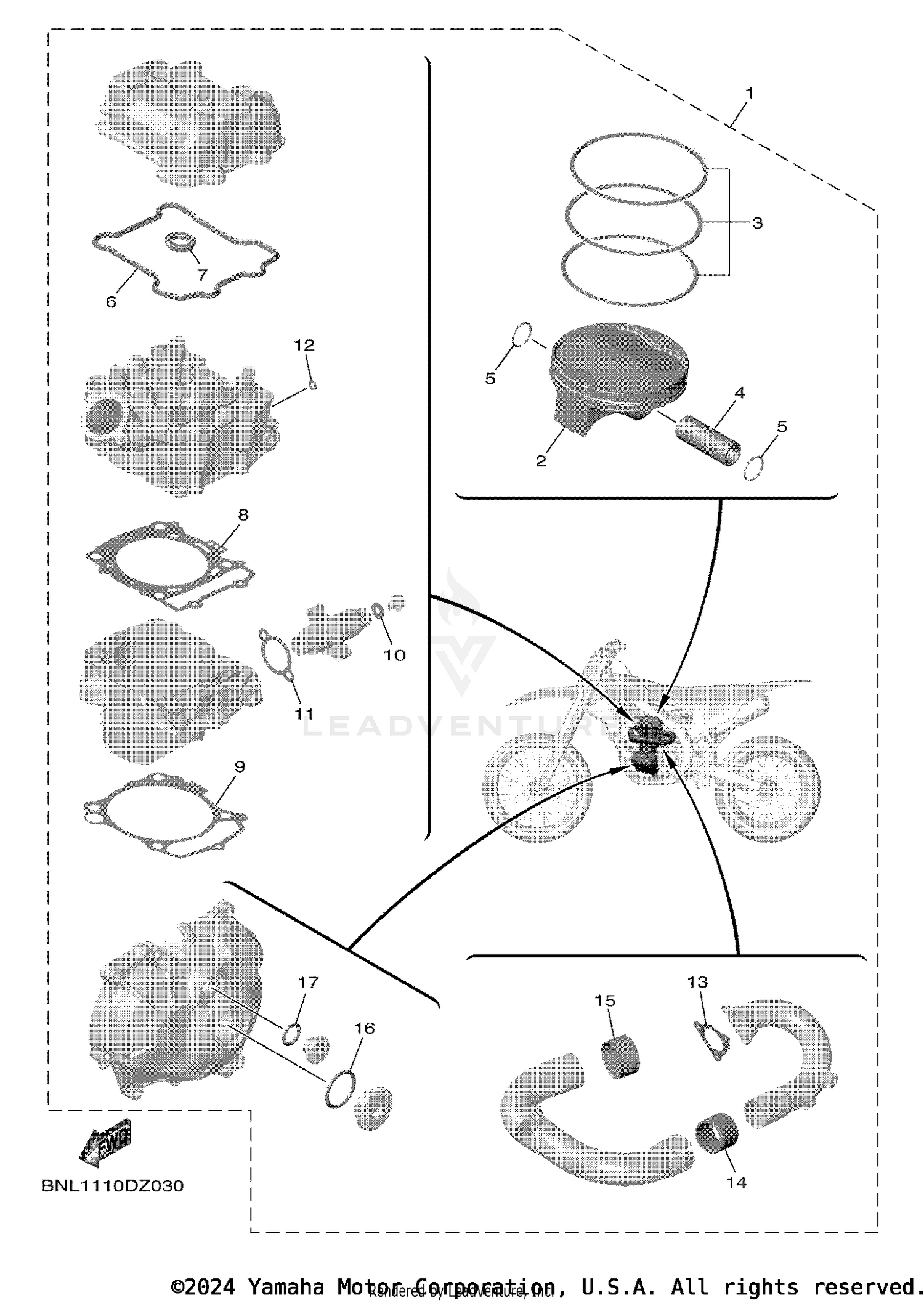

4 Piston Rebuilt Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON REBUILT KIT
BHR-WB033-00-00
|
$305.99 | ||
|
Unavailable |
|||
|
#2
. .PISTON (STD)
BHR-11631-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#3
PISTON RING SET (S
B2W-11603-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
BR9-11633-10-00
|
$69.99 | ||
|
Unavailable |
|||
|
#5
CIRCLIP, INNER
93450-19052-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
. GASKET, HEAD COVER 1
BHR-11193-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#7
GASKET, HEAD COVER 2
1SM-11194-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
. GASKET, CYLINDER HEAD 1
BHR-11181-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
. GASKET, CYLINDER
BHR-11351-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
5SL-12214-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET, EXHAUST PIPE
33D-14613-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MUFFLER
5XD-14714-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, MUFFLER
1SL-14714-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
