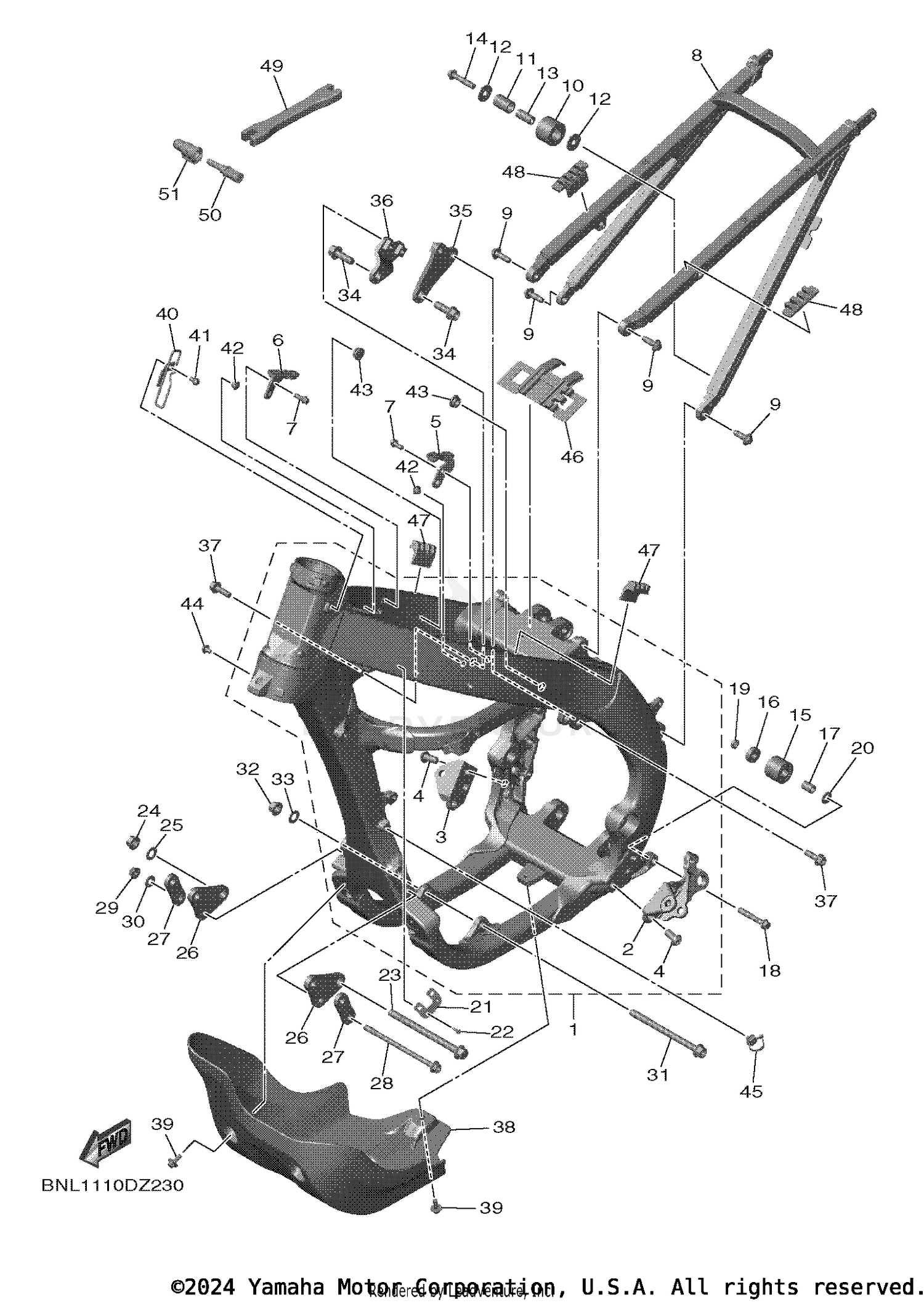

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
BNK-21101-00-00
|
$2,941.99 | ||
|
Unavailable |
|||
|
#2
. .BRACKET, FOOTREST
BNK-21447-00-00
|
$427.99 | ||
|
Unavailable |
|||
|
#3
. .BRACKET, FOOTREST
BHR-21448-00-00
|
$85.99 | ||
|
Unavailable |
|||
|
#4
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, AIR CLEANER 1
BHR-21147-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, AIR CLEANER 2
BHR-21148-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE DEEP RECESS
95E32-06016-00
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
REAR FRAME COMP.
BHR-21190-10-00
|
$610.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08230-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
TENSIONER
30X-22178-00-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSH
4V4-22184-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-08041-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE DEEP RECESS
95E32-08040-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
TENSIONER
BR9-22178-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
90387-086N4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08232-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET 1
BHR-23591-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
RIVET, BLIND
90267-32146-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-10219-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, FRONT LOWER 1
BNK-21417-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#27
BRACKET, FRONT LOW
BAJ-21418-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
90105-08280-00
|
$16.49 | ||
|
Unavailable |
|||
|
#29
NUT
90179-08674-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
90105-10176-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90179-10658-00
|
$10.49 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-10045-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE
90105-10189-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BRACKET, REAR UPPER 1
BHR-21425-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#36
BRACKET, REAR UPPE
B2W-21426-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
90105-08143-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
GUARD, ENGINE 1
BNK-2147A-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#39
BOLT, WITH WASHER
90119-06166-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOLDER, CLUTCH CABLE
1SL-21163-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
PLUG
90338-07043-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GROMMET (6E9)
90480-12M25-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEX. SOCKET BUTTON
90111-06009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-31002-00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#46
DAMPER, LOCATING 1
BNK-24181-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#47
DAMPER, LOCATING 2
BR9-24182-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
DAMPER, LOCATING 3
BNK-24183-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#49
WRENCH, HEXAGON
5ET-28166-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CAP
18P-2467E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CASE, CAP
18P-2464V-01-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
