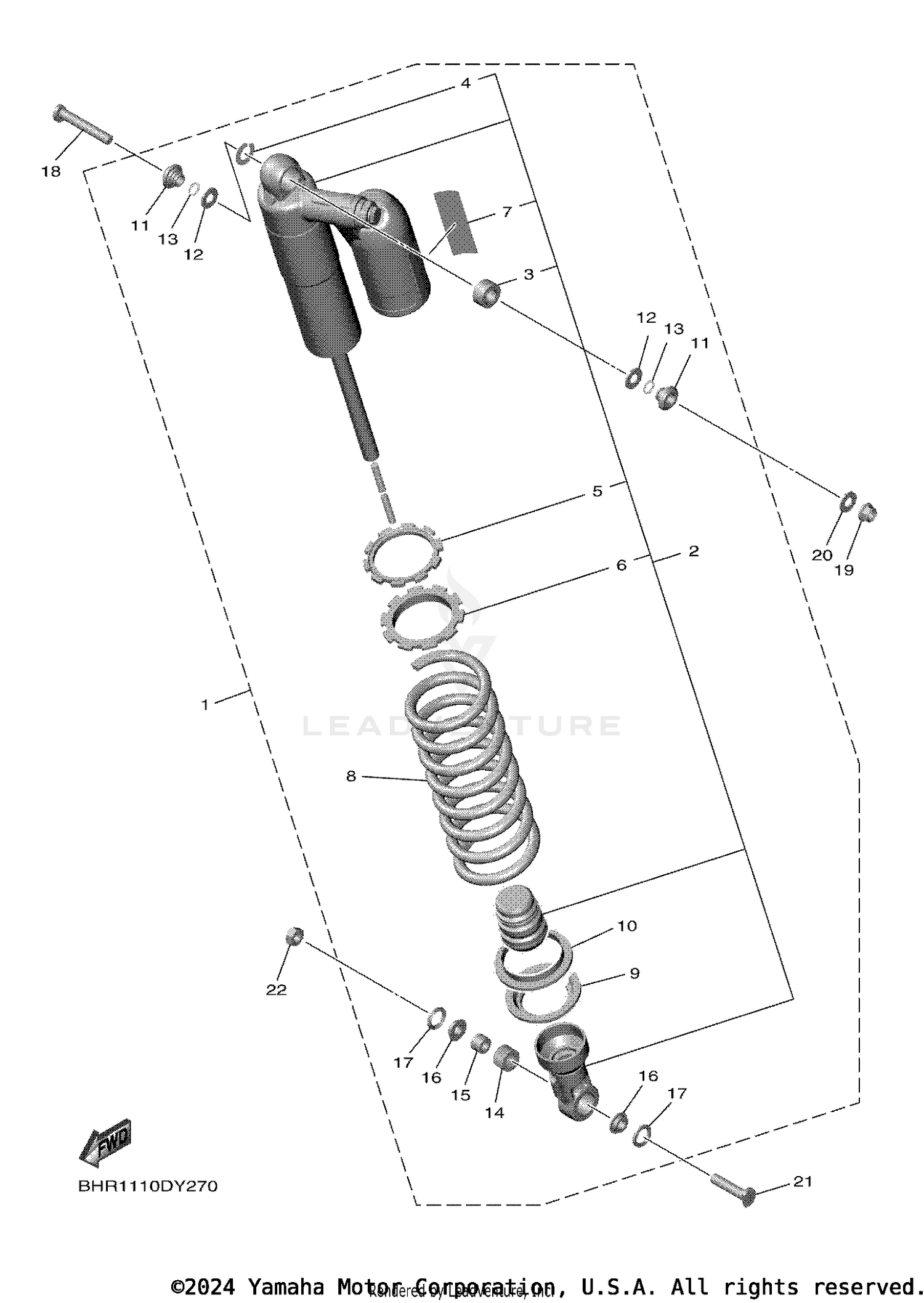

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
BNL-22200-00-00
|
$960.99 | ||
|
Unavailable |
|||
|
#2
. .DAMPER SUB ASSY
BNL-22201-00-00
|
$981.99 | ||
|
Unavailable |
|||
|
#3
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
5DH-23183-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, SPRING 3
33D-22234-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, SPRING UPPER
1SL-22213-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, WARNING
4AA-22259-80-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPRING (K=56 SILVER)
BR9-22212-A0-00
|
$336.99 | ||
|
Unavailable |
|||
|
#9
GUIDE, SPRING 1
33D-22214-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING 2
33D-22224-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, DISTANCE
1C3-22253-50-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, DUST
3JE-22475-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, RING
4EW-22474-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
5UN-22176-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH
5MV-22184-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR, DISTANCE
1C3-22253-L1-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, DUST
5NY-22475-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT 2
5XE-22242-01-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT 1
5NY-22241-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
