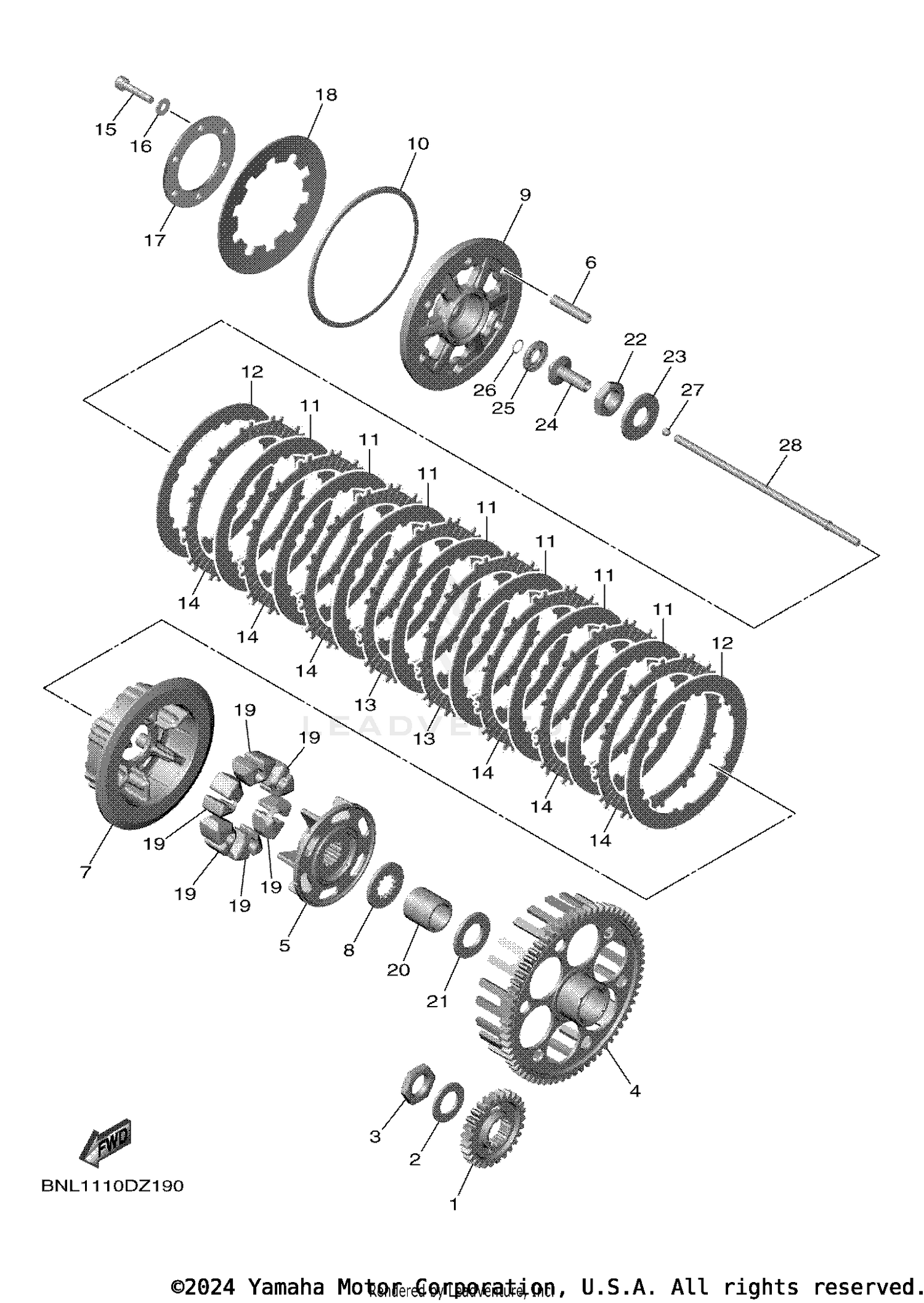

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
BHR-16111-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90170-20014-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
GEAR, PRIMARY DRIVEN
BHR-16151-00-00
|
$901.99 | ||
|
Unavailable |
|||
|
#5
BOSS, CLUTCH
BHR-16371-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#6
COLLAR
90387-0514T-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SLEEVE
BHR-16172-00-00
|
$247.99 | ||
|
Unavailable |
|||
|
#8
WASHER
BHR-16144-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#9
PLATE, PRESSURE 1
BHR-16351-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#10
HOUSING, SPRING
BHR-16335-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#11
. PLATE, CLUTCH 1
BHR-16324-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
. PLATE, CLUTCH 2
BHR-16325-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
. PLATE, FRICTION
BNK-16321-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#14
. PLATE, FRICTION 2
BNK-16330-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON DEEP R
97013-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92903-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING,PRESSURE
BHR-16718-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#18
. SPRING, CLUTCH 2
BHR-16334-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#19
ABSORBER
BHR-16165-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#20
COLLAR 1
BHR-16116-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#21
WASHER, THRUST 1
BHR-16113-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#22
NUT
90179-18016-00
|
$53.99 | ||
|
Unavailable |
|||
|
#23
WASHER, THRUST 1
BHR-16148-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#24
ROD, PUSH 1
BHR-16356-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#25
BEARING
93340-21209-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
93440-10085-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
ROD, PUSH 2
BHR-16357-00-00
|
$83.99 | ||
|
Unavailable |
|||
