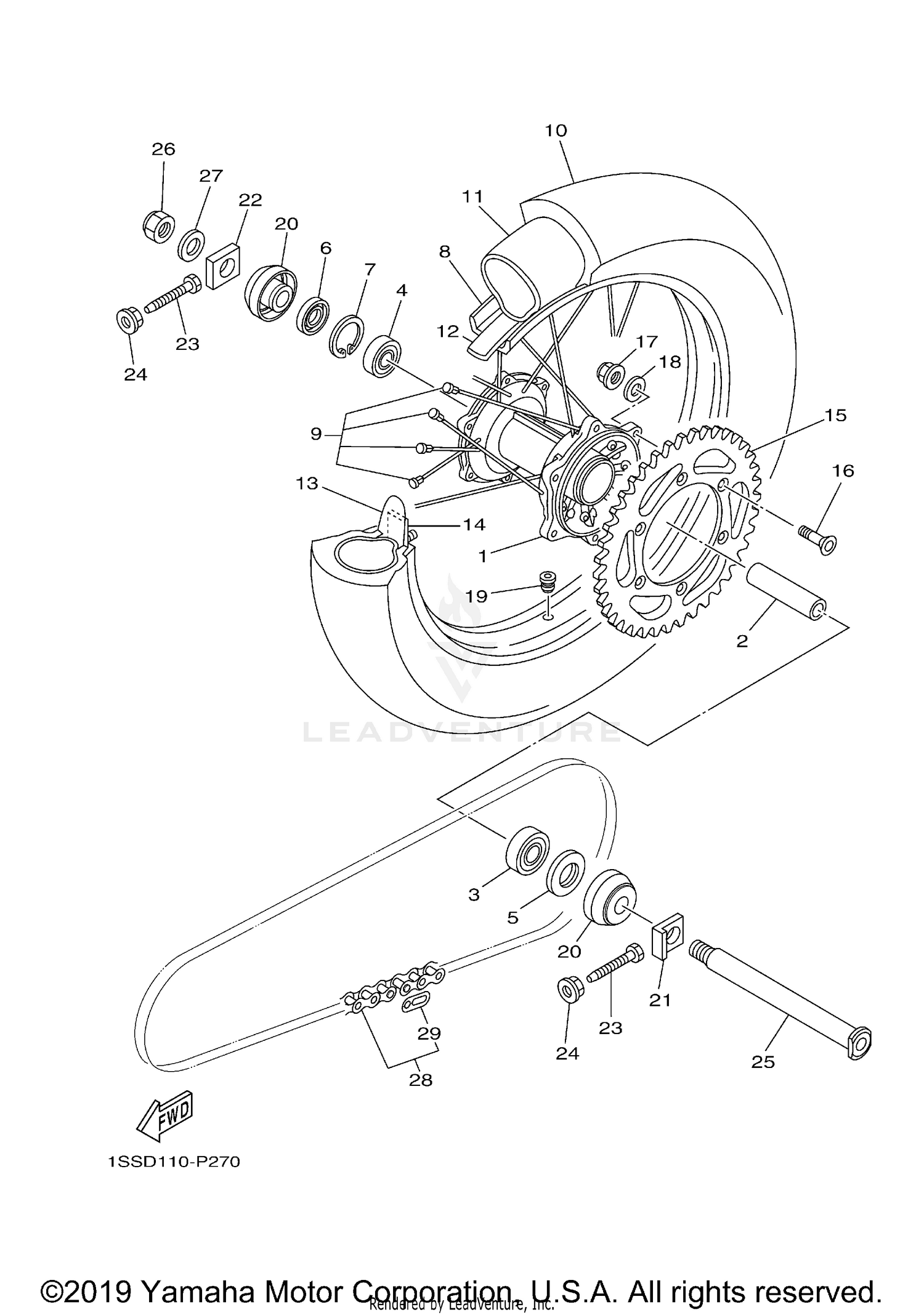

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
5ET-25311-00-00
|
$336.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
5ET-25317-00-00
|
$53.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BEARING
93306-27212-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-07202-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-30001-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-30045-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-45500-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM (2.15-18)
94421-18005-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET, REAR
5GS-25304-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE (110/100-18 64M AT81)
94111-18025-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE (110-140/80-100-18 M/C)
94212-18188-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, RIM (2.50-18)
94309-18146-00
Superseded by 94340-18086-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, BEAD
3JE-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
4XM-25364-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (49T)
17D-25449-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (52T)
17D-25452-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (51T)
17D-25451-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (47T)
17D-25447-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (48T)
17D-25448-50-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (50T)
17D-25450-50-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-08078-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-08008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08048-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR ASSY
5TJ-2530S-80-00
Superseded by 5TJ-2530S-81-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 1
1C3-25388-H0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 2
1C3-25389-H0-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT
90179-08019-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, WHEEL
1C3-25381-90-00
|
$100.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-20002-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-20020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CHAIN (DID520VM2-114LL)
9Y58F-39113-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, CHAIN (DID520VM2Y ZJ)
94682-42021-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
