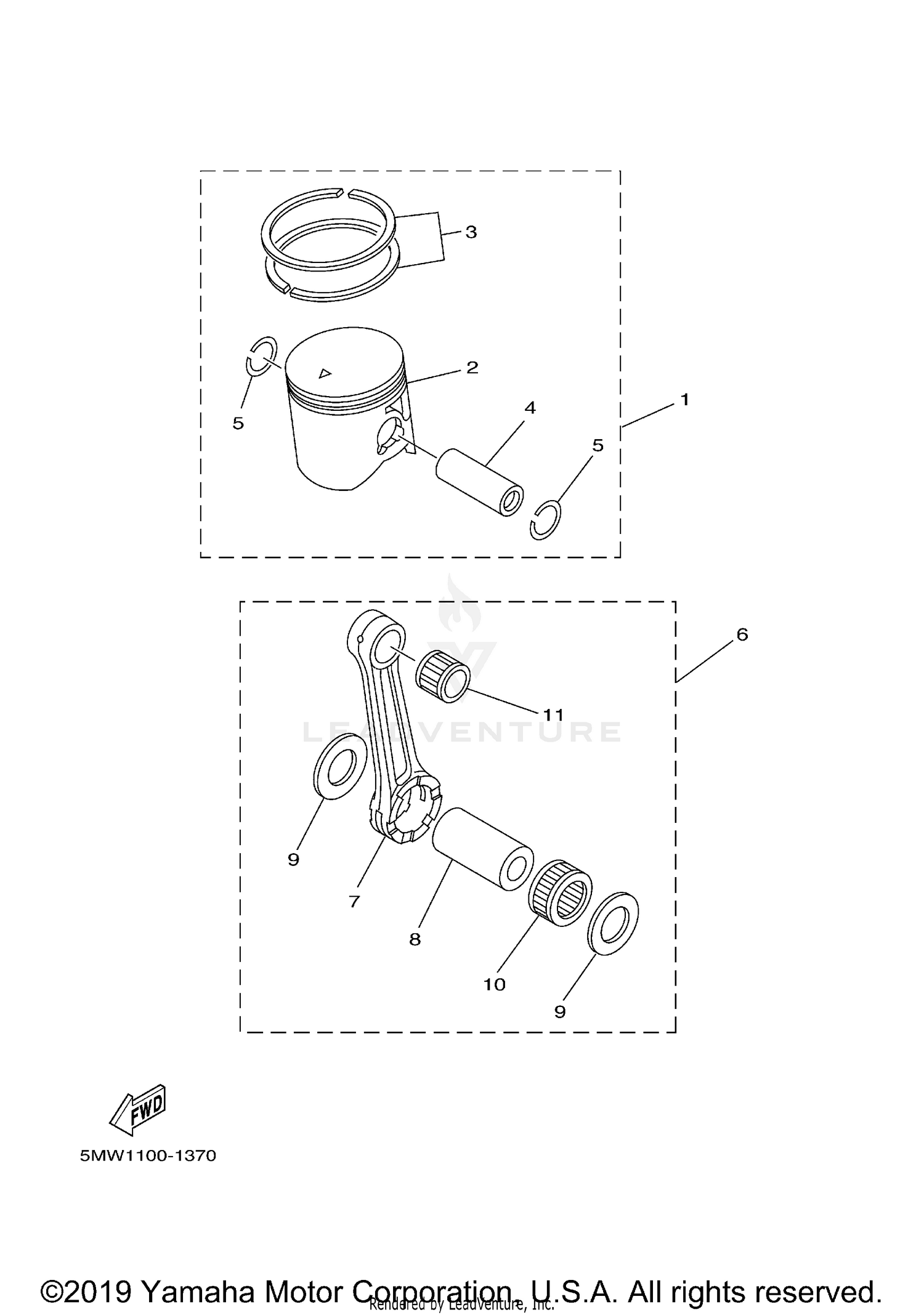

Optional Parts 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON ASSY (STD)
1P8-11630-00-00
|
$170.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PISTON (STD)
1P8-11631-00-B0
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON RING SET (STD)
5CU-11603-10-00
Superseded by 5CU-11603-11-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
5UP-11633-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP, INNER
93450-19052-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CONNECTING ROD ASSY
5MW-11650-00-00
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, CONNECTING
5MW-11651-00-00
|
$184.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIN, CRANK 1
5CU-11681-00-00
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER
90209-24327-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93310-52406-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93310-218A6-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
