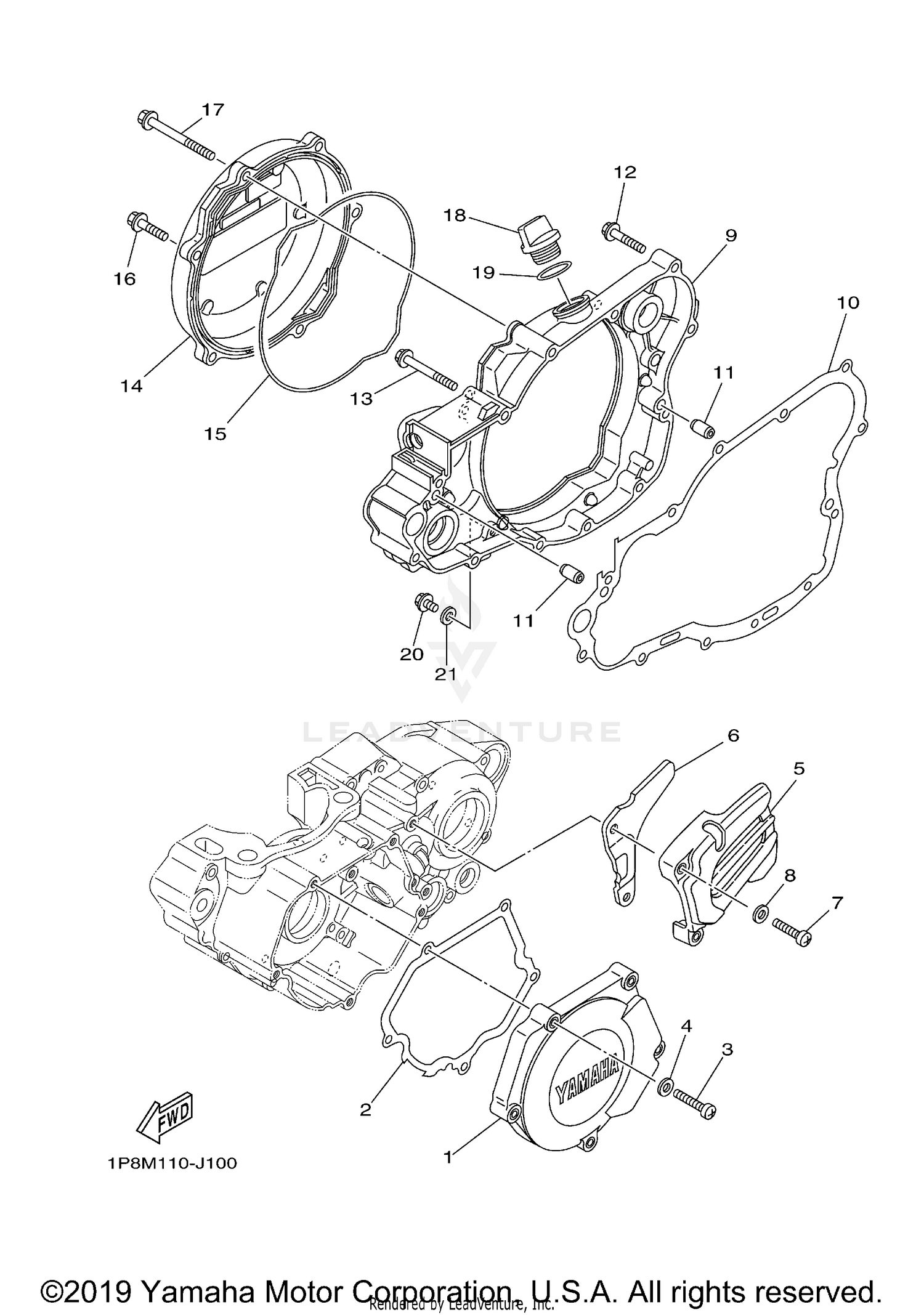

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
5CU-15411-10-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
5CU-15451-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
92502-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 2
1P8-15421-10-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, CHAIN
5HC-17466-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
92502-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#9
COVER, CRANKCASE 3
5NX-15431-01-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CRANKCASE COVER 3
5CU-15462-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-06030-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06050-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, 1
5MW-15415-20-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, 2
5CU-15463-00-00
Superseded by 5CU-15463-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95022-06065-00
|
$2.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLUG, OIL
3Y1-15363-10-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
