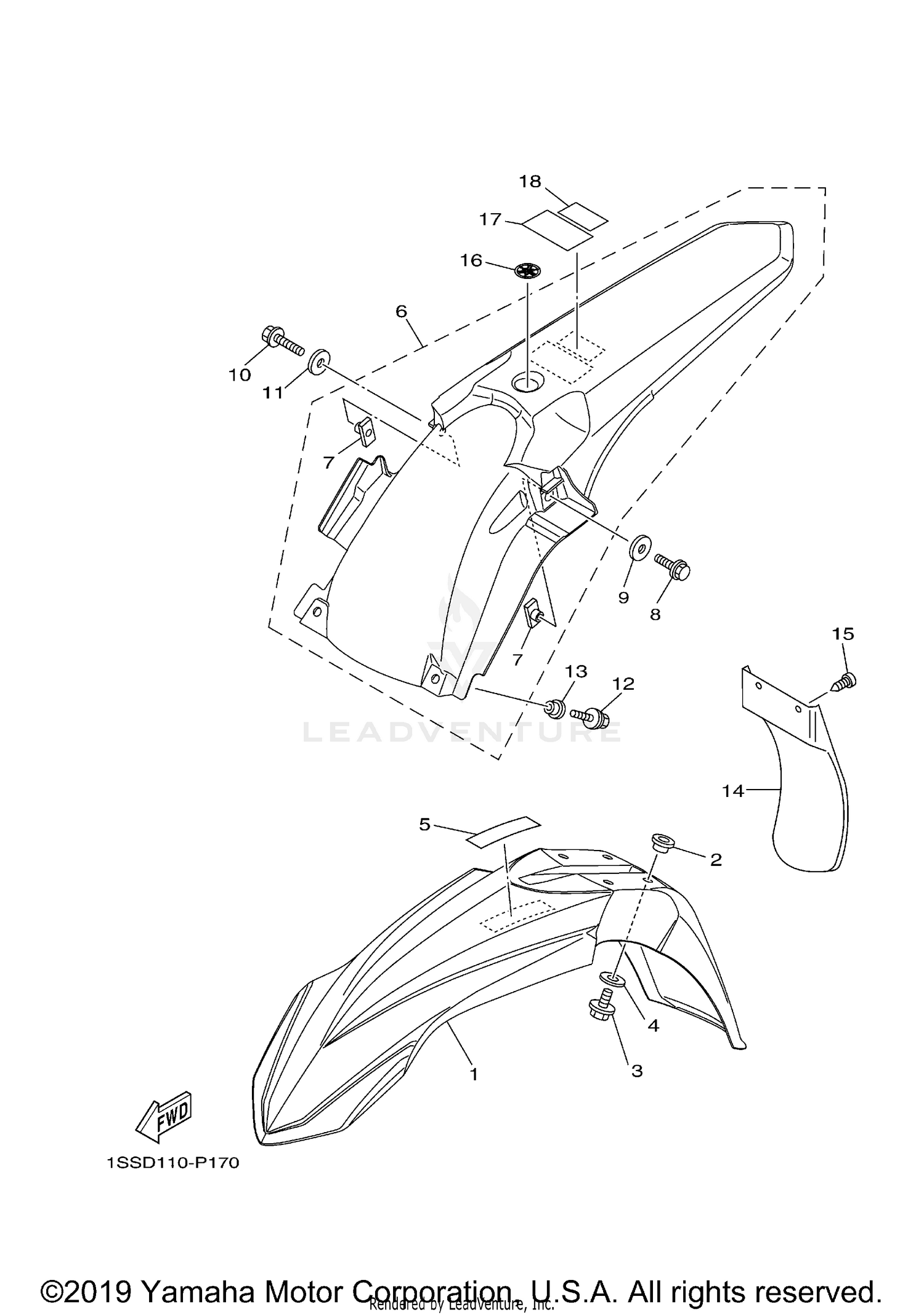

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
17D-21511-50-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
COLLAR
90387-06259-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06127-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06108-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION
3XJ-2415E-A1-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
1SS-21610-00-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, REAR FENDER
5XE-21635-10-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06099-00
Superseded by 90105-06100-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06032-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-06101-00
Superseded by 90105-06102-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-06033-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06149-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06009-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, FLAP
5TA-21642-00-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, TAPPING
97702-60016-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
TUNING FORK MARK
5FK-2175C-30-00
Superseded by 5FK-2175C-31-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL, CAUTION
5PA-2118K-00-00
Superseded by 5PA-2118K-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, COMPETITION USA
17D-2812P-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
