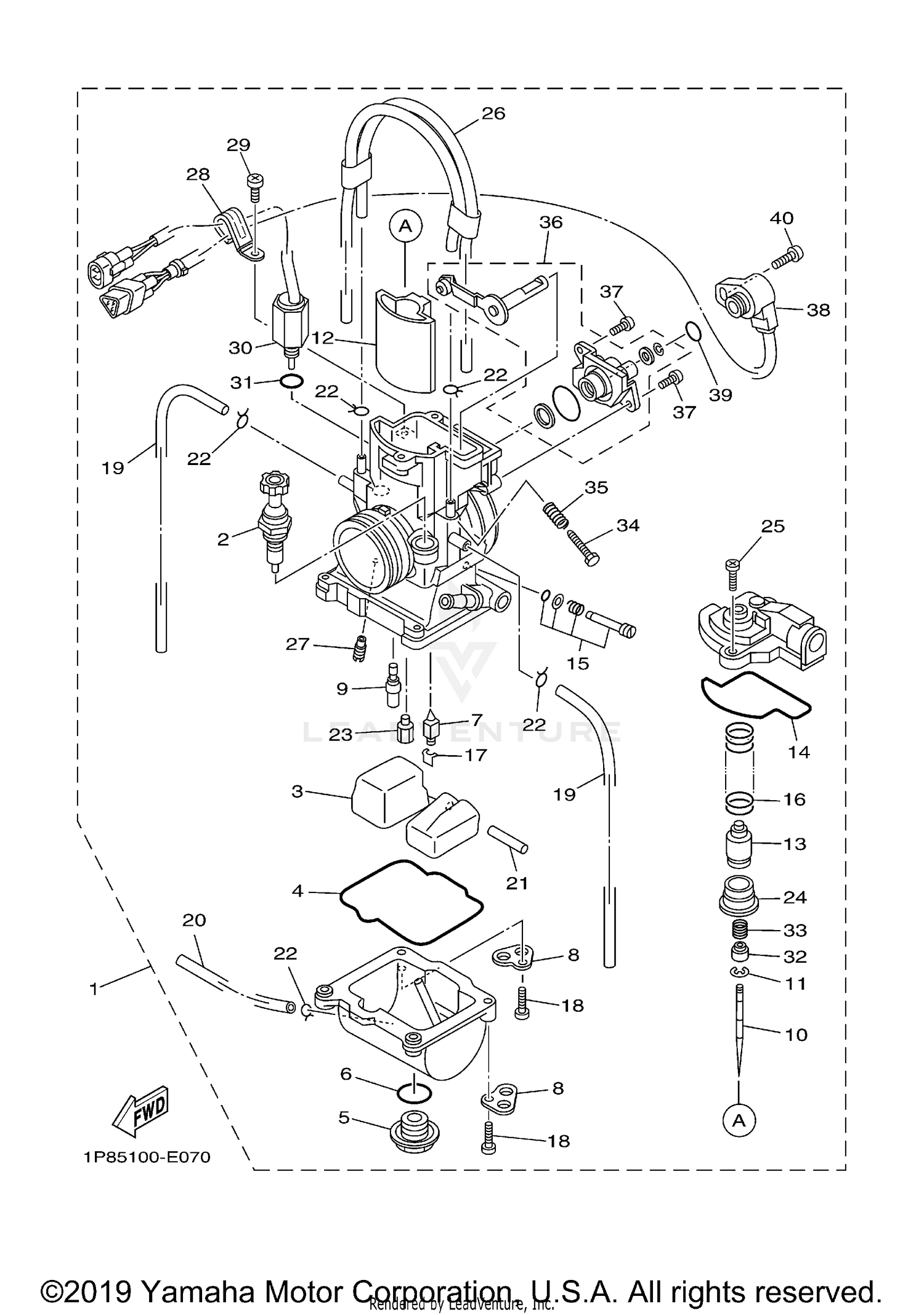

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
1P8-14101-50-00
Superseded by 1P8-14101-54-00
|
$610.99 | ||
|
Unavailable |
|||
|
#2
PLUNGER, STARTER
4JT-14171-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT
4SR-14985-00-00
|
$73.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GASKET, FLOAT CHAMBER
4JT-14984-00-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLUG, SCREW
4MX-14115-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4MX-14561-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PILOT SCREW SET
4MX-14392-00-00
|
$47.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE
4XL-14146-00-00
Superseded by 5BE-14146-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#48)
4MX-14948-06-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
JET, SLOW (#42)
4MX-14948-04-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
JET, SLOW (#45)
4MX-14948-05-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
JET, SLOW (#50)
4MX-14948-07-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#52)
4MX-14948-08-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#55)
4MX-14948-09-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#58)
4MX-14948-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#60)
4MX-14948-11-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#62)
4MX-14948-12-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#38)
4MX-14948-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, SLOW (#40)
4MX-14948-03-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
. .NEEDLE (NYHG)
4JT-14916-9G-00
Superseded by BRY-14916-HG-00
|
$28.99 | ||
|
Unavailable |
|||
|
#10
NEEDLE (N3CW)
4SR-14916-CW-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N8RH)
4SR-14916-RH-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N8RJ)
4SR-14916-RJ-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N8RW)
4SR-14916-RW-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3EK)
4SR-14916-EK-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3CK)
4SR-14916-CK-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3EJ)
4SR-14916-EJ-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3EW)
4SR-14916-EW-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3EH)
4SR-14916-EH-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3EG)
4SR-14916-EG-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3CJ)
4SR-14916-CJ-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE (N3CH)
4SR-14916-CH-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
. .NEEDLE (NYHH)
4JT-14916-9H-00
Superseded by BRY-14916-HH-00
|
$33.99 | ||
|
Unavailable |
|||
|
#10
JET NEEDLE COMP.
4JT-14916-9W-00
Superseded by BRY-14916-HJ-00
|
$26.99 | ||
|
Unavailable |
|||
|
#10
. .NEEDLE (NYHK)
4JT-14916-9J-00
Superseded by BRY-14916-HK-00
|
$31.99 | ||
|
Unavailable |
|||
|
#10
NEEDLE (N3CG)
4SR-14916-CG-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
4MX-14919-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
VALVE ASSY
5HC-14340-A7-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER
5HC-14261-00-00
|
$48.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
5HC-14126-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PILOT SCREW SET
4SR-14105-00-00
Superseded by 4SR-14105-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, THROTTLE VALVE
5HC-14131-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
663-14159-00-00
Superseded by 633-14159-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98502-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIPE
4XL-14197-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, OVER FLOW 1
4XL-14196-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, FLOAT ARM
676-14548-00-00
Superseded by 663-14548-00-00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
3TJ-14137-40-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#180)
4MX-14943-43-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#175)
4MX-14943-42-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#165)
4MX-14943-40-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#162)
4MX-14943-90-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#190)
4MX-14943-45-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#188)
4MX-14943-95-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#185)
4MX-14943-44-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#182)
4MX-14943-94-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#178)
4MX-14943-93-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#172)
4MX-14943-92-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#170)
4MX-14943-41-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#168)
4MX-14943-91-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING
4MX-14194-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOSE
4XL-1410E-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (#70)
4JT-1494F-15-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (#40)
4JT-1494F-03-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (#50)
4JT-1494F-07-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (#60)
4JT-1494F-11-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (#55)
4JT-1494F-09-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (#65)
4JT-1494F-13-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE
5HC-14146-00-00
Superseded by 1P8-14146-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98580-04006-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
. .SOLENOID VALVE
5NX-1410H-10-00
Superseded by 5NX-1410H-11-00
|
$259.99 | ||
|
Unavailable |
|||
|
#31
O-RING
4JT-14147-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
5HC-14264-00-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPRING
5HC-14275-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SCREW, THROTTLE
5HC-14922-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SPRING, THROTTLE STOP
5HC-14934-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
LEVER COMP. 1
1P8-14208-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
5HC-14216-00-00
Superseded by 5HC-14216-09-00
|
$4.96 | ||
|
Unavailable |
|||
|
#38
THROTTLE SENSOR ASSY
5NX-85885-10-00
Superseded by 5NX-85885-12-00
|
$212.99 | ||
|
Unavailable |
|||
|
#39
O-RING
5NX-14562-00-00
Superseded by 33D-14562-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
SCREW
5NX-14216-00-00
Superseded by 1DX-14216-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
