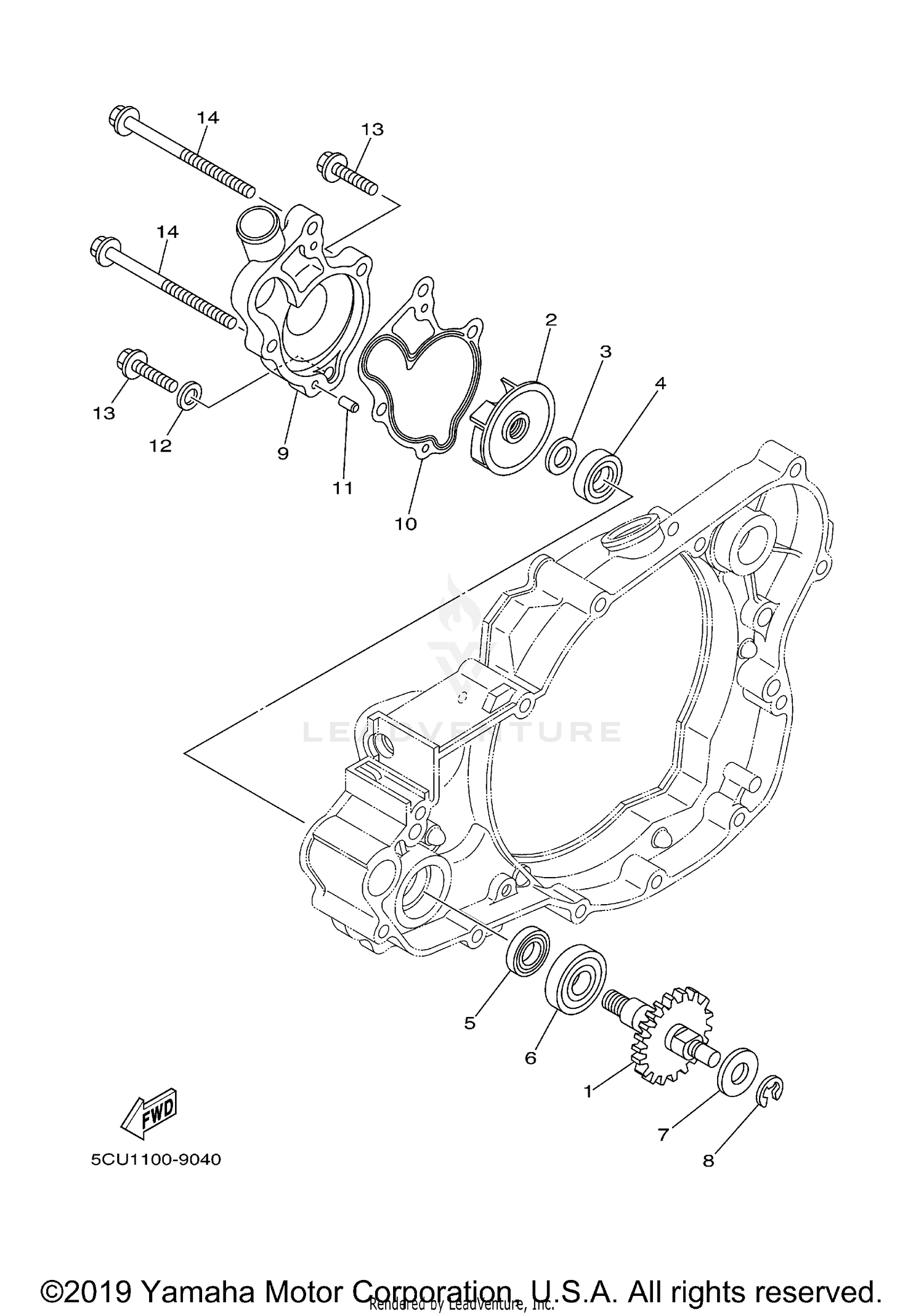

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IMPELLER SHAFT
5CU-12459-00-00
|
$143.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
IMPELLER, WATER PUMP
5DJ-12451-00-00
|
$97.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08512-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
OIL SEAL
93109-11073-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING (B6001)
93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08784-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CIRCLIP
99001-06600-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COVER, HOUSING
5MW-12422-00-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, HOUSING COVER 2
5XF-12428-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06065-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
