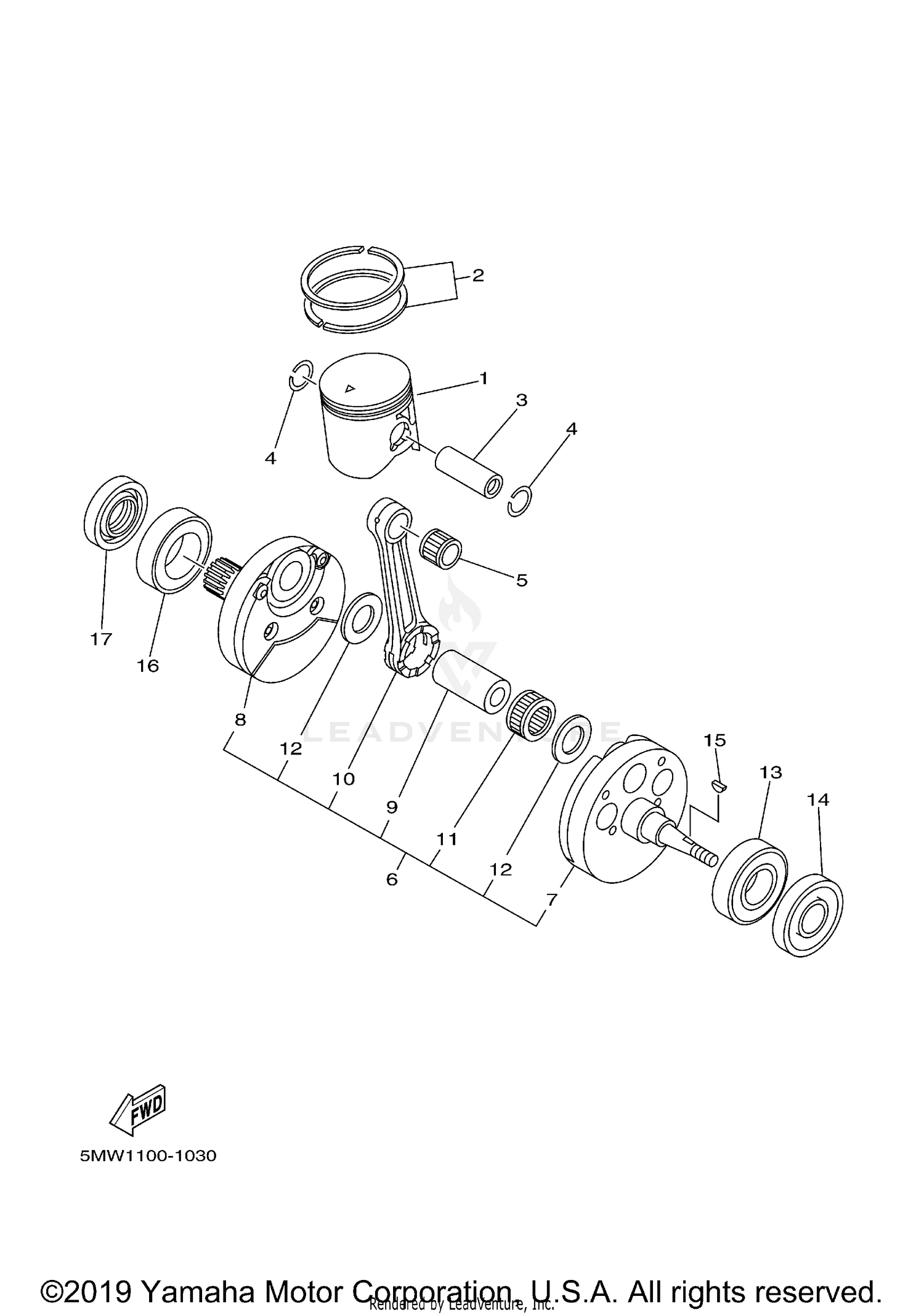

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON (STD)
1P8-11631-00-A0
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON (STD)
1P8-11631-00-B0
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON (STD)
1P8-11631-00-C0
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON (STD)
1P8-11631-00-D0
|
$128.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PISTON RING SET (STD)
5CU-11603-10-00
Superseded by 5CU-11603-11-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
5UP-11633-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, INNER
93450-19052-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING
93310-218A6-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CRANKSHAFT ASSY
5UP-11400-10-00
|
$713.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CRANKSHAFT
5UP-11410-10-00
|
$287.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKSHAFT
5MW-11420-10-00
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CRANK 1
5CU-11681-00-00
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ROD, CONNECTING
5MW-11651-00-00
|
$184.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BEARING
93310-52406-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
90209-24327-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37808-00
|
$82.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL
93102-20485-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
KEY, WOODRUFF
90280-03045-00
Superseded by 90280-03017-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BEARING
93306-37808-00
|
$82.99 | ||
|
Unavailable |
|||
|
#17
OIL SEAL
93102-28004-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
