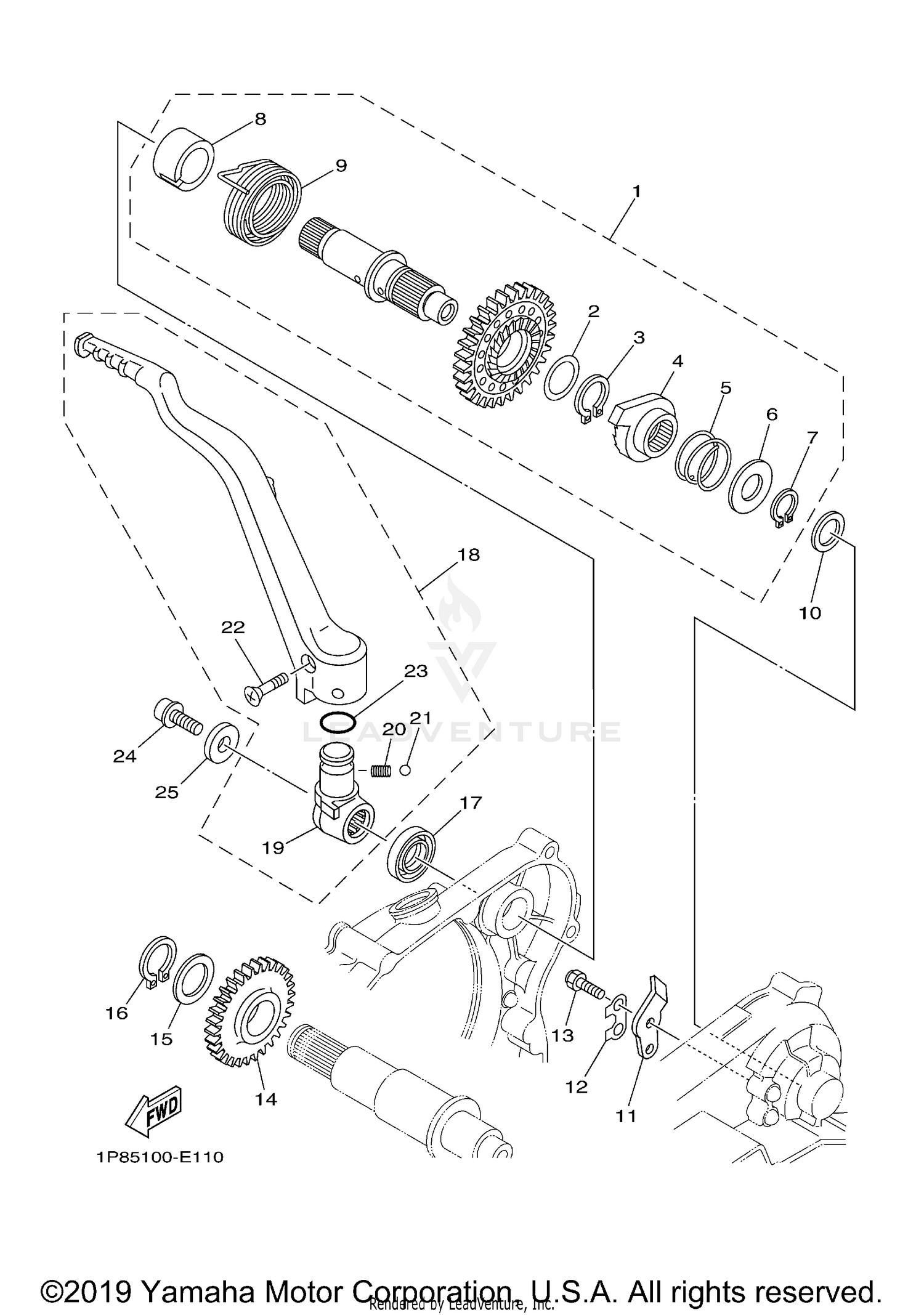

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK SHAFT ASSY
5NX-15601-10-00
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE (T=0.5)
90201-20685-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP, S-TYPE
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WHEEL, RATCHET
4GY-15671-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-16016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-167P7-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-16400-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, SPRING
5NL-15664-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TORSION
90508-30743-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-162H4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUIDE, RATCHET WHEEL
214-15674-00-00
Superseded by 2NX-15674-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
214-15686-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON DEEP R
97022-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, KICK IDLE
5CU-15651-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE (T=1.0)
90201-20276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL SEAL
93102-18278-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
KICK CRANK ASSY
5NX-15620-20-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOSS, KICK CRANK
5NX-15621-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-147A5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93507-32009-00
Superseded by 93507-32031-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, COUNTERSUNK
90151-06045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-17570-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-08052-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-08048-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
