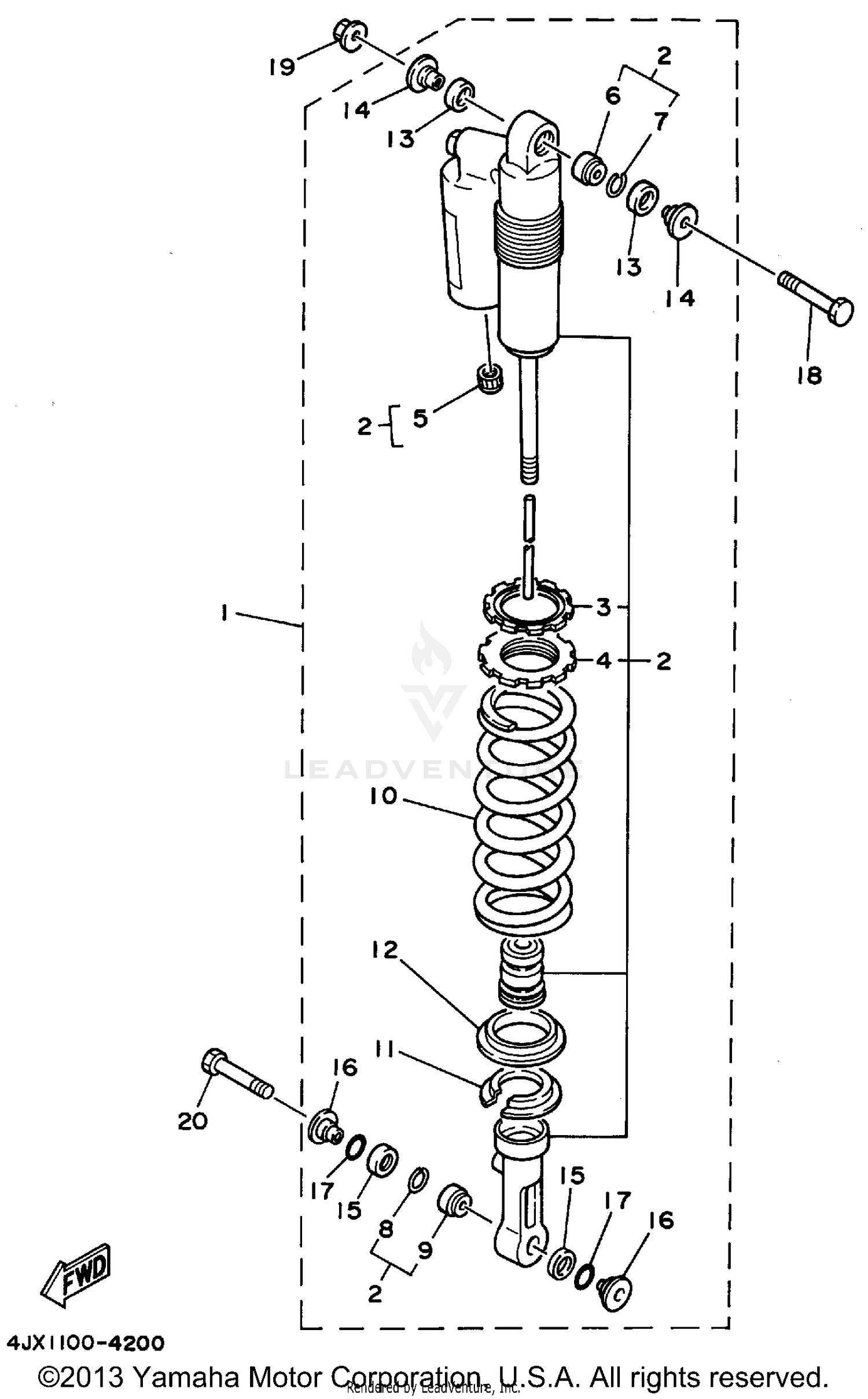

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSEMBLY, REAR
4JY-22210-10-00
|
$693.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSEMBLY
4JY-22201-10-00
|
$877.99 | ||
|
Unavailable |
|||
|
#3
GUIDE, SPRING 3
3SP-22234-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
3SP-22213-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, AIR VALVE
24M-23184-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#6
BUSH, REAR SHOCK ABSORBER
3JD-22216-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, STOP
43M-22274-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
3Y6-23183-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING (K=4.8)
4JX-22212-30-00
|
$217.99 | ||
|
Unavailable |
|||
|
#11
GUIDE, SPRING 1
3JD-22214-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, SPRING 2
3JD-22224-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#13
SEAL, DUST
3JD-22475-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, DISTANCE
3XJ-22253-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#15
SEAL, DUST
3JE-22475-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, DISTANCE
4EW-22253-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, RING
4EW-22474-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT 1
3SP-22241-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U FLANGE
95611-10200-00
Superseded by 95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-10614-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
