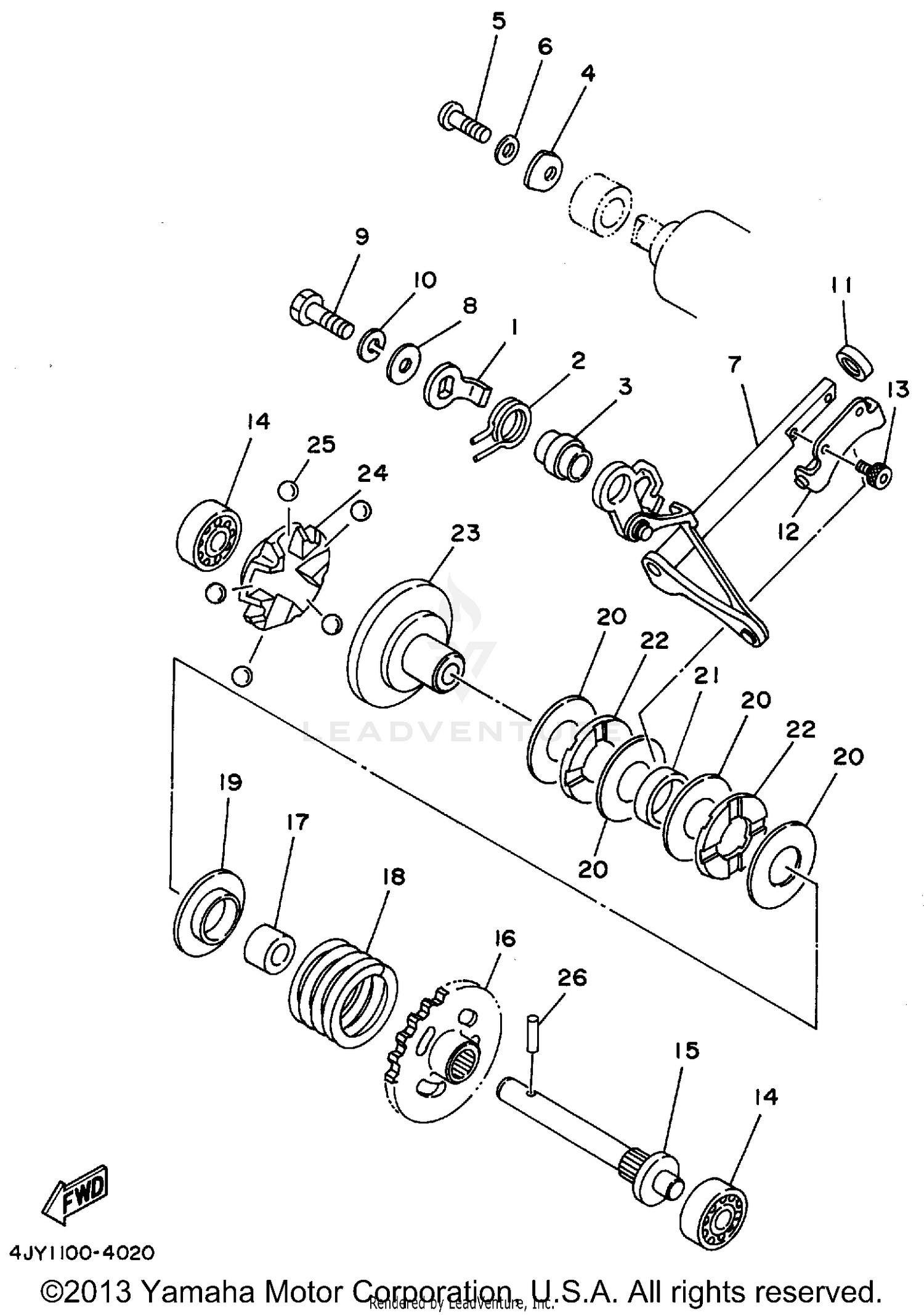

Governor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
4JY-11931-00-00
Superseded by 4JY-11931-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-14783-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, LEVER
4JY-11937-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#4
PLATE, THRUST 1
4JY-11915-00-00
Superseded by 4JY-11915-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PUSH ROD ASSEMBLY
4JY-11990-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-057H5-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97001-05016-00
Superseded by 97095-05016-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
Unavailable |
|||
|
#11
OIL SEAL
93104-08040-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FORK, GOVERNOR
3JE-11922-00-00
Superseded by 3JE-11922-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91316-04006-00
Superseded by 91317-04006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93300-60814-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, GOVERNOR
5X4-11921-02-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, GOVERNOR
24X-11953-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
90560-08213-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING, COMPRESSION
90501-264J6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
5X4-11952-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-154E9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-152F2-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93340-21505-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINER, WEIGHT
5X5-11912-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RETAINER
4JX-11911-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#25
BALL
93521-64032-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, DOWEL
93603-14179-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
