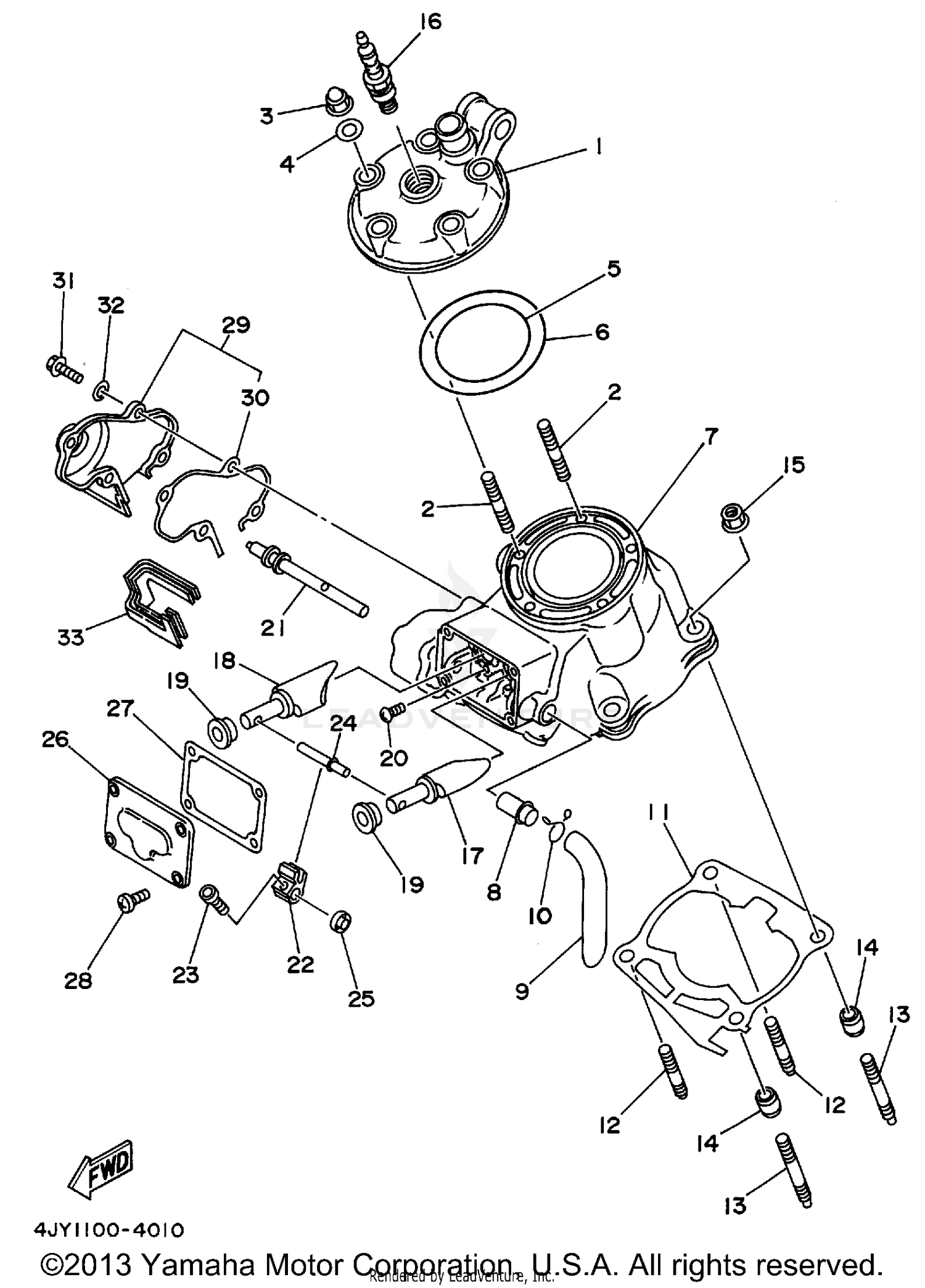

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
4JY-11111-00-00
Superseded by 4JY-11111-01-00
|
$302.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, STUD
90116-08394-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CROWN
90176-08026-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING
93210-63442-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-90785-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CYLINDER 1
4JY-11311-00-00
Superseded by 4PE-11310-00-00
|
$1,075.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, BREATHER 2
4JY-11167-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, BREATHER 1
4JY-11166-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, CYLINDER
4JY-11351-00-00
Superseded by 4JY-11351-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-08318-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, STUD
90116-08388-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT
90179-08491-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
B9EG NGK SPLUG 4P
NGK-B9EG0-00-00
Superseded by B9E-G0000-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
VALVE 1
4JY-1131A-00-00
Superseded by 4JY-1131A-01-00
|
$265.99 | ||
|
Unavailable |
|||
|
#18
VALVE 2
4JY-1132A-00-00
Superseded by 4JY-1132A-01-00
|
$252.99 | ||
|
Unavailable |
|||
|
#19
HOLDER 1
4JY-1131E-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, BIND
98903-05010-00
|
$1.45 | ||
|
Unavailable |
|||
|
#21
SHAFT 1
4JY-1131V-00-00
Superseded by 4JY-1131V-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#22
LEVER, LINK
4JY-11832-00-00
Superseded by 4JY-11832-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
91316-04008-00
Superseded by 91317-04008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SHAFT, VALVE
4JY-11812-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
93104-08040-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
COVER
4JY-1131M-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#27
GASKET
4JY-11354-00-00
Superseded by 4JY-11354-02-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCREW, BIND
98901-05014-00
Superseded by 98907-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOUSING 1
4JY-11991-00-00
Superseded by 4JY-11991-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
4JY-11993-00-00
Superseded by 4JY-11993-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
97001-05016-00
Superseded by 97095-05016-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, HOUSING
4JY-11995-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
