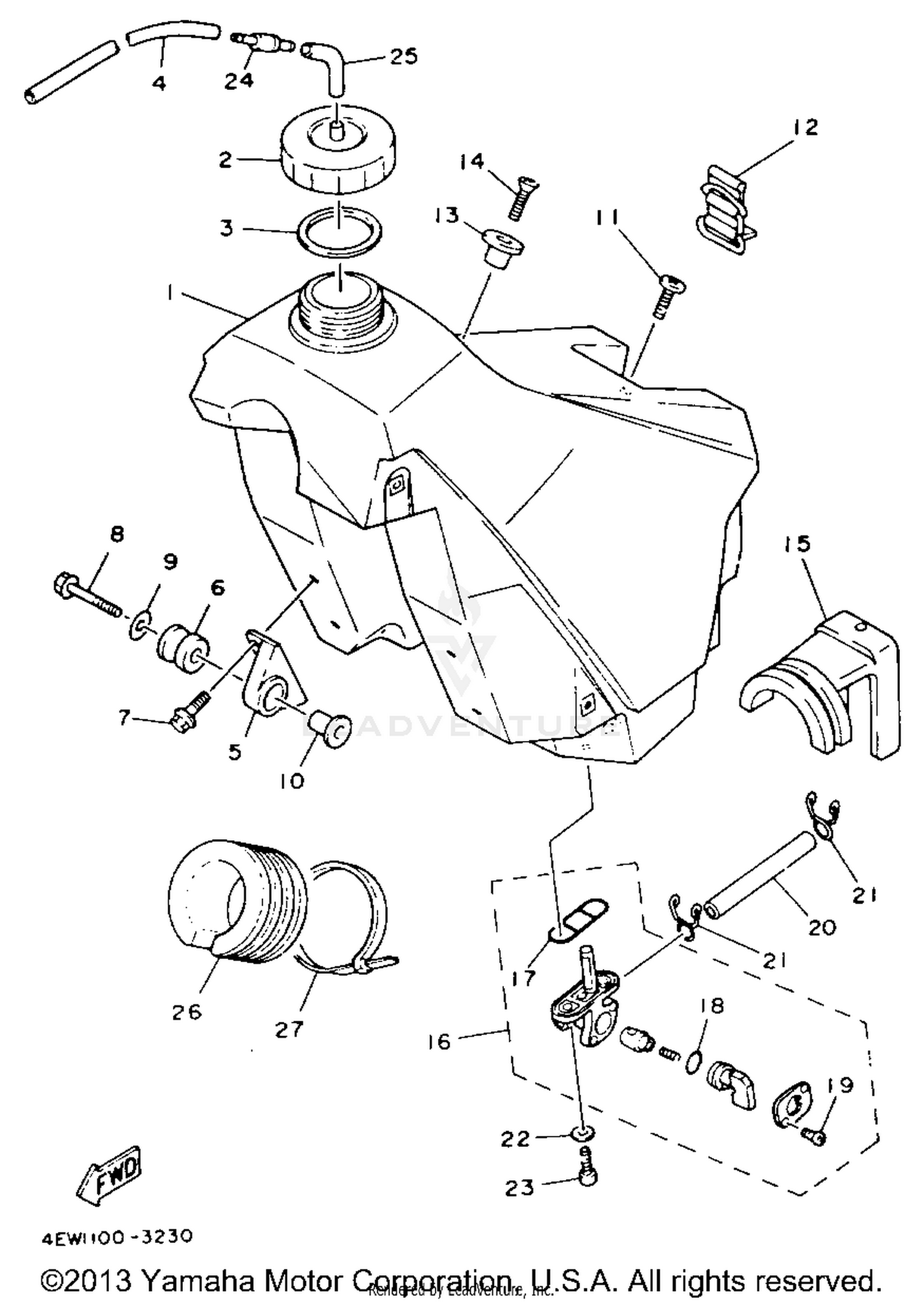

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4EW-24110-00-00
Superseded by 4EW-24110-01-00
|
$440.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, CAP
5X7-24611-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CAP
5X7-24612-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 5
90445-09100-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-18549-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06707-00
Superseded by 95024-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLG.(SMALL HEAD)
95023-06035-00
Superseded by 95024-06035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06697-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL
3JD-24186-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BIND
98980-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TANK FITTING 1
3SP-24173-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT
4EW-2412F-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, FLAT HEAD
98701-06025-00
Superseded by 98707-06025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
4EW-24181-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#16
FUEL COCK ASSY 1
3JD-24500-01-00
Superseded by 3JD-24500-20-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE (L100)
90445-114H6-00
Superseded by 90445-11293-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIPE JOINT ASSY
3XJ-24380-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE 5
90445-09058-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
DAMPER, LOCATING 2
4EW-24182-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#27
CLAMP
90464-14117-00
Superseded by 90464-15152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
