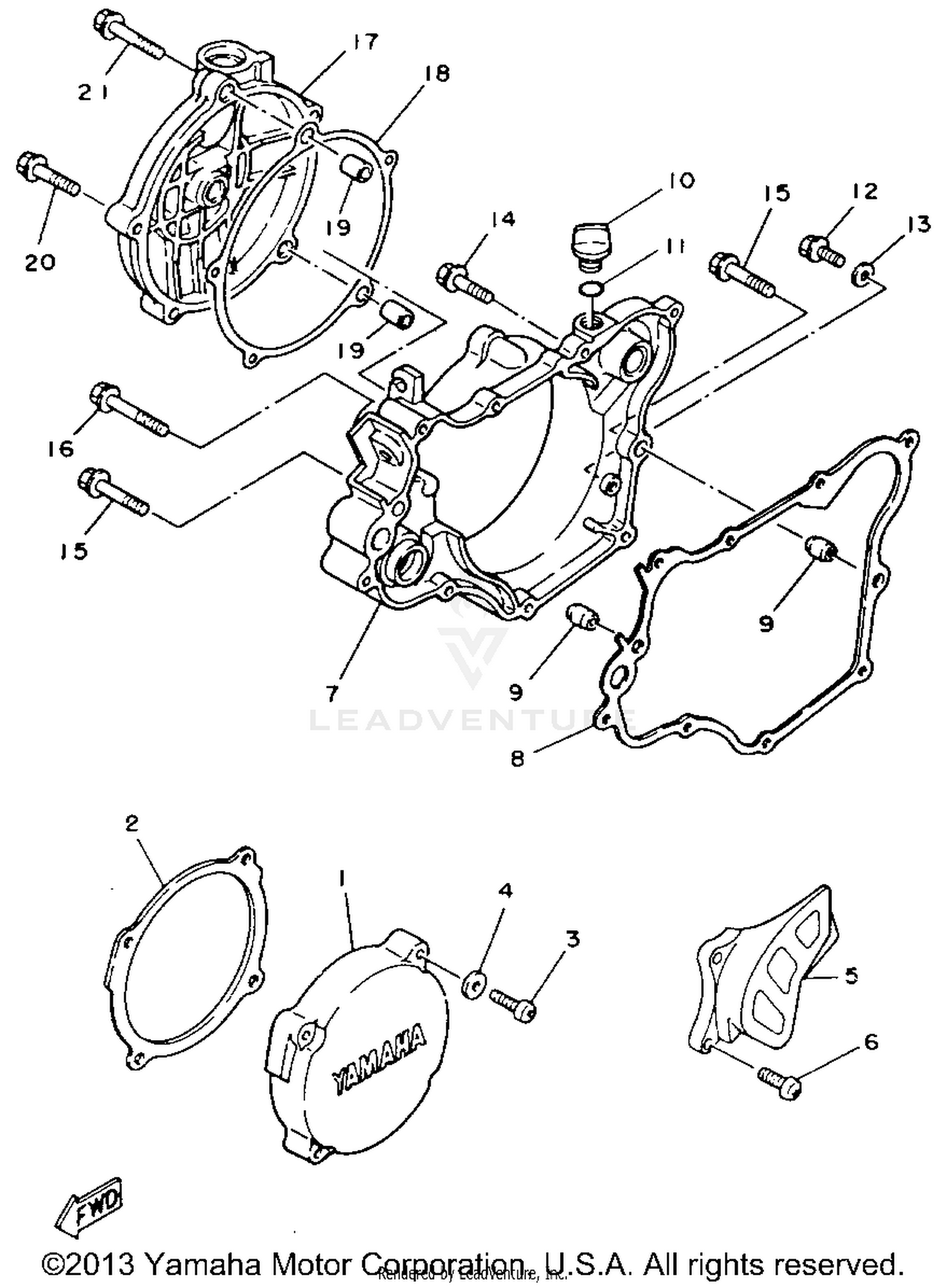

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
4DB-15411-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE COVER 1
4DB-15451-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 2
4EX-15421-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98502-06016-00
Superseded by 98580-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, CRANKCASE 3
3JD-15431-00-00
|
$221.99 | ||
|
Unavailable |
|||
|
#8
GASKET, CRANKCASE COVER 3
1LX-15462-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLUG, OIL LEVEL
1G8-15362-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
95023-06008-00
Superseded by 95024-06008-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLG.(SMALL HEAD)
95023-06035-00
Superseded by 95024-06035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (SMALL HEAD)
95023-06040-00
Superseded by 95024-06040-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER, GENERATOR
4EX-15415-00-00
|
$171.99 | ||
|
Unavailable |
|||
|
#18
GASKET, CARBURETOR COVER 2
3JD-15463-10-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (SMALL HEAD)
95023-06040-00
Superseded by 95024-06040-00
|
$10.49 | ||
|
Unavailable |
|||
