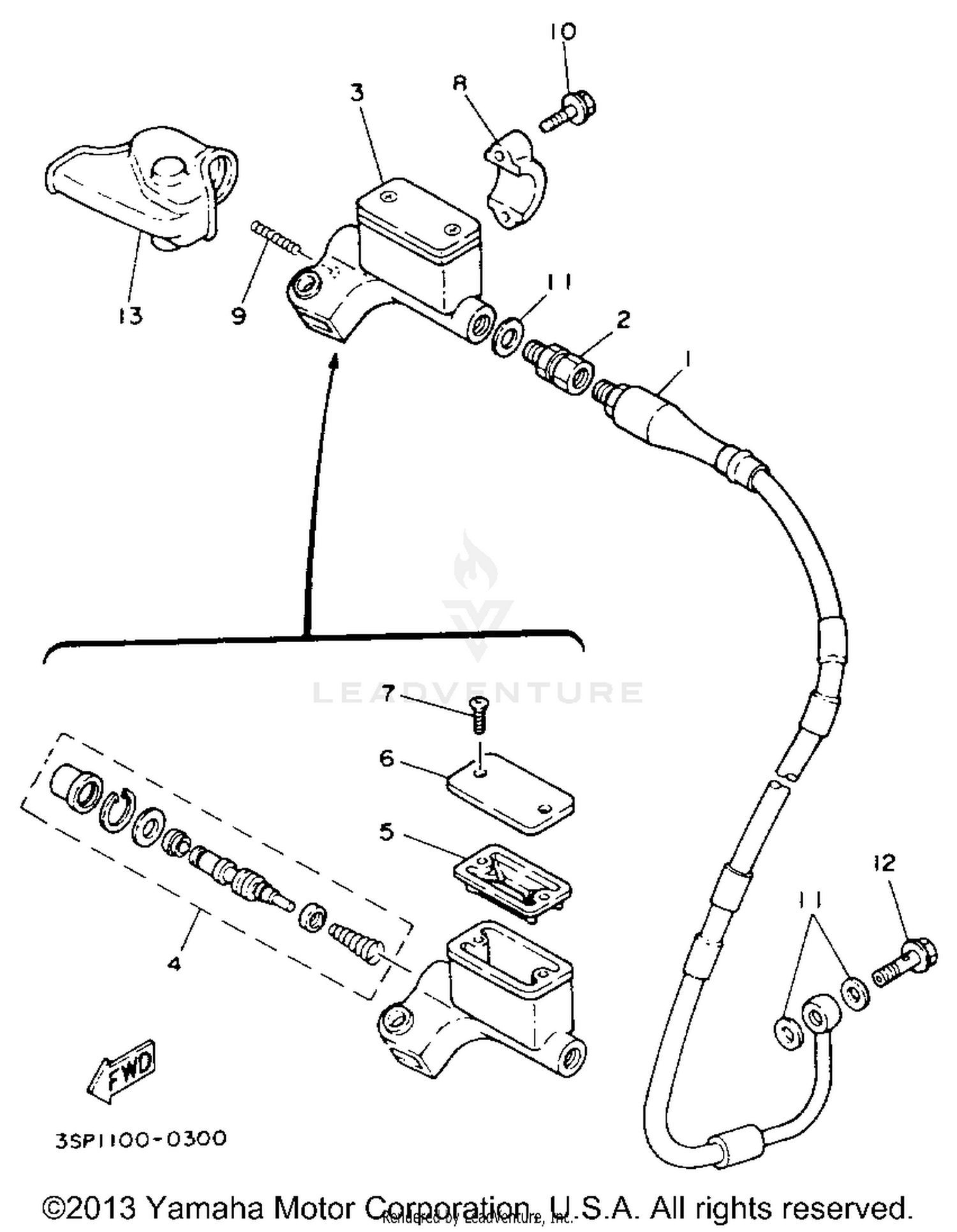

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, BRAKE 1 (4MX-25872-01-00)
4DA-25872-00-00
Superseded by 4MX-25872-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#2
JOINT
3LC-25885-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER SUB ASSY
3SP-25870-01-00
|
$380.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER KIT, MASTER
3SP-W0041-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, DIAPHRAGM
56A-25854-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, RESERVOIR
2VN-25852-01-00
Superseded by 2VN-25852-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-061G2-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, HANDLE LEVER 1
56A-26372-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
