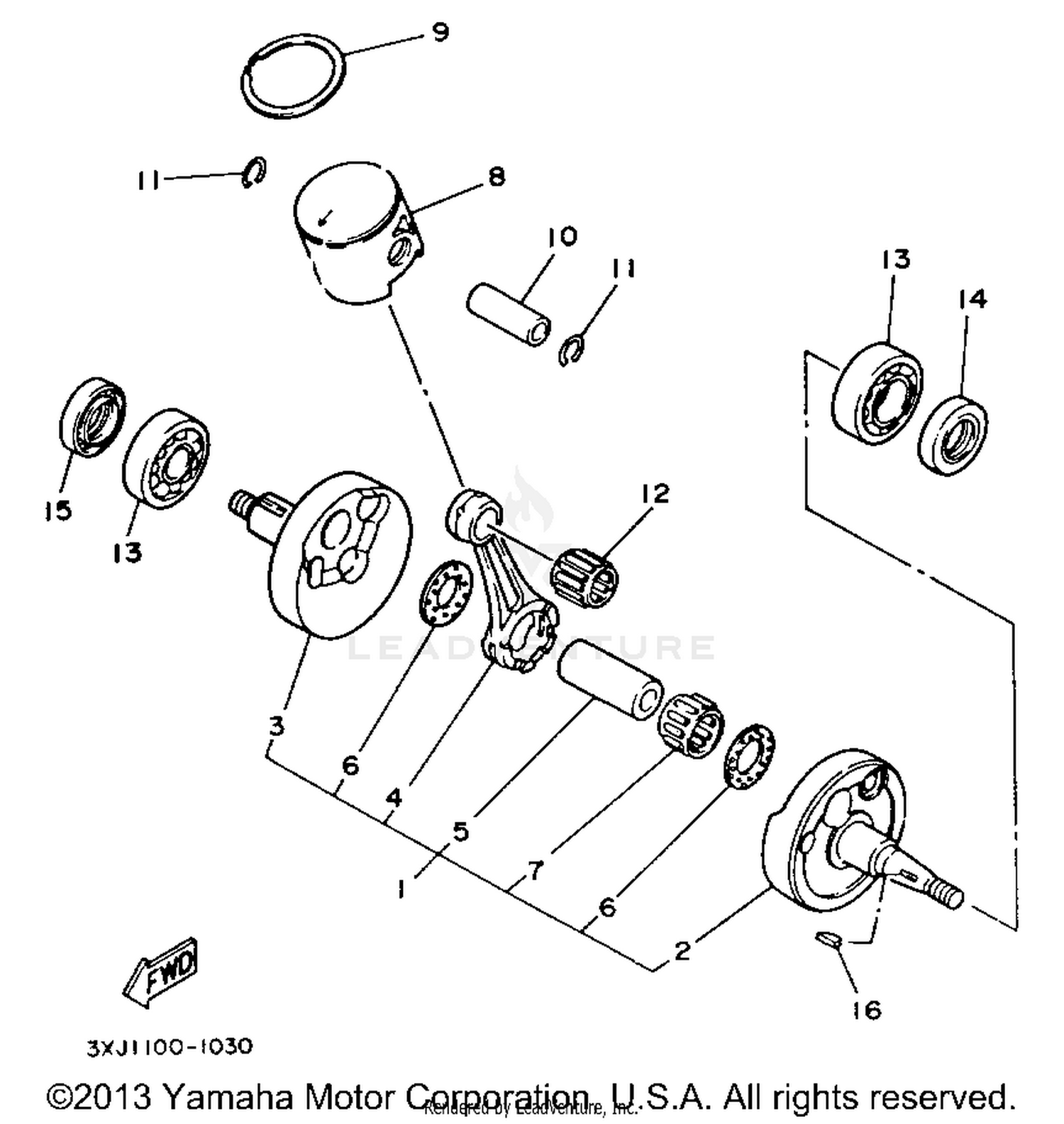

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
3XJ-11400-01-00
|
$731.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
3SR-11412-00-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
3XJ-11422-00-00
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
2HG-11651-00-00
Superseded by 4PE-11651-02-00
|
$118.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PIN, CRANK 1
3JD-11681-01-00
Superseded by 3JD-11681-10-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
90209-22257-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93310-522M4-00
Superseded by 93310-52238-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
4EX-11631-00-A0
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
4EX-11631-00-B0
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON (STD)
4EX-11631-00-D0
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON (STD)
4EX-11631-00-C0
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, PISTON
5X4-11611-02-00
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN, PISTON
137-11633-00-00
Superseded by 137-11633-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-17129-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING, CYLINDRICAL
93310-216L2-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37204-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-22363-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (93103-32099-00 )
93103-32171-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KEY, WOODRUFF
90280-03017-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
