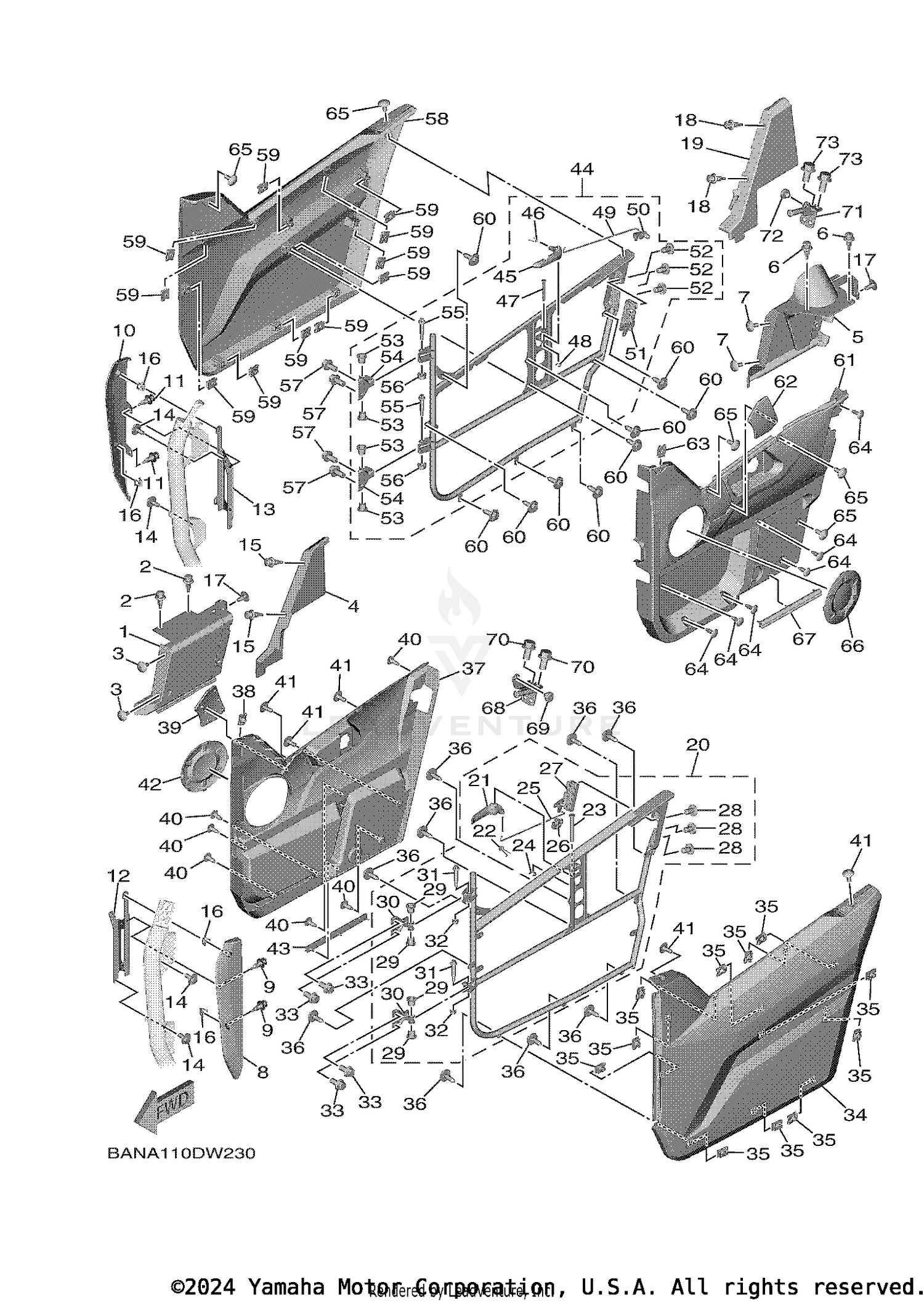

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 2
B4J-F1721-00-00
Superseded by B4J-F1721-01-00
|
$118.99 | ||
|
Unavailable |
|||
|
#2
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE 1
BAN-F2864-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SIDE 3
B4J-F1731-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
COVER 1
BAR-F198F-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#10
COVER 2
BAR-F198G-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#12
STAY, SIDE COVER 1
BAR-F172E-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, SIDE COVER 2
BAR-F174E-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#16
CLIP
90468-040A0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#19
COVER, SIDE 2
BAN-F2868-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FF. DOOR COMP. LH
B4J-K8504-00-00
Superseded by B4J-K8504-01-00
|
$238.99 | ||
|
Unavailable |
|||
|
#21
LEVER, LATCH 1
2HC-F17N1-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
2HC-F1742-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN
90249-05801-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
99002-04600-00
Superseded by 99080-04600-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD 1
B4J-F7247-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
. .CLIP, CABLE
BG4-F2805-00-00
Superseded by BG4-F2805-01-00
|
$2.35 | ||
|
Unavailable |
|||
|
#27
. .LOCK ASSY
B4J-F16A0-00-00
Superseded by B4J-F16A0-02-00
|
$58.99 | ||
|
Unavailable |
|||
|
#28
SCREW
90149-08805-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, SOLID
90381-08001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HINGE
B4J-F1796-01-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90109-068C9-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
TRIM, SIDE PANEL 1
BAR-K817H-00-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#37
PNL., DOOR FR. LH
B4J-K8557-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PROTECTOR 1
B4J-K811V-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#40
RIVET
90269-05073-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
LINING, SIDE COVER
B4J-F171J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
SEAL 2
B4J-F1735-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
FF. DOOR COMP. RH
B4J-K8505-00-00
Superseded by B4J-K8505-01-00
|
$238.99 | ||
|
Unavailable |
|||
|
#45
LEVER, LATCH 1
2HC-F17N1-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#46
SPRING
2HC-F1742-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#47
PIN
90249-05801-00
|
$2.55 | ||
|
Unavailable |
|||
|
#48
CLIP
99002-04600-00
Superseded by 99080-04600-00
|
$1.99 | ||
|
Unavailable |
|||
|
#49
ROD 2
B4J-F7248-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
. .CLIP, CABLE
BG4-F2805-00-00
Superseded by BG4-F2805-01-00
|
$2.35 | ||
|
Unavailable |
|||
|
#51
. .LOCK ASSY 2
B4J-F16B0-00-00
Superseded by B4J-F16B0-02-00
|
$58.99 | ||
|
Unavailable |
|||
|
#52
SCREW
90149-08805-00
|
$1.20 | ||
|
Unavailable |
|||
|
#53
BUSH, SOLID
90381-08001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#54
HINGE
B4J-F1796-01-00
|
$4.50 | ||
|
Unavailable |
|||
|
#55
BOLT
90109-068C9-00
|
$1.15 | ||
|
Unavailable |
|||
|
#56
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
|
#57
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#58
TRIM, SIDE PANEL 2
BAR-K817J-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#60
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#61
PNL., DOOR FR. RH
B4J-K8558-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
PROTECTOR 1
B4J-K811V-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#63
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#64
RIVET
90269-05073-00
|
$2.70 | ||
|
Unavailable |
|||
|
#65
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#66
LINING, SIDE COVER
B4J-F171J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#67
SEAL 2
B4J-F1735-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#68
HOOK, SIDE COVER 1
B4J-F1331-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
PLUG
90338-10801-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#70
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#71
HOOK, SIDE COVER 2
B4J-F1332-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
PLUG
90338-10801-00
|
$1.20 | ||
|
Unavailable |
|||
|
#73
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
