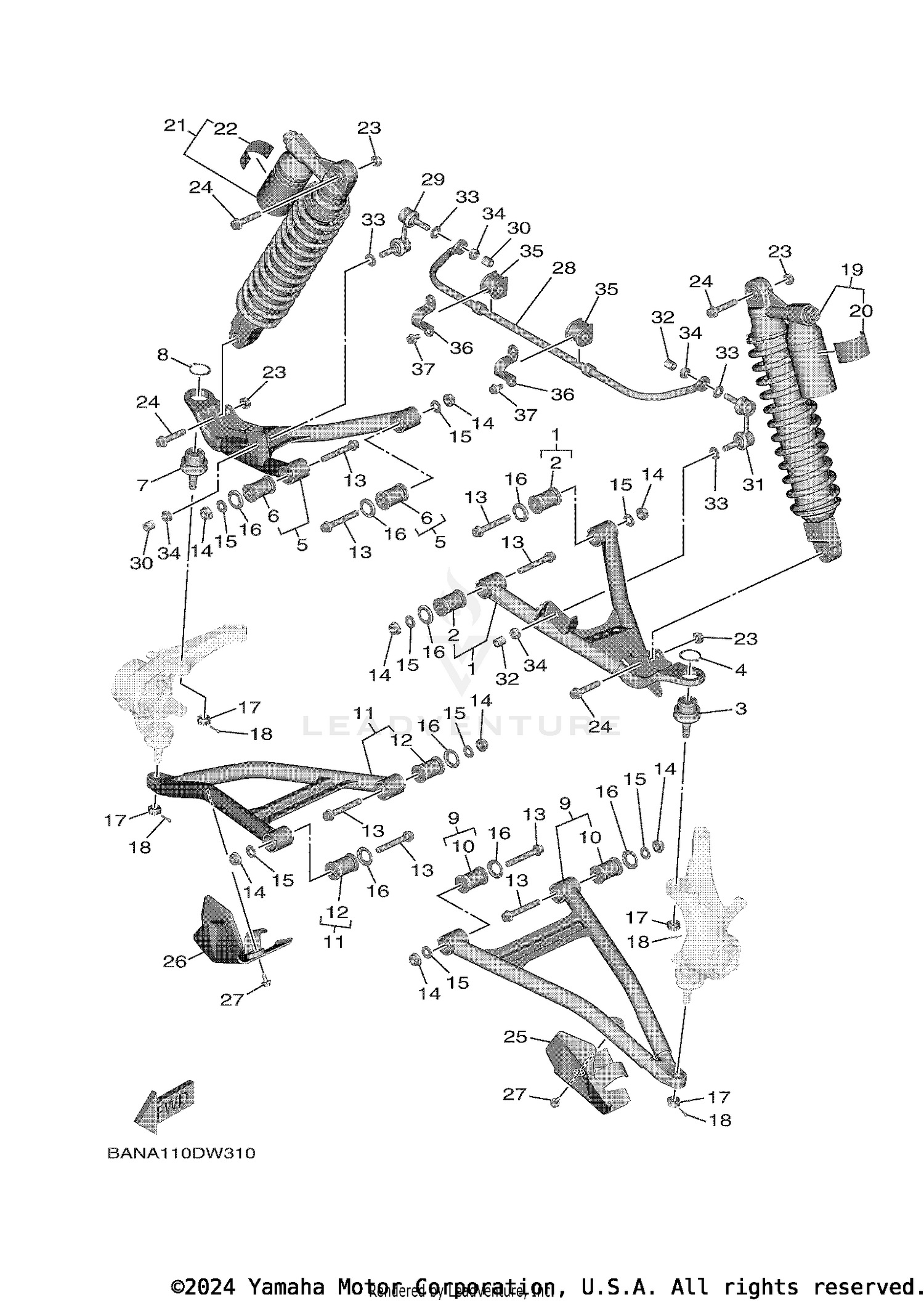

Front Suspension Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT UPPER ARM CO
BAR-F3540-02-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
BAR-F3526-00-00
Superseded by BAR-F3526-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#3
BALL JOINT 2
1XD-23579-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-32400-00
Superseded by 93410-32075-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FRONT UPPER ARM CO
BAR-F3550-02-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
BAR-F3526-00-00
Superseded by BAR-F3526-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#7
BALL JOINT 2
1XD-23579-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
99009-32400-00
Superseded by 93410-32075-00
|
$10.49 | ||
|
Unavailable |
|||
|
#9
FRONT LOWER ARM CO
BAR-F3570-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
BAR-F3526-00-00
Superseded by BAR-F3526-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#11
FRONT LOWER ARM CO
BAR-F3580-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH
BAR-F3526-00-00
Superseded by BAR-F3526-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-12095-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-12045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, THRUST 1
BAR-F3517-00-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN. COTTER
91402-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FR. SHOCK ABSORBER ASSY. ,1
B8K-F350A-90-00
Superseded by B8K-F350A-91-00
|
$603.99 | ||
|
Unavailable |
|||
|
#20
LABEL, WARNING
B4J-F2259-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
FR. SHOCK ABSORBER ASSY. ,2
B8K-F350B-90-00
Superseded by B8K-F350B-91-00
|
$603.99 | ||
|
Unavailable |
|||
|
#22
LABEL, WARNING
B4J-F2259-00-00
|
$1.95 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-10283-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, UNDER 1
2MB-F3123-00-00
Superseded by 2MB-F3123-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#26
COVER, UNDER 2
2MB-F3133-00-00
Superseded by 2MB-F3133-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#27
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAR, STABILIZER FR
B8K-F386E-01-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, STABILIZER 1
16B-2385L-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE (L15)
90445-13030-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
JOINT, STABILIZER 2
16B-2385M-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE (L15)
90445-13030-00
|
$0.50 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
Unavailable |
|||
|
#35
BUSH
BAN-F376B-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRKT., STABILIZER FR.
BG4-F386B-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
