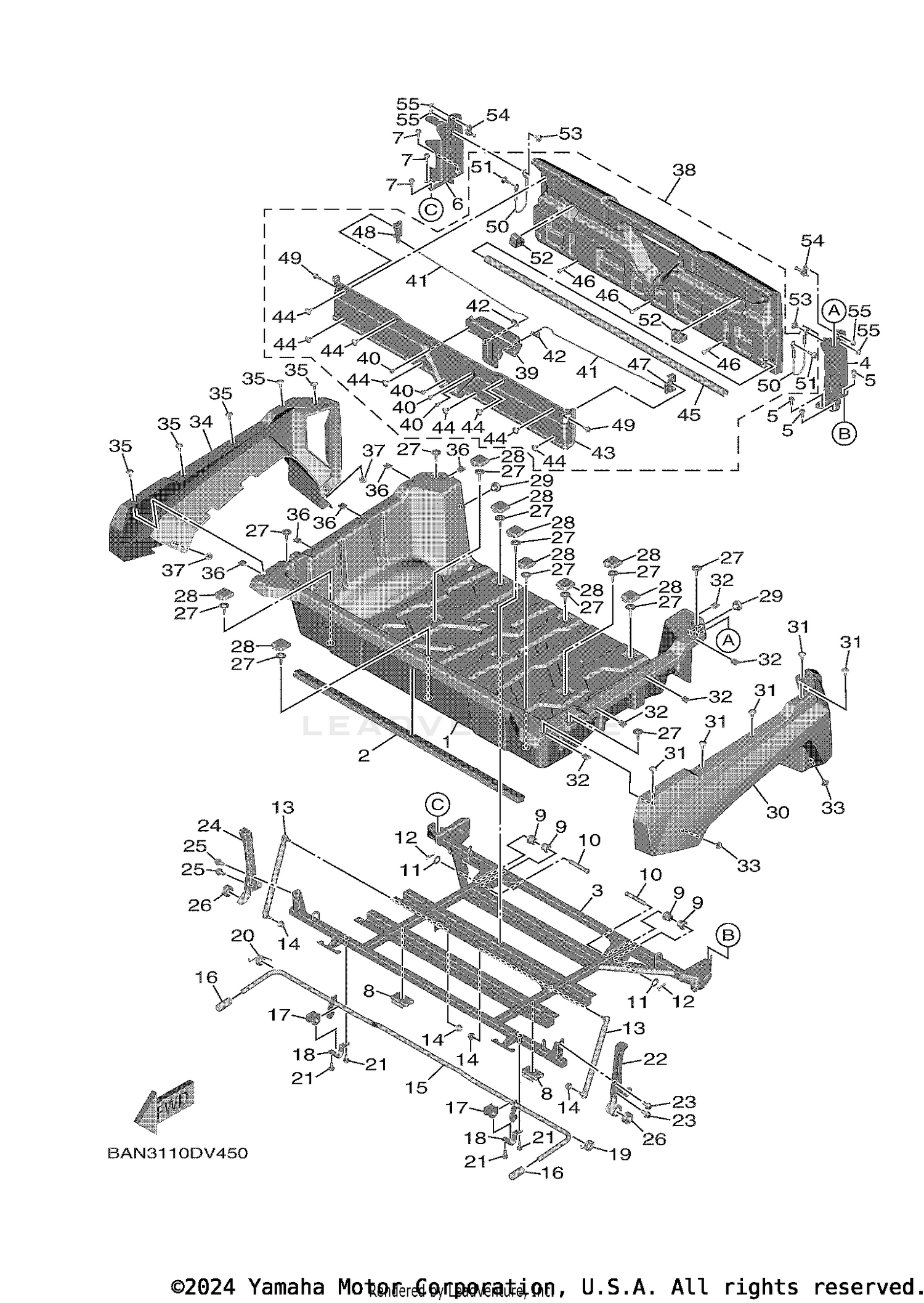

Carrier Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX
B8K-F1171-00-00
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR 3
B8K-F172S-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOX, BASE
B8K-F845C-10-00
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, FRONT GUARD 1
B8K-F8413-10-00
Superseded by B8K-F8413-11-00
|
$86.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STAY, FRONT GUARD 2
B8K-F8414-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
Unavailable |
|||
|
#8
DAMPER
B42-F113B-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH 1
JW6-F2123-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, TAPER
1XD-F7827-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-133E5-00
Superseded by 90201-14212-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90468-16191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER 1
B8K-F8415-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
95602-08200-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
LATCH ASSY
B8K-K7180-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, PROTECTOR END
B8K-K818M-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-01819-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRKT., TRUNCK 1
B8K-F84AS-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
B8K-F8489-00-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING 2
B8K-F848A-00-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
Unavailable |
|||
|
#22
BRACKET 3
B8K-F8476-10-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BRACKET 5
B8K-F8486-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
GROMMET
90480-25801-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90109-068A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
2MB-F143A-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG
90338-10801-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
PANEL, REAR FENDER
B8K-K8191-50-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#34
PANEL, REAR FENDER
B8K-K8192-50-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#37
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#38
REAR STORAGE LID C
BAN-K810N-10-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLE, LATCH
BG4-F389F-01-00
Superseded by BG4-F389F-02-00
|
$83.99 | ||
|
Unavailable |
|||
|
#40
BOLT, BUTTON HEAD
92017-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
ROD
B8K-F8478-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
. .CLIP, CABLE
BG4-F2805-00-00
Superseded by BG4-F2805-01-00
|
$2.35 | ||
|
Unavailable |
|||
|
#43
COVER
B8K-F331G-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT,HEX. SOCKET BUT
90111-06181-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#45
. .HINGE 2
B8K-F463F-01-00
Superseded by B8K-F463F-02-00
|
$44.99 | ||
|
Unavailable |
|||
|
#46
SCREW
90149-06846-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#47
LOCK ASSY
BG4-F16A0-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
LOCK ASSY 2
BG4-F16B0-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BLOT, FLANGE DEEP RE
95D32-06016-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#50
HOLDER, CABLE
B8K-K7195-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT
90109-06171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
DAMPER 2
BG4-F8416-10-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#54
BOLT, STUD
BG4-F4441-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
