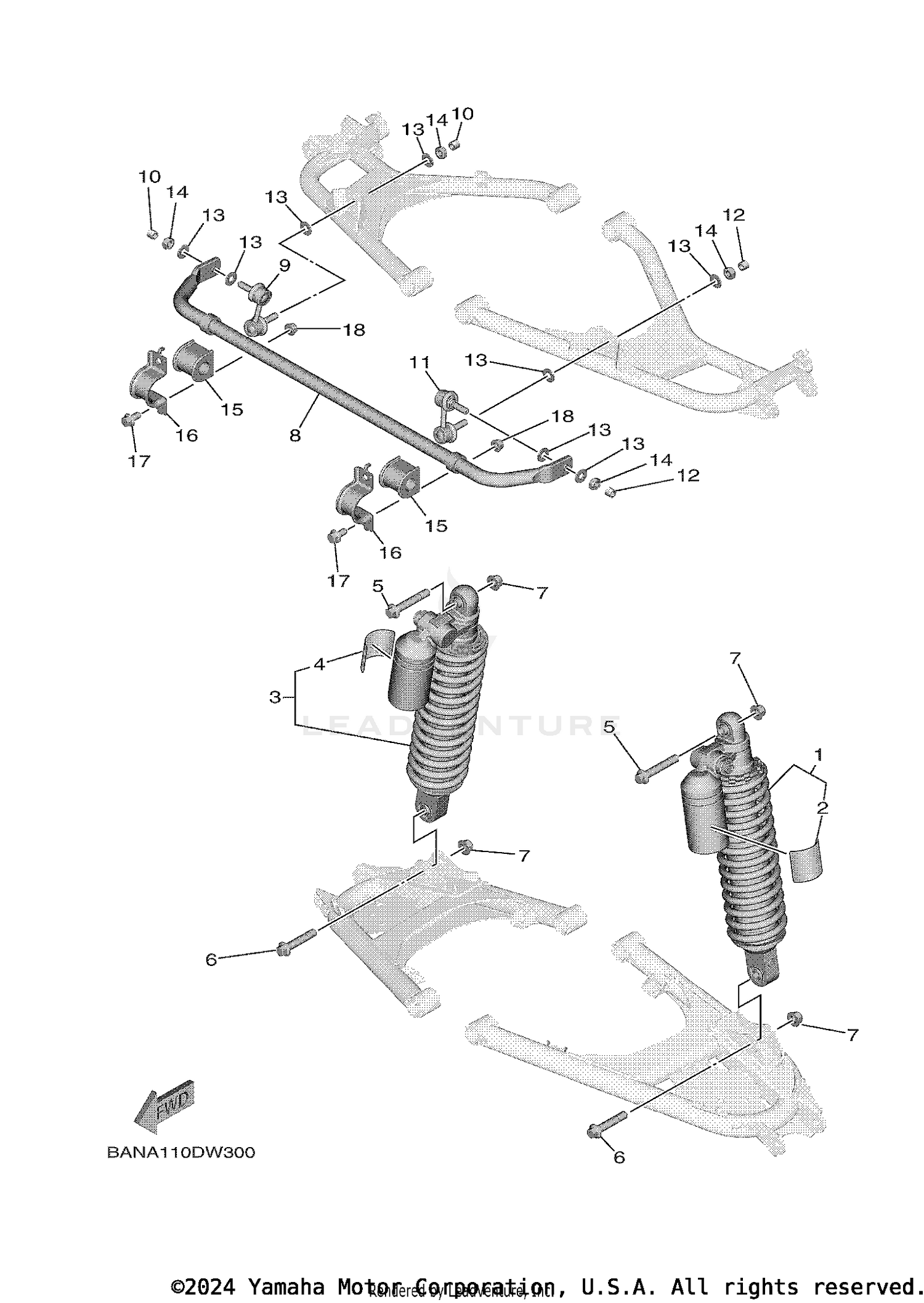

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR. SHOCK ABSORBER ASSY. ,1
B8K-F220T-90-00
Superseded by B8K-F220T-91-00
|
$620.99 | ||
|
Unavailable |
|||
|
#2
LABEL, WARNING
B4J-F2259-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
RR. SHOCK ABSORBER ASSY. ,2
B8K-F220U-90-00
Superseded by B8K-F220U-91-00
|
$535.99 | ||
|
Unavailable |
|||
|
#4
LABEL, WARNING
B4J-F2259-00-00
|
$1.95 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
90105-12056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-12055-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-12009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, STABILIZER
BG4-G7491-01-00
Superseded by BG4-G7491-02-00
|
$136.99 | ||
|
Unavailable |
|||
|
#9
JOINT, STABILIZER 1
16B-2385L-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L11)
90445-13029-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, STABILIZER 2
16B-2385M-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L11)
90445-13029-00
|
$0.30 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BUSH, STABILIZER F
BAR-F386G-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, STABILIZER FRONT
1XD-F386H-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-10025-00
Superseded by 95817-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
