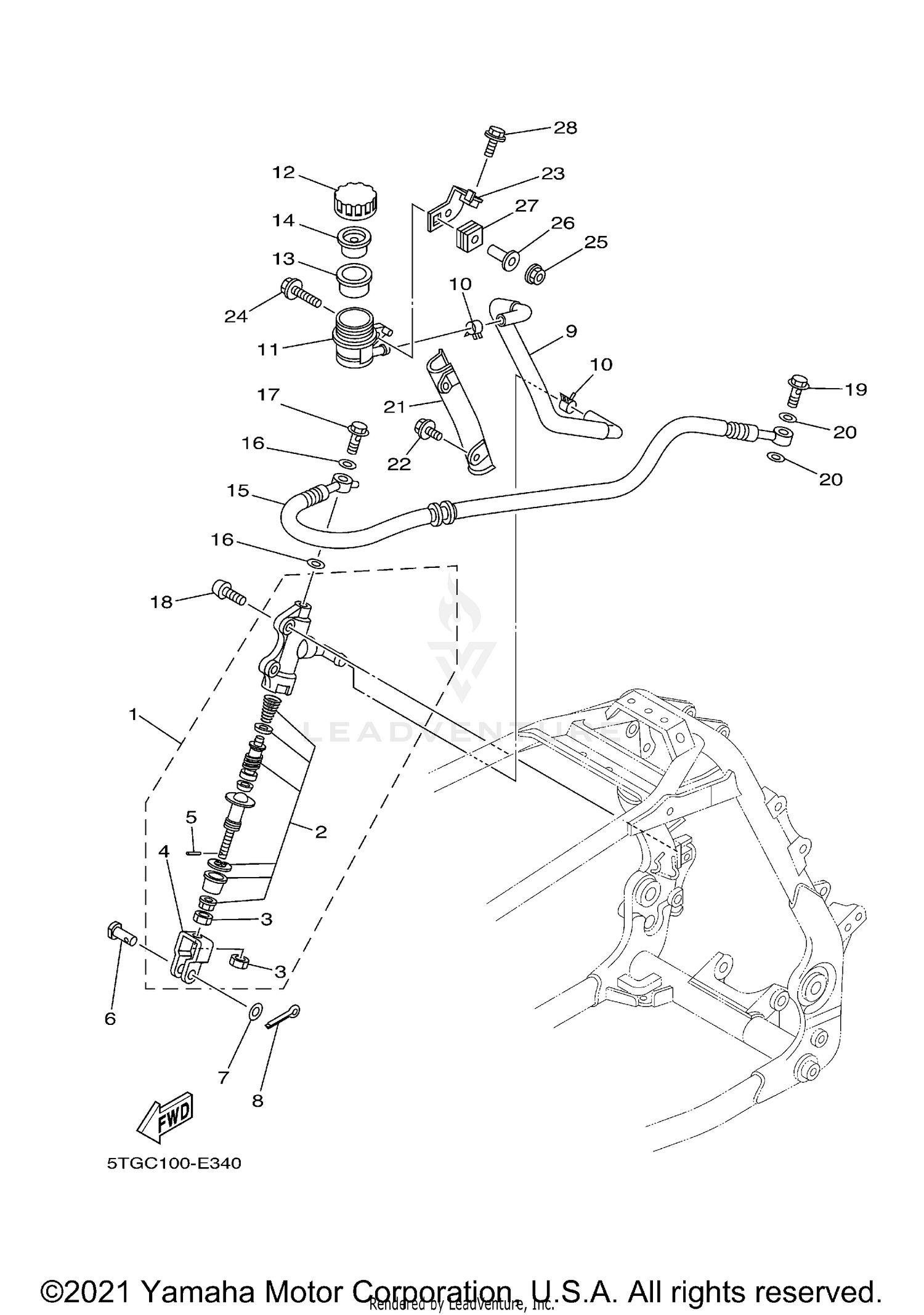

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR MASTER CYLINDER ASSY
5TG-2580E-20-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5TG-W0042-50-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
4SS-27218-00-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
2YK-27222-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, BRAKE ROD
3KW-27234-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
90240-08005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08083-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, RESERVOIR
5TG-25895-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RESERVOIR
5TG-25894-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RESERVOIR
3XP-25852-50-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, DIAPHRAGM
2VN-25855-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, BRAKE
5TG-25874-30-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92012-08025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, UNION
90401-10015-00
|
$12.49 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Unavailable |
|||
|
#21
HOLDER, BRAKE HOSE
5TG-2587A-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, RESERVE TANK
5TG-21228-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, WASHER BASED
90105-05331-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-05016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET
90480-10011-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
