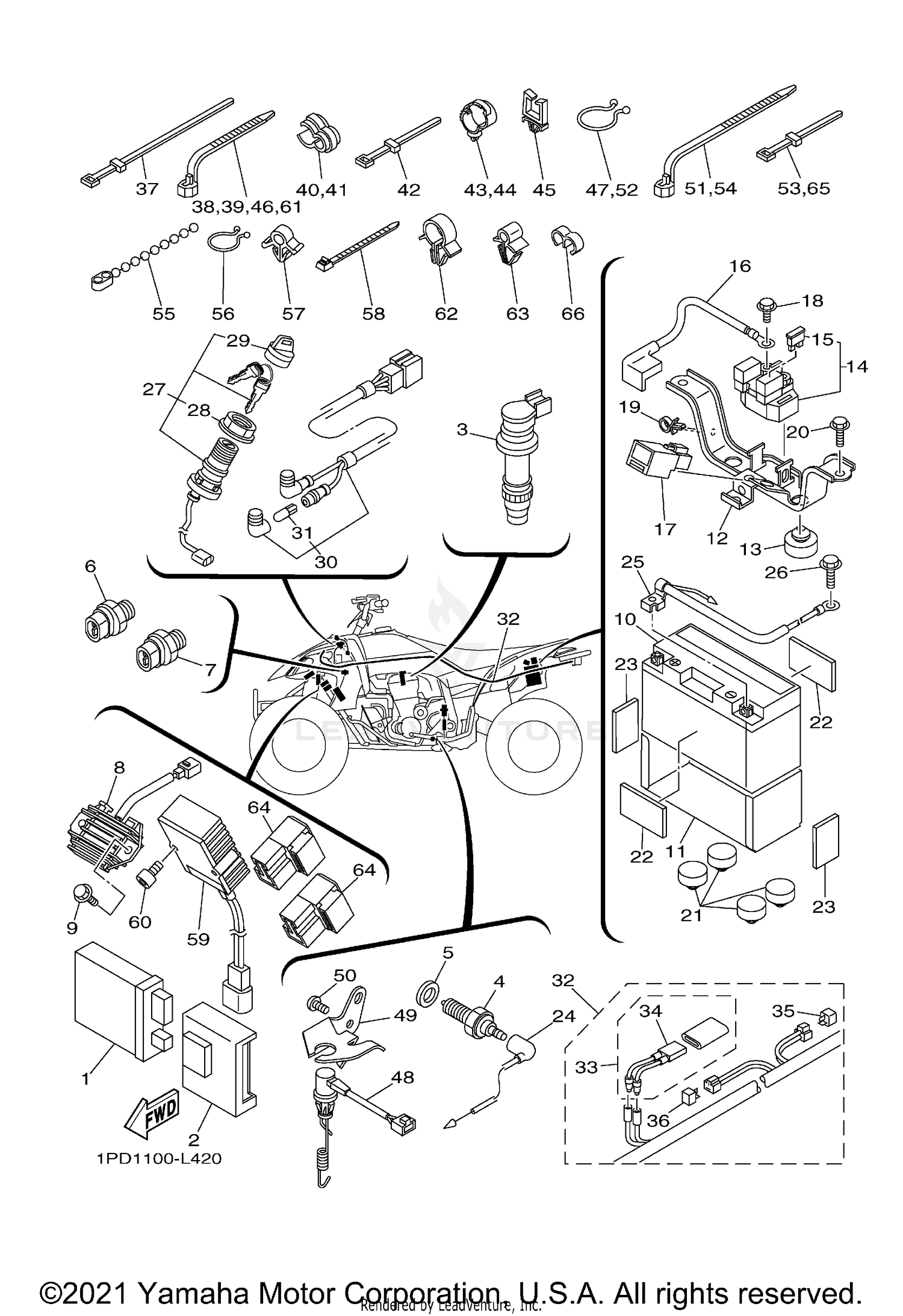

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
1PD-85540-00-00
|
$331.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
5TG-85546-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
5TA-82310-10-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
THERMO SWITCH ASSY
5EB-82560-00-00
Superseded by 5EB-82560-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
THERMO SWITCH ASSY
5LP-82560-00-00
Superseded by 5LP-82560-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RECTIFIER & REGULATOR ASSY
1PD-81960-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
GT7B4 GS BATTERY -
4UC-82100-01-00
Superseded by GT7-B4000-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT, BATTERY
5D3-82122-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, BATTERY
5TG-82128-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD, BATTERY
5TG-82121-10-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
STARTER RELAY ASSY (RC19-032)
5JW-81940-02-00
|
$133.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
FUSE (15A-BLUE)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, PLUS LEAD
5TG-82115-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY ASSY
1RL-81950-92-00
Superseded by 12R-81950-02-00
|
$76.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-15157-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-06084-00
|
$4.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PAD, BATTERY
5TG-82121-10-00
|
$5.00 | ||
|
Unavailable |
|||
|
#22
SEAT, BATTERY
5D3-82123-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER
22F-2139X-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, LEAD
5TG-82541-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WIRE, MINUS LEAD
5TG-82116-00-00
Superseded by 5TG-82116-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
MAIN SWITCH ASSY
5TG-82510-01-00
Superseded by 5TG-82510-02-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CAP, KEY
3HN-82579-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PILOT LIGHT ASSY
5TG-83530-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WIRE HARNESS ASSY
1PD-82590-00-00
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCUIT BREAKER ASSY
5ND-82180-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
THERMO SWITCH ASSY
5ND-82560-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
DIODE ASSY
4WA-81980-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
DIODE ASSY
3WP-81980-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#40
CLAMP
90464-15065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-15065-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90464-20181-00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
90464-20181-00
|
$4.72 | ||
|
Unavailable |
|||
|
#45
CLAMP
90464-20159-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#47
CLAMP
90464-30040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
STOP SWITCH ASSY
5TG-82530-10-00
Superseded by 5TG-82530-11-00
|
$31.99 | ||
|
Unavailable |
|||
|
#49
STAY, STOP SWITCH
5TG-2144G-20-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW, BIND
98902-06012-00
Superseded by 98980-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLAMP
90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#52
CLAMP
90464-30040-00
|
$9.49 | ||
|
Unavailable |
|||
|
#53
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$5.00 | ||
|
Unavailable |
|||
|
#54
CLAMP
90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#55
CLAMP
90464-20031-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLAMP
90464-48174-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLAMP
90465-13M11-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
RESISTOR ASSY
5TG-85370-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#62
CLAMP
90464-15157-00
|
$9.49 | ||
|
Unavailable |
|||
|
#63
CLAMP
90464-48174-00
|
$3.80 | ||
|
Unavailable |
|||
|
#64
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$5.00 | ||
|
Unavailable |
|||
|
#66
CLAMP
90464-09M31-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
