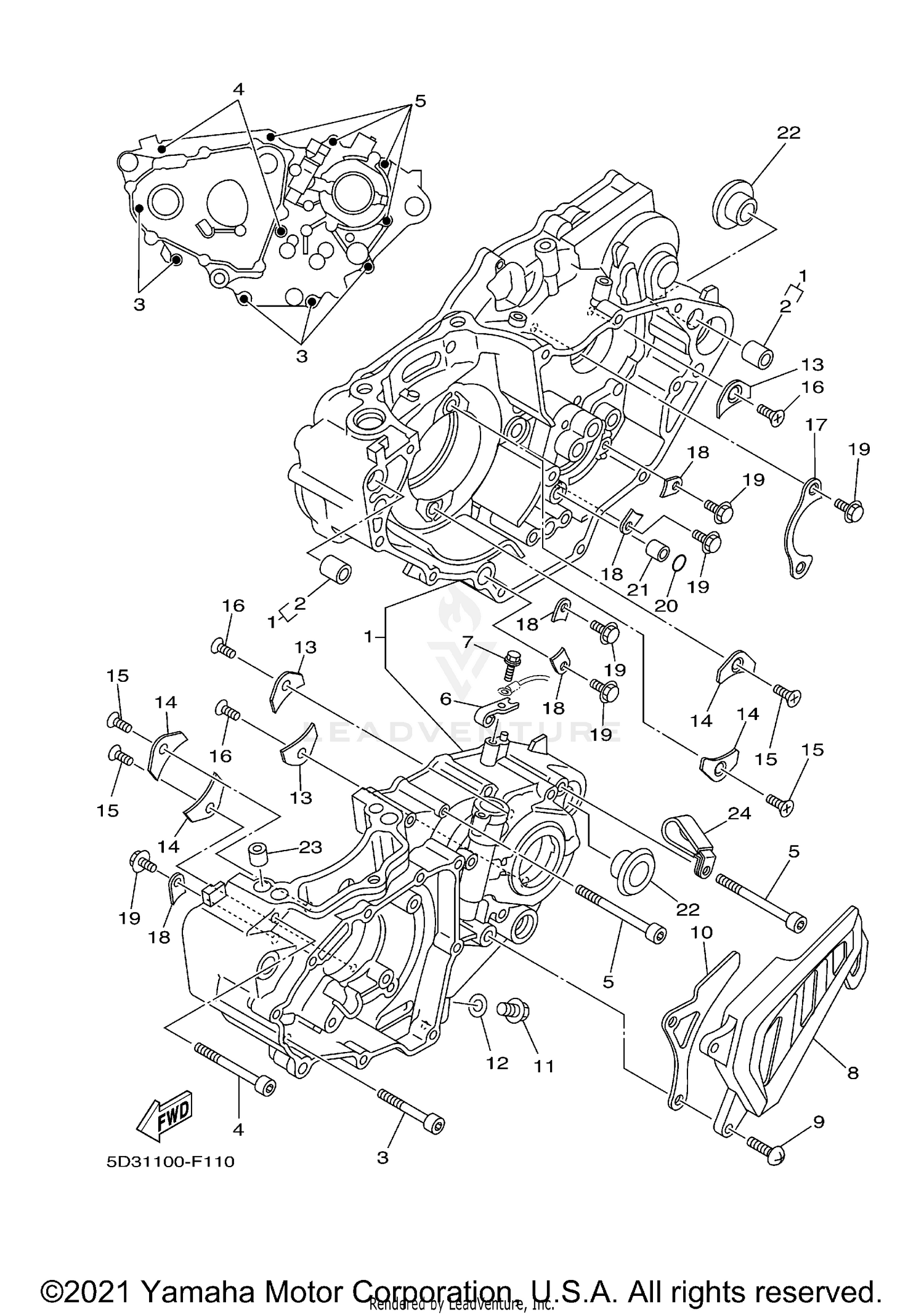

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5TG-15100-01-00
|
$772.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91314-06050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
91314-06060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91314-06075-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, CLUTCH CABLE
5D3-15441-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE 2
5TA-15421-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98512-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, CHAIN
5TA-17466-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95022-10016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE, BEARING COVER
4JT-15381-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BEARING COVER
5BE-15383-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
90151-06071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06074-00
Superseded by 90151-06052-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, COVER
4L0-17471-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, STOPPER 2
5DH-18562-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06081-00
Superseded by 95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING
93210-10197-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
COLLAR
90387-164N2-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLAMP
90461-10011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
