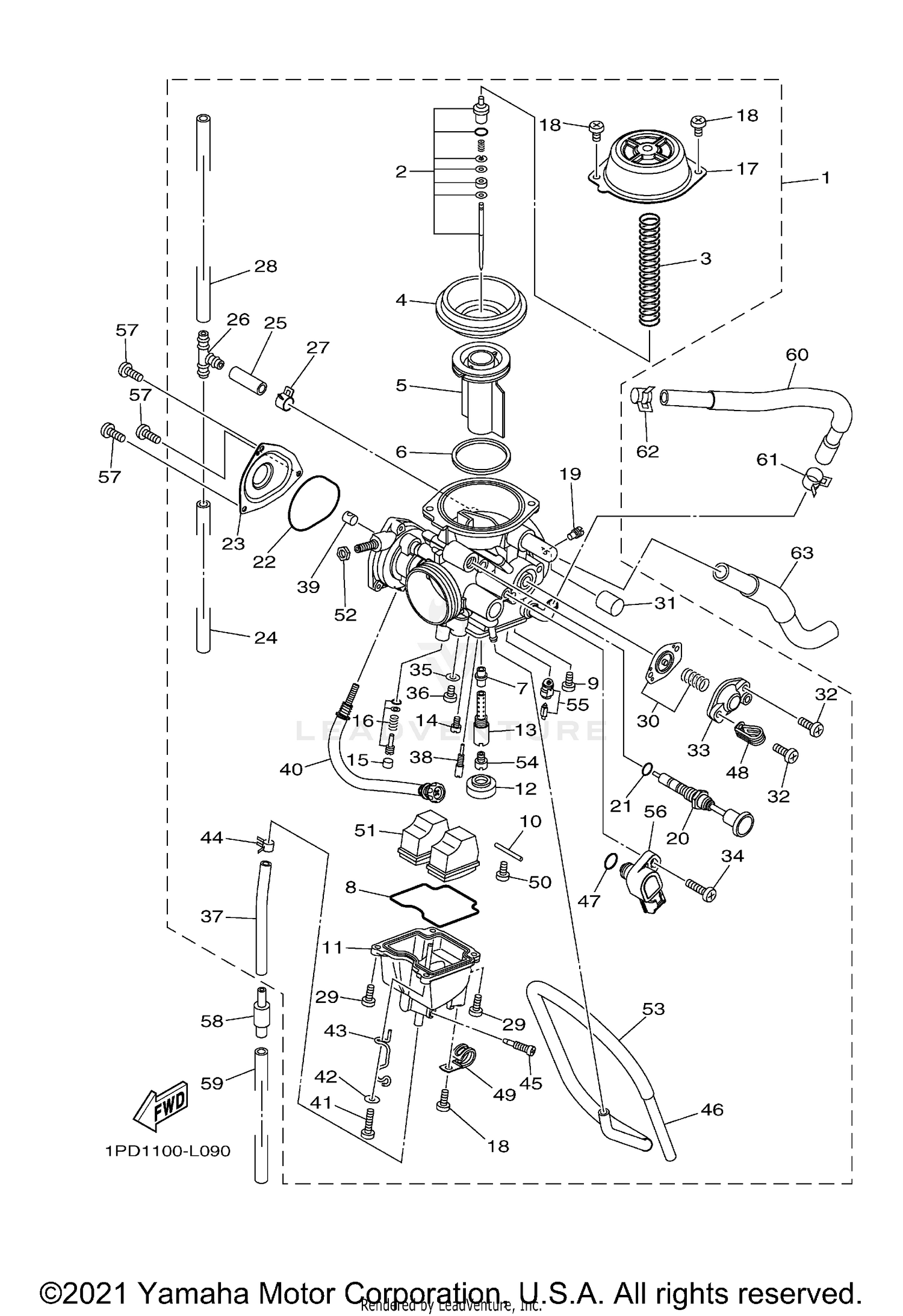

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
1PD-14901-00-00
|
$673.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE SET
1PD-1490J-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, DIAPHRAGM
5LV-14933-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
1PD-24411-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, THROTTLE
5KM-14912-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING
5KM-14918-00-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NOZZLE, MAIN
5DM-14141-30-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
5DM-14561-00-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
1FN-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, FLOAT
127-14186-00-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, FLOAT CHAMBER
1PD-14981-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, MAIN JET
5V7-14153-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER
1PD-14261-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, POWER (# 55)
3G2-14231-11-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PILOT SCREW SET
1PD-14105-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, DIAPHRAGM
5KM-14958-10-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98507-05008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#105)
1HX-14231-21-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUNGER, STARTER
1PD-14993-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
1AE-14147-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
4WV-14147-10-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COVER 1
1PD-14293-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE
1PD-14197-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE
1PD-14197-10-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, JOINT 1
3H3-24376-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, PIPE
4BP-14139-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE
1PD-14197-20-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98507-04010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
DIAPHRAGM SET 5
5KM-1490H-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP
5KM-14968-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, WITH WASHER
97607-04114-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, CARBURETOR
5AP-14280-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
21C-14216-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
256-14956-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
3DM-14216-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE
4DG-14987-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
JET, PILOT (# 47.5)
4KM-14142-47-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
GUIDE, CABLE END
1UY-14155-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
THROTTLE SCREW SET
1PD-14103-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, PAN HEAD
98507-04014-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
5KM-14937-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP
90467-09026-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
PIPE
1PD-14197-30-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING
5YP-14561-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90461-06087-00
Superseded by 3XV-14243-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#49
PLATE
3JC-14146-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW, PAN HEAD
98507-04008-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#51
FLOAT
5DM-14985-00-00
|
$80.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
NUT, CABLE ADJUSTING
522-14161-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
PIPE
1PD-14197-40-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
JET, MAIN (#152.5)
620-1423A-81-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
NEEDLE VALVE SET
1PD-14107-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
THROTTLE SENSOR ASSY
1PD-85885-00-00
|
$328.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, HEXAGON SOCKET HEAD
91312-04006-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#58
PIPE
24W-14193-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
HOSE
91A20-07010-00
Superseded by 91A21-07020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
PIPE, FUEL 1
5TG-24311-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
CLIP
90467-120A5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLIP
90467-100A2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
PIPE
1PD-14349-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
