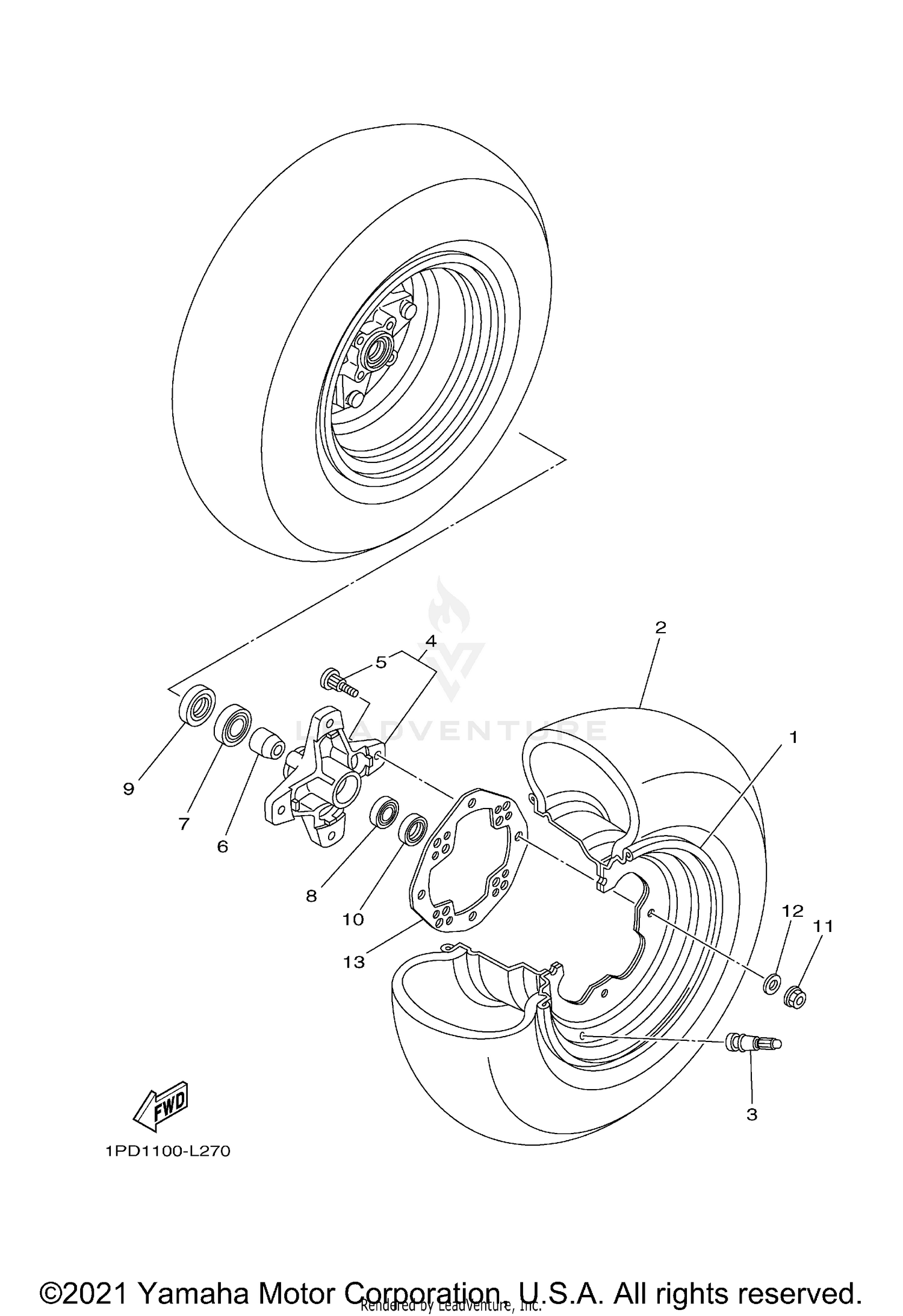

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
1S3-25180-00-00
Superseded by 1S3-25180-00-YX
|
$290.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT21X7-10 KT851B T/L)
94107-10020-00
|
$120.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, FRONT
1S3-25111-00-00
Superseded by 1PE-F5111-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SERRATION
90114-10006-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, BEARING
5LP-25117-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-00446-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20231-00
|
$24.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93105-26026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-22216-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95702-10500-00
Superseded by 95704-10500-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, PLATE
1S3-25127-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
