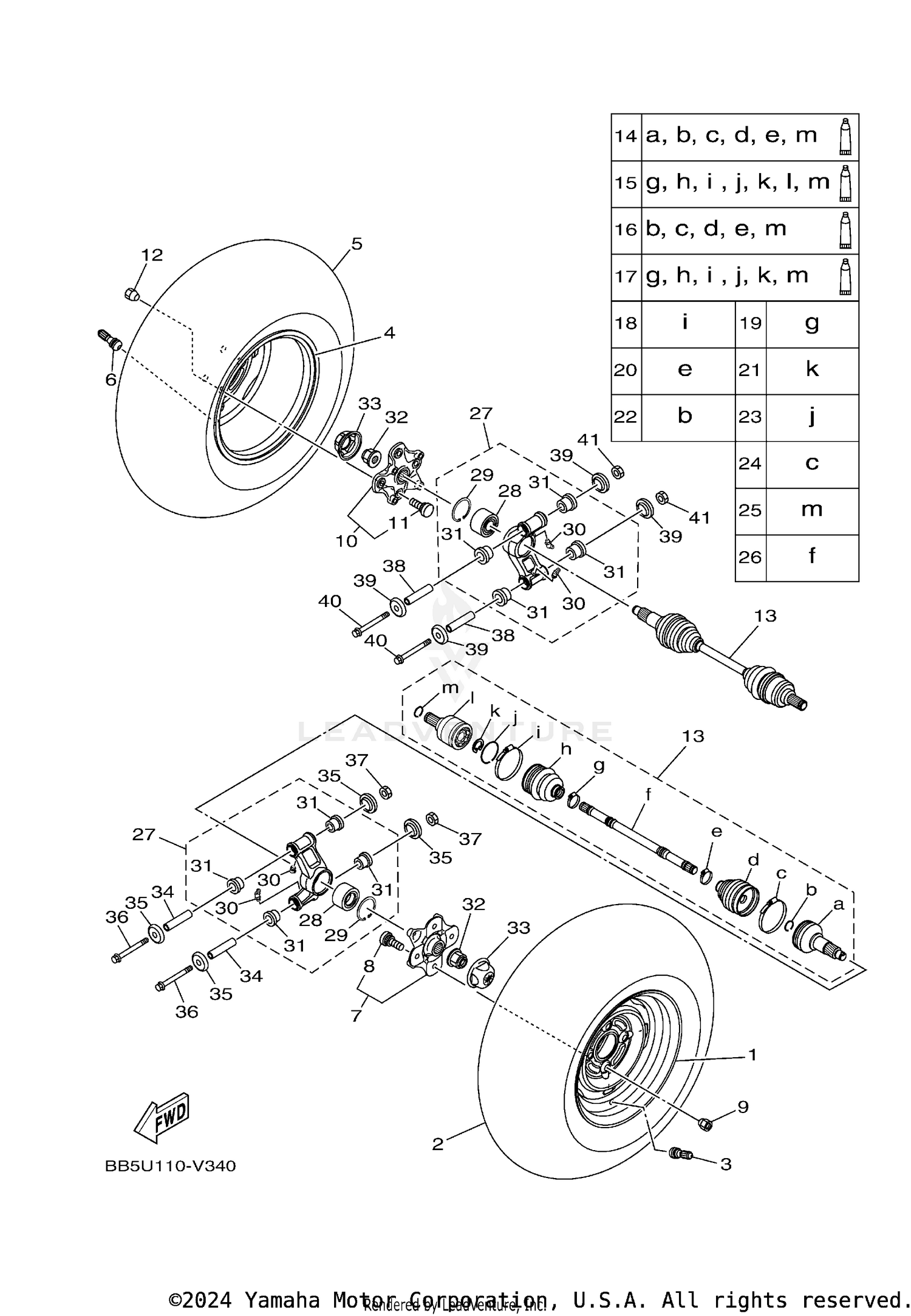

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
B16-F5390-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT25X10-12 CU906 4PR TL)
94110-12821-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR WHEEL COMP.
B16-F5390-00-00
|
$214.99 | ||
|
Unavailable |
|||
|
#5
TIRE (AT25X10-12 CU906 4PR TL)
94110-12821-00
|
$177.99 | ||
|
Unavailable |
|||
|
#6
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
HUB ASSY 2
B16-F510D-02-00
Superseded by B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#8
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-10022-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
HUB ASSY 2
B16-F510D-02-00
Superseded by B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#11
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Unavailable |
|||
|
#12
NUT
90179-10022-00
|
$4.10 | ||
|
Unavailable |
|||
|
#13
REAR DRIVE SHAFT ASSY
BB5-2531H-01-00
|
$264.99 | ||
|
Unavailable |
|||
|
#14
. .BALL JOINT SET
28P-2510F-10-00
|
$452.99 | ||
|
Unavailable |
|||
|
#15
. .DOUBLE OFF SET JOINT
28P-2530V-10-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
. .BOOT SET (BALL JOINT)
28P-2510G-10-00
|
$64.99 | ||
|
Unavailable |
|||
|
#17
. .BOOT SET(DOUBLE OFFSET JOINT
28P-2510H-10-00
|
$62.99 | ||
|
Unavailable |
|||
|
#18
BOOT BAND(DOUBLE OFFSET JOINT)
3B4-2511H-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT BAND (SMALL)
3B4-2512G-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT BAND (SMALL)
28P-2512G-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SNAP RING
3B4-2512J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
3B4-2512H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
3B4-25182-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT BAND(DOUBLE OFFSET JOINT)
28P-2511H-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, SPRING
3B4-2536E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHAFT
BB5-2518E-10-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
REAR KNUCKLE ASSY.,2
BB5-F532F-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93305-00602-00
|
$110.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CIRCLIP
99009-55500-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NIPPLE, GREASE
93700-06009-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH, SOLID
90381-17067-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
NUT
90179-20016-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, WHEEL
1HP-F512A-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPACER
5KM-23448-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
90105-10212-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SPACER
5KM-23448-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#39
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE
90105-10212-00
|
$8.49 | ||
|
Unavailable |
|||
|
#41
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
Unavailable |
|||
