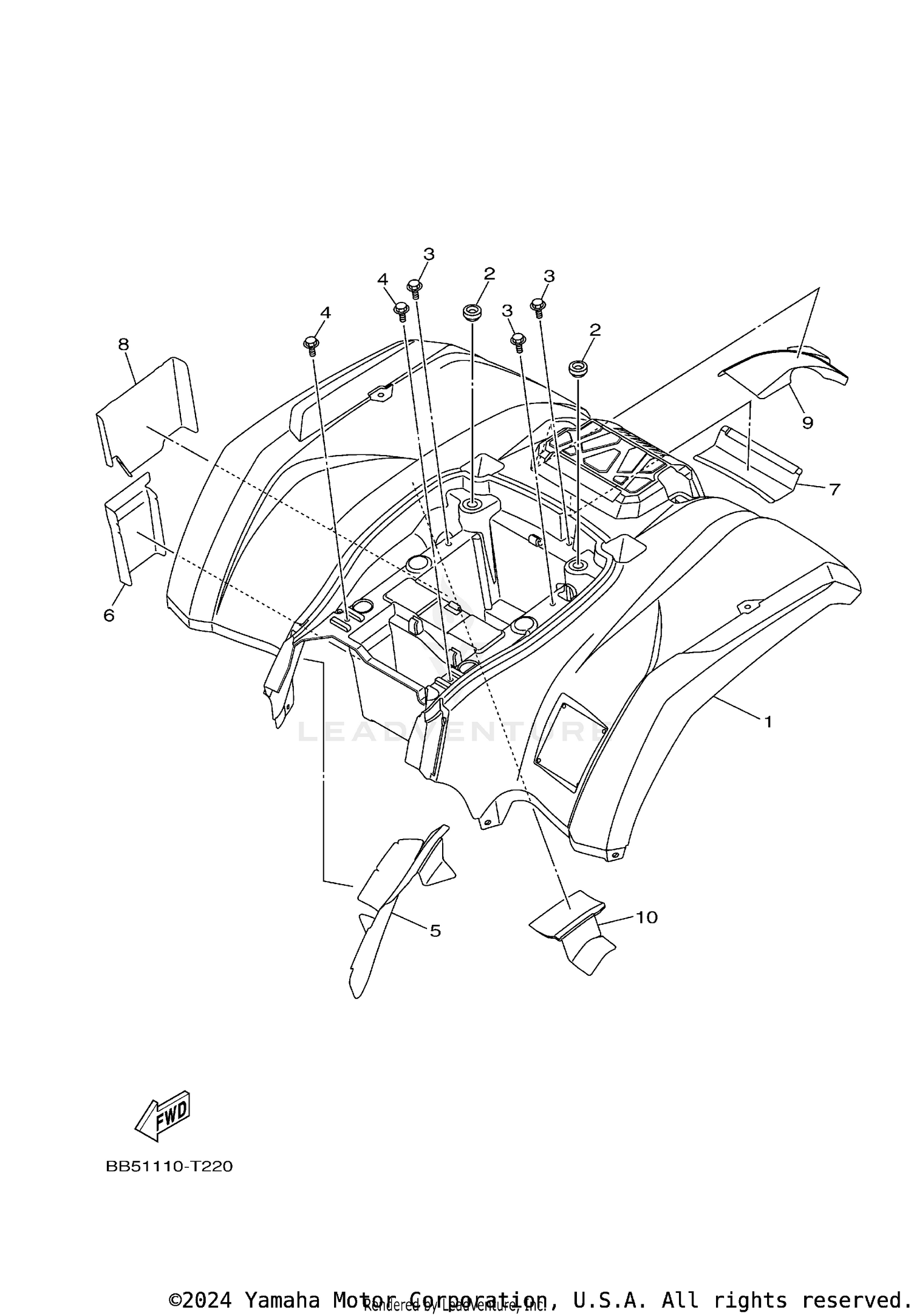

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR FENDER ASSY
B5R-F1600-40-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
REAR FENDER ASSY
B5R-F1600-70-00
|
$258.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-16807-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06831-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, REAR FENDER 1
BB5-F163A-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, REAR FENDER 2
BB5-F163E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR
BB5-F1652-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, REAR FENDER 3
BB5-F163F-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL 1
BB5-F1732-02-00
Superseded by BB5-F1732-03-00
|
$12.49 | ||
|
Unavailable |
|||
|
#10
SEAL 3
BB5-F173M-02-00
Superseded by BB5-F173M-03-00
|
$9.49 | ||
|
Unavailable |
|||
