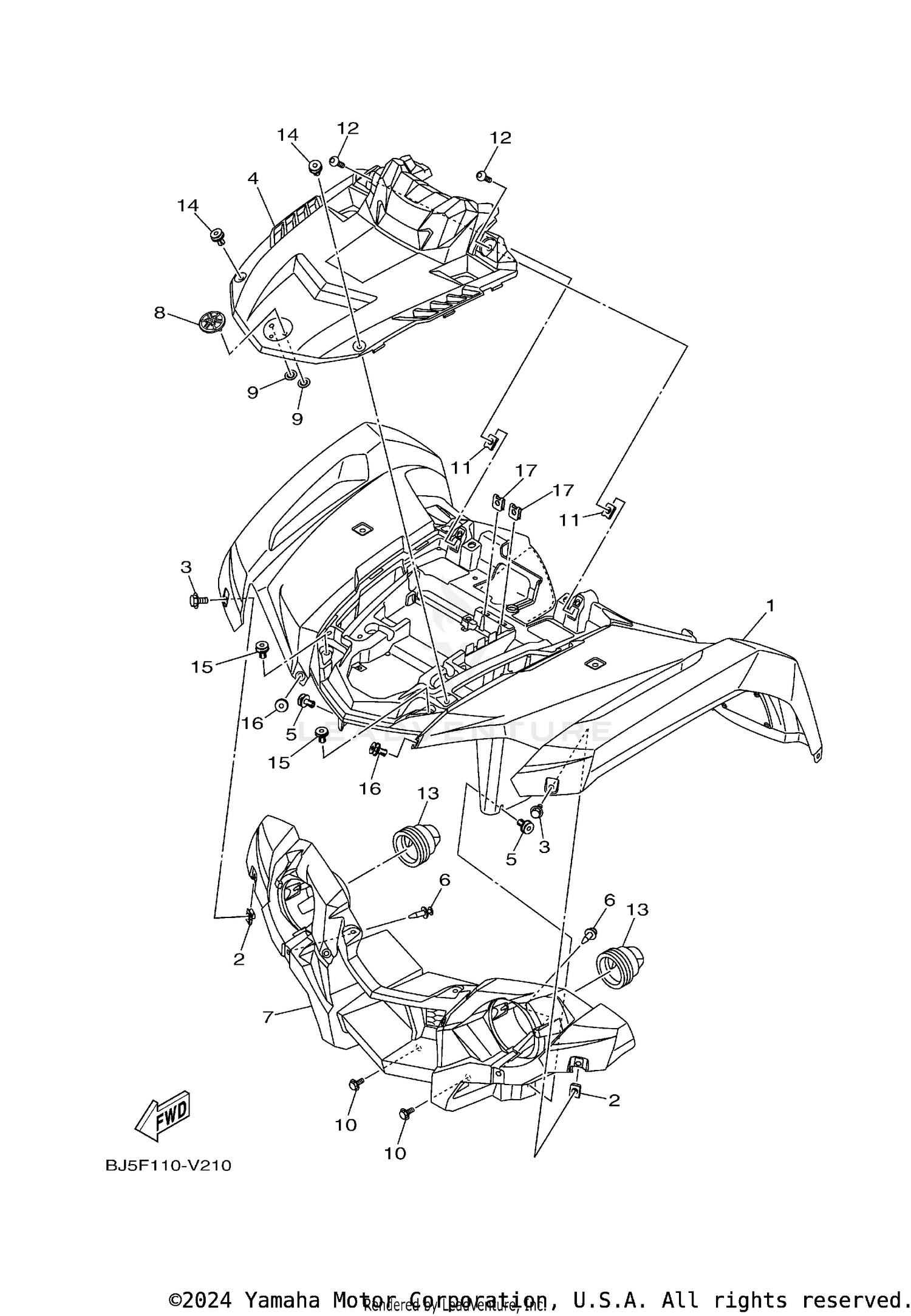

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
BB5-F1500-L0-00
Superseded by BB5-F1500-L2-00
|
$329.99 | ||
|
Unavailable |
|||
|
#1
FRONT FENDER ASSY
BB5-F1500-21-00
Superseded by BB5-F1500-22-00
|
$148.99 | ||
|
Unavailable |
|||
|
#2
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
PANEL, FRONT
BB5-F3391-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RIVET
90269-06800-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GRILLE, FRONT
BB5-F8309-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUNING FORK MARK
1XD-F175B-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPRING
90183-06071-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
90109-06043-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-06084-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
5UH-F8349-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#15
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#16
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#17
NUT, SPRING
90183-05008-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
