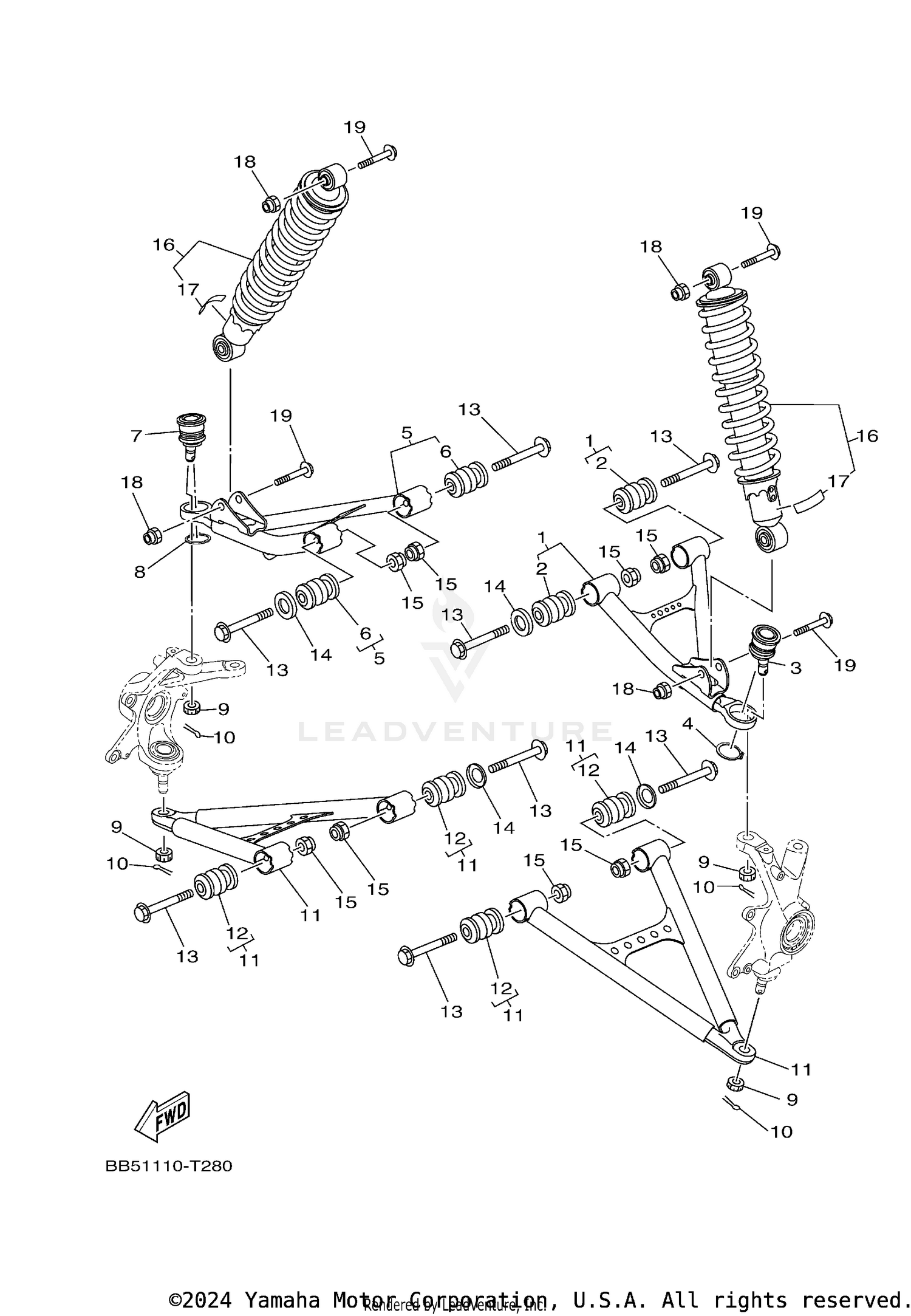

Front Suspension & Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT UPPER ARM COMP. (LEFT)
BB5-F3540-02-00
|
$75.99 | ||
|
Unavailable |
|||
|
#2
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FRONT UPPER ARM COMP. (RIGHT)
BB5-F3550-02-00
|
$71.99 | ||
|
Unavailable |
|||
|
#6
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#7
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN. COTTER
91402-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FRONT LOWER ARM COMP. (LEFT)
BB5-F3570-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#12
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95812-10070-00
Superseded by 95817-10070-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHOCK ABSORBER ASSY 2
BB5-F3390-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL, WARNING
BB5-F2259-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-10841-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
