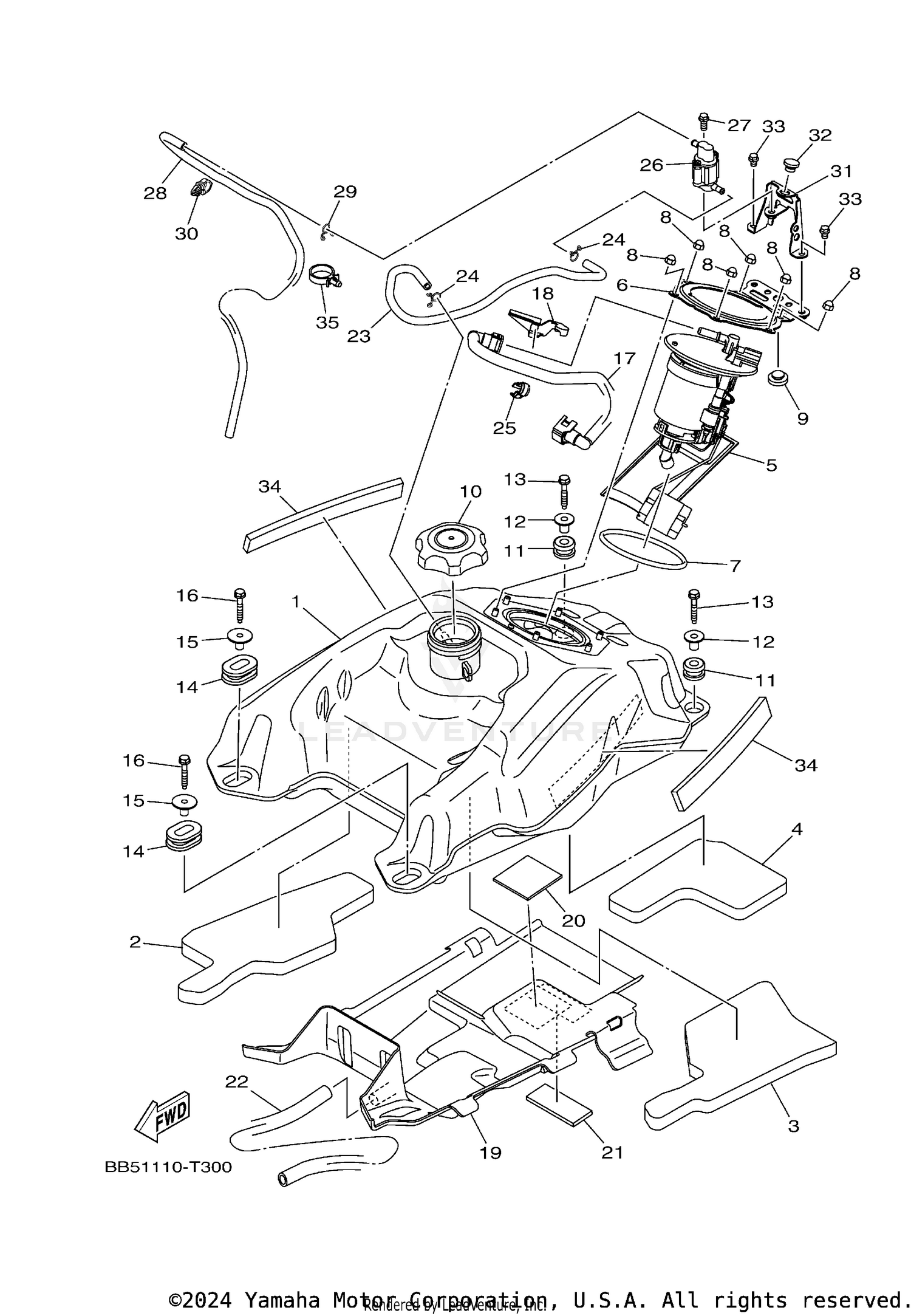

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BB5-F4110-01-00
|
$227.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR 3
BB5-F172S-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
INSULATOR 4
BB5-F173S-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
INSULATOR 5
BB5-F174S-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUEL PUMP COMP.
BB5-13907-03-00
Superseded by DD5-13907-00-00
|
$749.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, FUEL PUMP
BB5-24491-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1S3-24486-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, CROWN
95302-06800-00
Superseded by 95380-06800-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, MAIN STAND
128-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY
BB5-24610-00-00
Superseded by BKP-24610-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-066J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-06883-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-07021-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06883-00
|
$1.55 | ||
|
Unavailable |
|||
|
#17
PIPE, FUEL 1
BB5-13971-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-14004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, PLATE 1
BB5-F414H-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
5HP-2174Y-00-00
Superseded by 1B2-F174Y-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, RUBBER 1
BB5-21485-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (L700)
90445-19005-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE 2
BB5-F4312-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLAMP
90464-15065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE JOINT ASSY
BB5-24380-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE DEEP RE
95E32-06014-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE
90445-095K5-00
Superseded by 90699-50135-00
|
$25.99 | ||
|
Unavailable |
|||
|
#29
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#30
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
STAY
BB5-F4216-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG
90338-11125-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#34
DAMPER, PLATE
90520-08001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-24230-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
