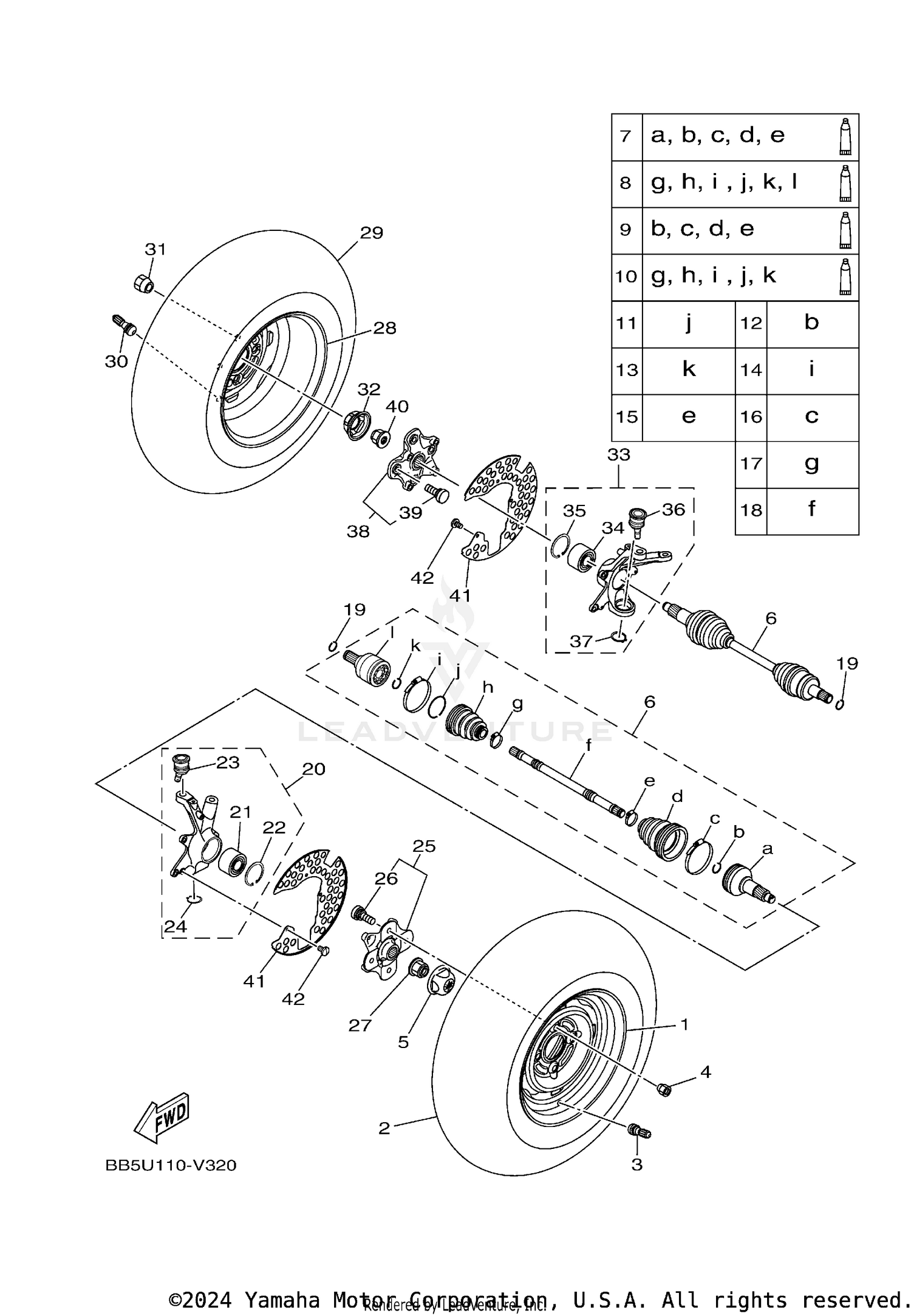

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
B16-F5180-00-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT25X8-12 CU905 4PR TL)
94108-12823-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10022-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
1HP-F512A-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRIVE SHAFT ASSY
B5R-2518F-01-00
|
$249.99 | ||
|
Unavailable |
|||
|
#7
. .BALL JOINT SET
28P-2510F-05-00
|
$547.99 | ||
|
Unavailable |
|||
|
#8
. .DOUBLE OFF SET JOINT
B5R-2510J-01-00
|
$207.99 | ||
|
Unavailable |
|||
|
#9
. .BOOT SET (BALL JOINT)
28P-2510G-02-00
|
$64.99 | ||
|
Unavailable |
|||
|
#10
. .BOOT SET(DOUBLE OFFSET JOINT
B5R-2510H-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
4S1-2512H-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
3B4-2512H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SNAP RING
2HR-2512J-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT BAND
4S1-2511G-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT BAND (SMALL)
28P-2512G-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT BAND(DOUBLE OFFSET JOINT)
28P-2511H-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
. .BOOT BAND (SMALL)
B5R-2512G-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
. .SHAFT
B5R-2511E-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93450-22119-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STEERING KNUCKLE ASSY (LEFT)
BB5-F3501-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93305-00602-00
|
$110.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CIRCLIP
99009-55500-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HUB ASSY 2
B16-F510D-02-00
Superseded by B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#26
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-20016-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WHEEL COMP.
B16-F5180-00-00
|
$225.99 | ||
|
Unavailable |
|||
|
#29
TIRE (AT25X8-12 CU905 4PR TL)
94108-12823-00
|
$157.99 | ||
|
Unavailable |
|||
|
#30
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
NUT
90179-10022-00
|
$4.10 | ||
|
Unavailable |
|||
|
#32
CAP, WHEEL
1HP-F512A-00-00
|
$2.30 | ||
|
Unavailable |
|||
|
#33
STEERING KNUCKLE ASSY (RIGHT)
BB5-F3502-00-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING
93305-00602-00
|
$110.99 | ||
|
Unavailable |
|||
|
#35
CIRCLIP
99009-55500-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#37
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
HUB ASSY 2
B16-F510D-02-00
Superseded by B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#39
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Unavailable |
|||
|
#40
NUT
90179-20016-00
|
$12.99 | ||
|
Unavailable |
|||
|
#41
RING, WHEEL 1
BB5-F514A-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, BIND
98902-06010-00
Superseded by 98980-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
